HCD-RV20/RV50/RV60

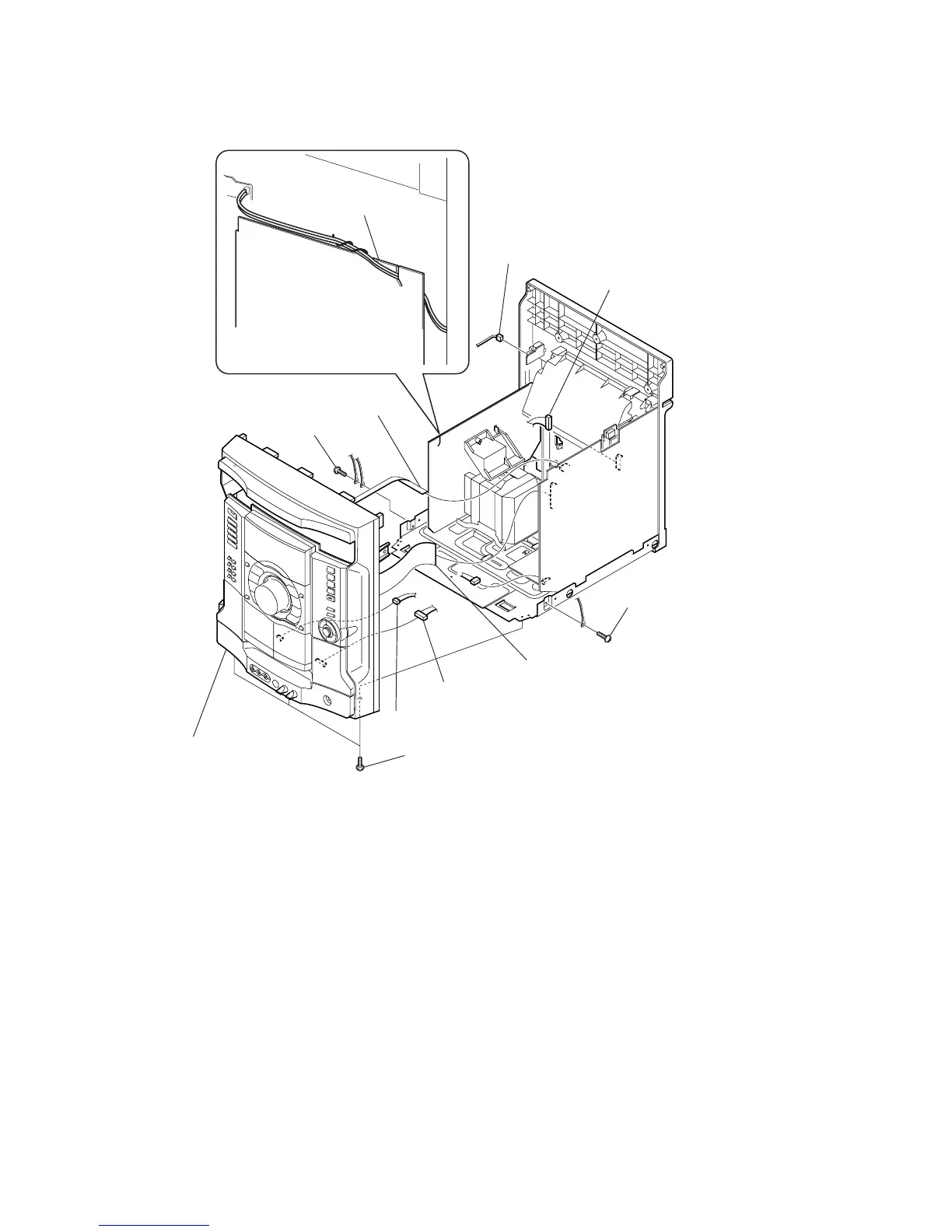

2-4. FRONT PANEL SECTION
1
CN003
2
CN304
(flat type)
5
connector
6
connector
4
CN308
3
CN311
(flat type)
TRANS board
9
three screws (+BVTP 3
×
8
)
0
front panel section
8
screw
(+BVTP 3
×
8
)
7
screw
(+BVTP 3
×
8)
