Sony HCD-RV50 - Board Removal Procedures

11
HCD-RV20/RV50/RV60

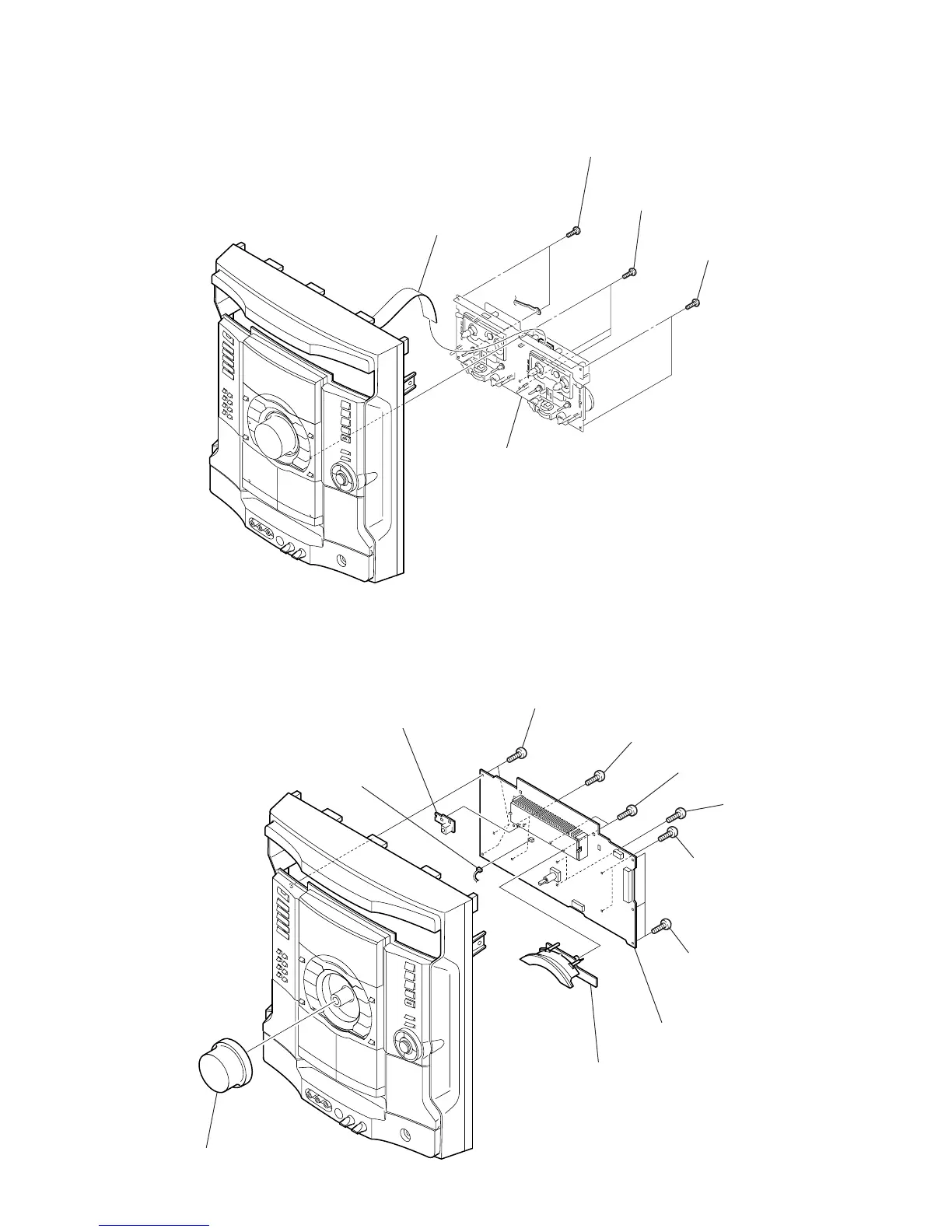

2-5. TAPE MECHANISM DECK
2 two screws
(+BVTP 2.6
× 8)
4 two screws
(+BVTP 2.6 × 8
)
3 three screws
(+BVTP 2.6
× 8)
5 tape mechanism deck
1 connector
2-6. PANEL BOARD, 1 STREAM LED BOARD, 6 STREAM LED BOARD, REMOTE BOARD
1 volume knob
7 PANEL board
9 1 STREAM LED board (RV20)
6 STREAM LED board (RV50/RV60)
qa REMOTE board
0 CN607
2 three screws
(+BVTP 2.6
× 8)
3 two screws
(+BVTP 2.6
× 8)
4 two screws
(+BVTP 2.6
× 8
)
8 two screws
(+BVTP 2.6
× 8)
6 two screws
(+BVTP 2.6
× 8)
5 three screws
(+BVTP 2.6
× 8)
