HCD-RV20/RV50/R
V60

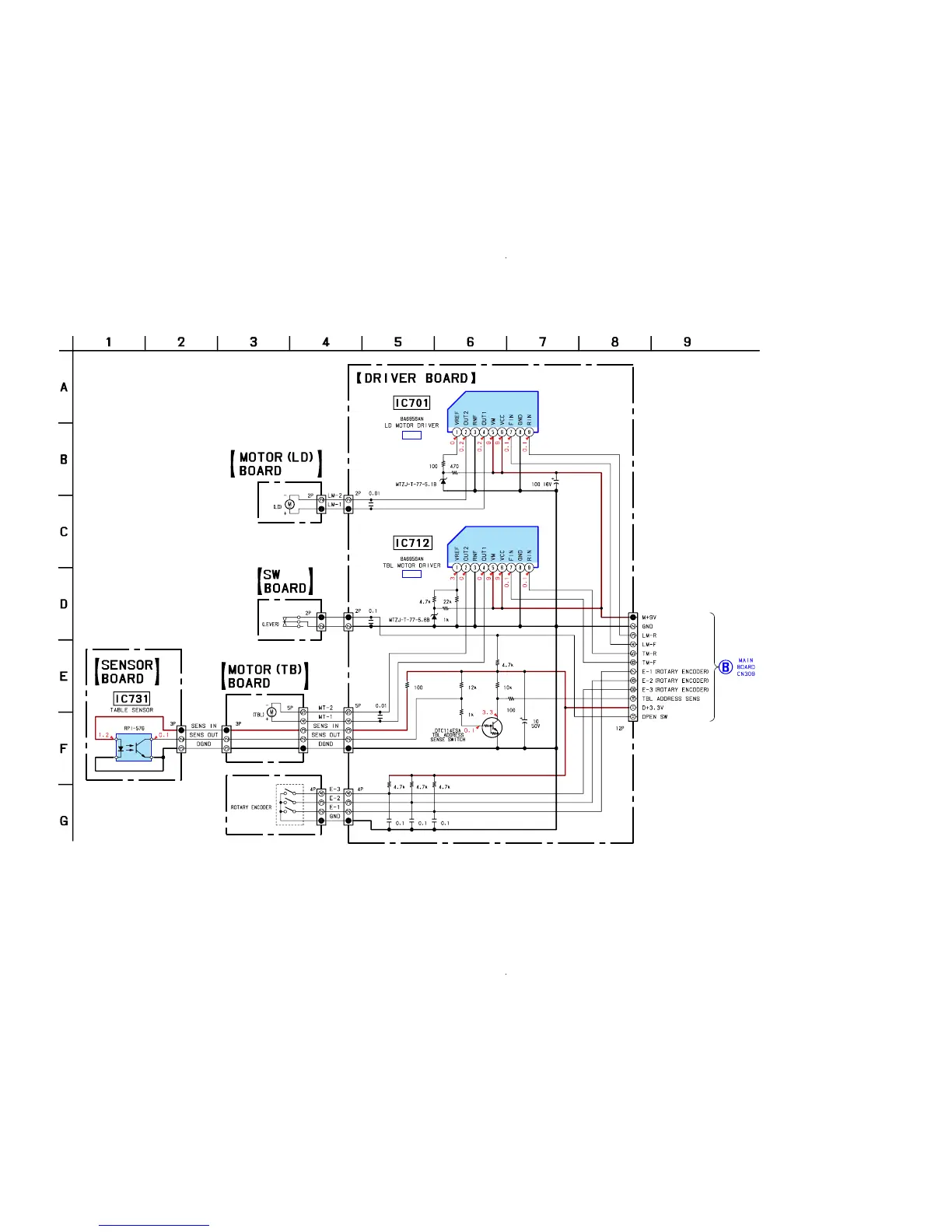

3-6. SCHEMA
TIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 44 for IC Block Diagrams.
IC B/D
IC B/D
R751
C752
CN705
CN704
CN721
CN751
C751
IC701
IC712
R701
D701
R713
R711
D711
R723
R721
R722
C735
C736
C737
R735
R733
R731
C731
Q731
C741
CN702
CN703
CN701
RE701
M741
M751
S751
IC731
CN731
CN741
CN742
CN751
C715
R702
R712
R732
R734
(Page 31)
22
24
Table of Contents
Table of Contents
4
1 General
5
2 Disassembly
7
Case (Top)
7
CD Door
7
CD Mechanism Block
7
Front Panel Section
7
Tape Mechanism Deck
7
Panel Board, 1 Stream Led Board, 6 Stream Led Board, Remote Board
11
Jack Board
12
Back Panel Section
12
Main Board
13
Power Amp Board
13
Video Board, SW Board, Driver Board
14
CD Block Assy
14
Sensor Board
15
Motor (TB) Board
15
Motor (LD) Board
16
BD Board
16
3 Diagrams
17
IC Pin Description
17
Circuit Boards Location
19
Printed Wiring Board -CD Mechanism Section (1/2)
20
Schematic Diagram –CD Mechanism Section (1/2)
21
Printed Wiring Boards -CD Mechanism Section (2/2)
22
Schematic Diagram -CD Mechanism Section (2/2)
23
Printed Wiring Board -Video Section
24
Schematic Diagram -Video Section (1/2)
26
Schematic Diagram –Video Section (2/2)
27
Printed Wiring Board –Main Section
28
Schematic Diagram -Main Section (1/3)
29
Schematic Diagram -Main Section (2/3)
30
Schematic Diagram -Main Section (3/3)
31
Printed Wiring Boards –Panel Section
32
Schematic Diagram -Panel Section
33
Printed Wiring Boards –Jack Section
34
Schematic Diagram -Jack Section
35
Printed Wiring Board -Power Amp Section
36
Schematic Diagram -Power Amp Section (1/2)
37
Schematic Diagram -Power Amp Section (2/2)
38
Printed Wiring Board -Transformer Section (HCD-RV20)
39
Printed Wiring Board Transformer Section (HCD-RV50)
40
Printed Wiring Board -Transformer Section (HCD-RV60)
41
Schematic Diagram -Transformer Section
42
IC Block Diagrams
43
4 Exploded Views
46
Main Section
46
Front Panel Section (1)
47
Front Panel Section (2)
48
Front Panel Section (3)
49
Main Board Section
50
CD Mechanism Deck Section (1)
51
CD Mechanism Deck Section (2)
52
Optical Pick-Up Section
53
5 Electrical Parts List
54
Remote Sensor
69
E Model Service Manual Supplement-1
74
Test Mode
75
Mechanical Adjustments
78
Electrical Adjustments
79
Block Diagram -CD/Video Section
81
Block Diagram -Tuner/Tape/Panel Section
82
Block Diagram -Amp/Power Supply Section
83
4
