67
HCD-RV7/RV8

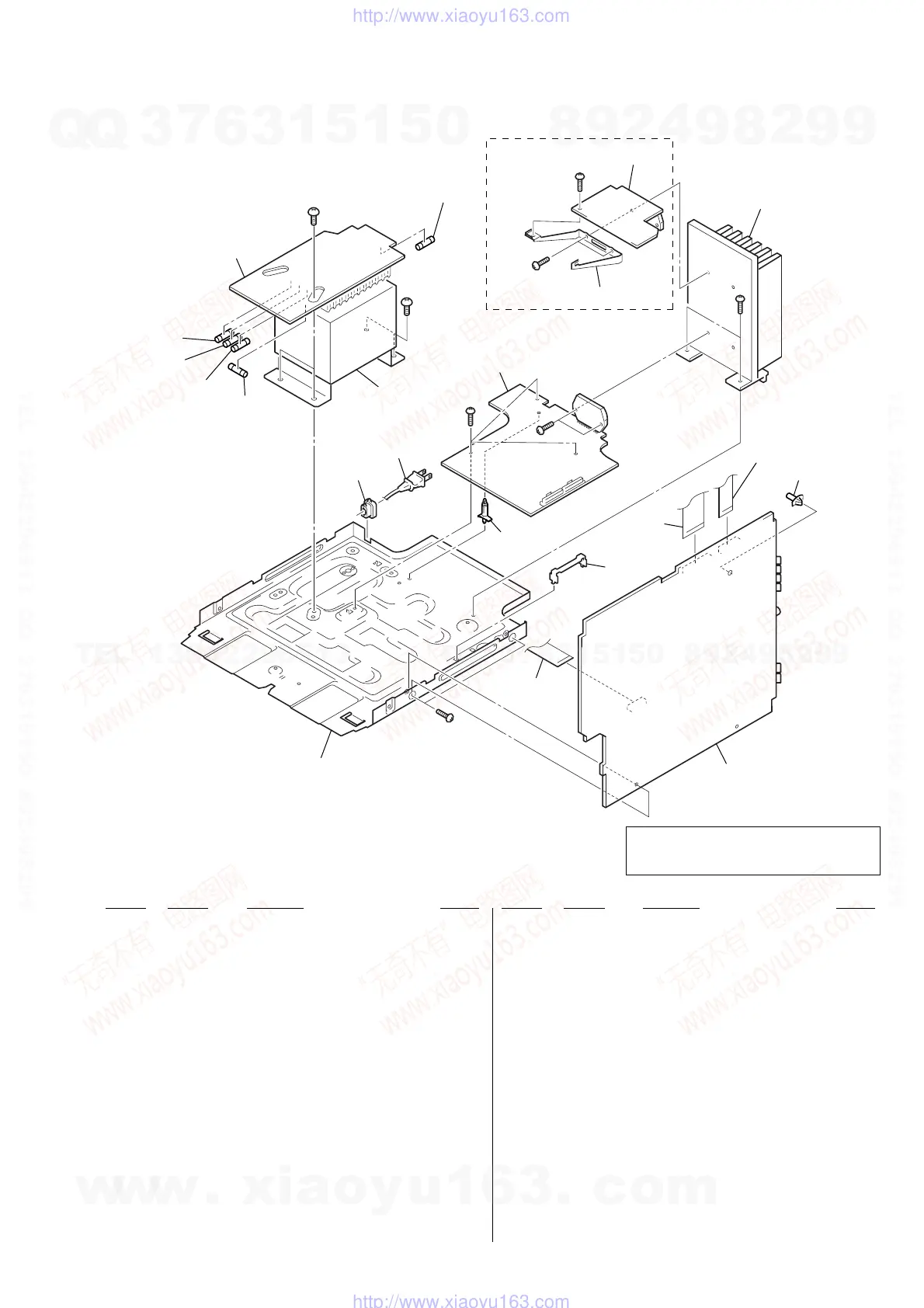

8-3. CHASSIS SECTION
#3
#3
#1
#1
#4
#1
not supplied
#1
#4
F971
101
105
111
104
107
109
108
106
110
103
102
T910
not supplied
F976
F974
F975
F977
not supplie
not supplied
(HCD-RV8)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-683-539-11 MAIN TRANS BOARD
* 102 3-703-244-00 BUSHING (2104), CORD (EA, SP, MY)
102 3-703-571-11 BUSHING (S) (4516), CORD (E, TH)
0103 1-777-071-53 CORD, POWER (EA, SP, MY)
0103 1-791-901-12 CORD, POWER (E, TH)
104 4-943-687-01 HOLDER, PC BOARD
105 A-4730-027-A POWER BOARD, COMPLETE (HCD-RV7)
105 A-4730-029-A POWER BOARD, COMPLETE (HCD-RV8)
106 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
* 107 4-988-533-01 HOLDER, PWB
108 1-773-127-11 WIRE (FLAT TYPE) (19 CORE)
109 1-769-945-11 WIRE (FLAT TYPE) (11 CORE)
110 A-4728-465-A MAIN BOARD, COMPLETE
(HCD-RV7: E, SP, MY, TH)
110 A-4728-483-A MAIN BOARD, COMPLETE
(HCD-RV8: E, SP, MY)
110 A-4728-714-A MAIN BOARD, COMPLETE (HCD-RV8: EA)
110 A-4728-752-A MAIN BOARD, COMPLETE (HCD-RV7: EA)
111 A-4727-581-A SUB WOOFER BOARD, COMPLETE (HCD-RV8)
0F971 1-533-472-11 FUSE, GLASS TUBE (DIA. 5) (T5AL/250V)
(HCD-RV8)
0F971 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
(HCD-RV7)
0F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0F976 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0F977 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8AL/250V)
0T910 1-437-586-11 TRANSFORMER, POWER
(HCD-RV7: E, SP, MY, TH)
0T910 1-437-587-11 TRANSFORMER, POWER
(HCD-RV8: E, SP, MY)
0T910 1-437-749-11 TRANSFORMER, POWER (HCD-RV7: EA)
0T910 1-437-750-11 TRANSFORMER, POWER (HCD-RV8: EA)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
