Sony HCD-RX80 - DISASSEMBLY; CASE; FRONT PANEL SECTION

– 22 –
MAIN BOARD
(Page 24)
TRAY SECTION
(Page 25)
TAPE MECHANISM
DECK SECTION
(Page 23)
AUDIO BOARD
(Page 27)
CD MECHANISM
DECK SECTION
(Page 23)
BASE UNIT
(Page 24)
BD BOARD
(Page 26)
CAPSTAN MOTOR
(Page 27)
OPTICAL
PICK-UP
(Page 26)
SLED
MOTOR
(Page 26)
FRONT PANEL
SECTION
(Page 22)
CASE
(Page 22)
• This set can be disassembled in the order shown below.
SECTION 2
DISASSEMBLY

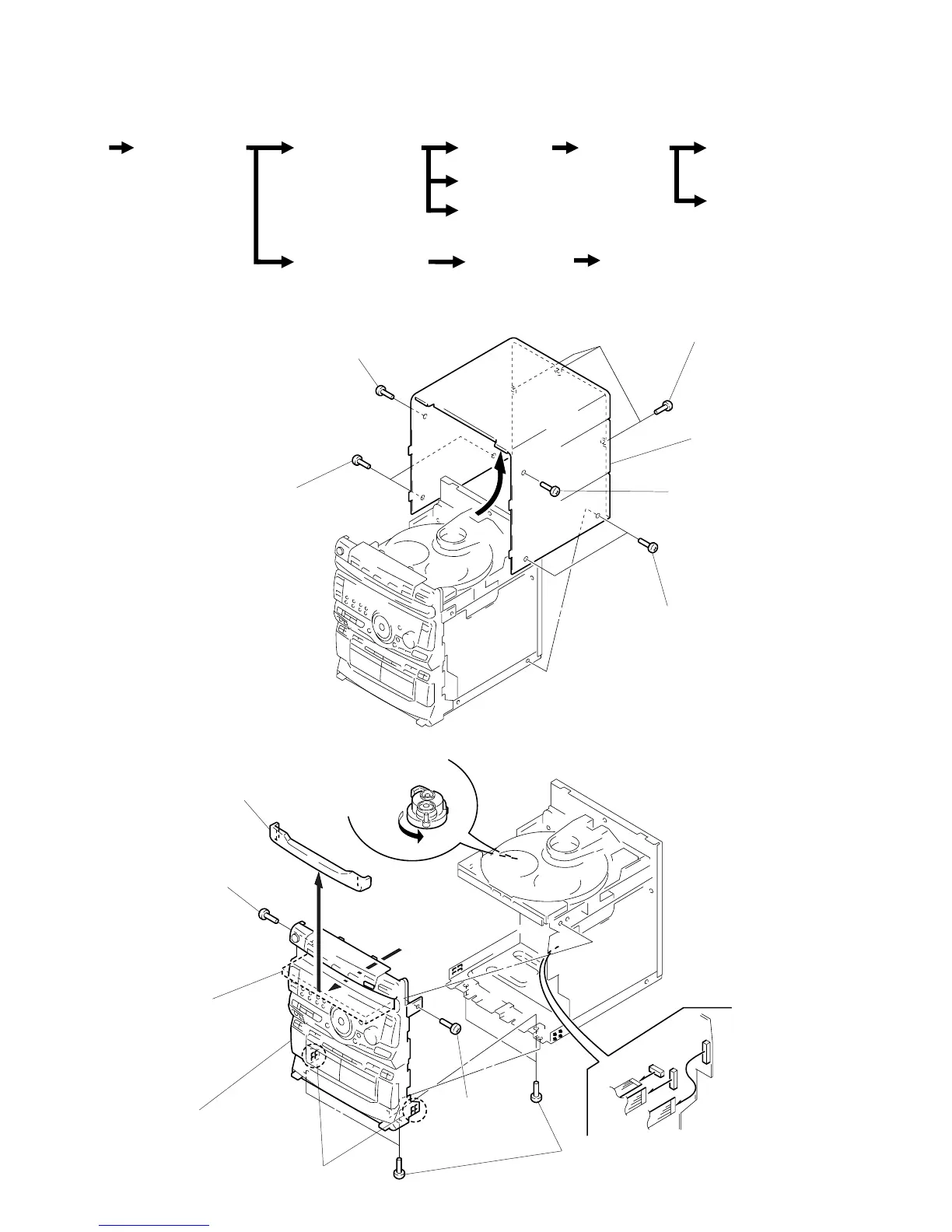

FRONT PANEL SECTION
3 loading panel
4 three flat wires
(CN102, 205, 206)
5 screw
(BVTP 3 × 10)
6 four screws
(BVTT 3 × 6)
7 two claws
8 front panel section
2 Pull the tray
1 Turn the cam to
direction of the
arrow A .
Note: Follow the disassembly procedure in the numerical order given.
CASE
3 three screws
(BVTT 3 × 6)
4 Remove the case to
direction of the arrow.
2 screw
(case 3 TP2)
(3 × 10)
1 two screws
(case 3 TP2)
(3 × 8)
2 screw (case 3 TP2)
(3 × 10)
1 two screws
(case 3 TP2)
(3 × 8)
A
5 screw
(BVTP 3 × 10)
