Sony HCD-VX555J - Page 11

11
HCD-VX555/VX555J

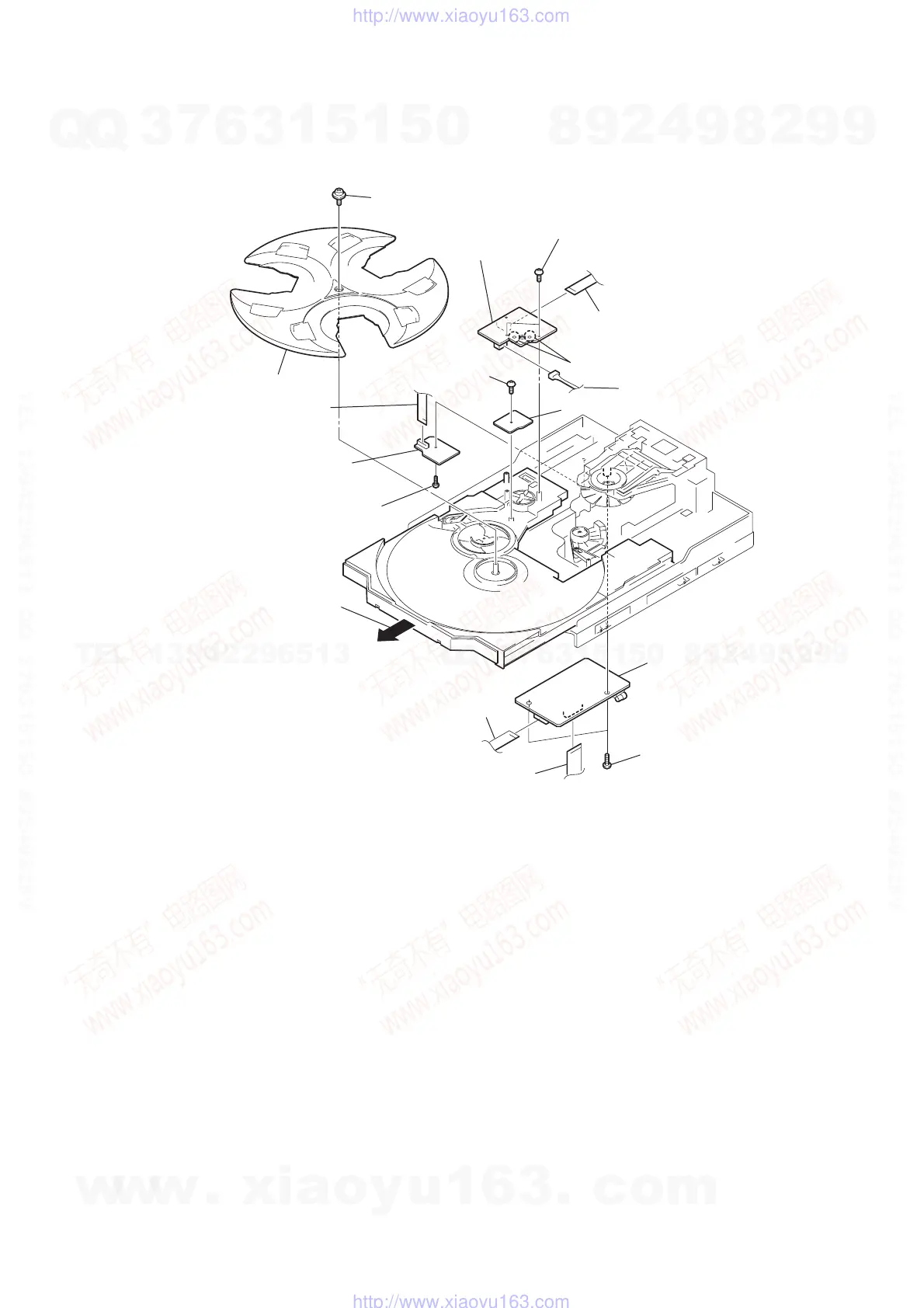

2-9. VIDEO BOARD, DRIVER BOARD, MOTER BOARD AND ADDRESS SENSOR BOARD
9 Pull-out the Table.
4 Two screws (+BVTP 2.6 × 8)
q; Screw (+PTPWH 2.6 × 8)
qa Tray
1 Screw (+BVTP 2.6 × 8)
qs Screw (+BVTP 2.6 × 8)
6 Flat type wire (8 core)
3 Flat type wire
(8 core)
8 MOTOR board
qd ADDRES SENSOR board
qf Flat type wire (13 core)
qg Flat type wire (25 core)
qh Two Screws
(+BVTP 2.6
× 8)
qj VIDEO board
2 DRIVER board
5 Remove the two solderings of motor.
7 Connector
