10
HCD-VX555/VX555J

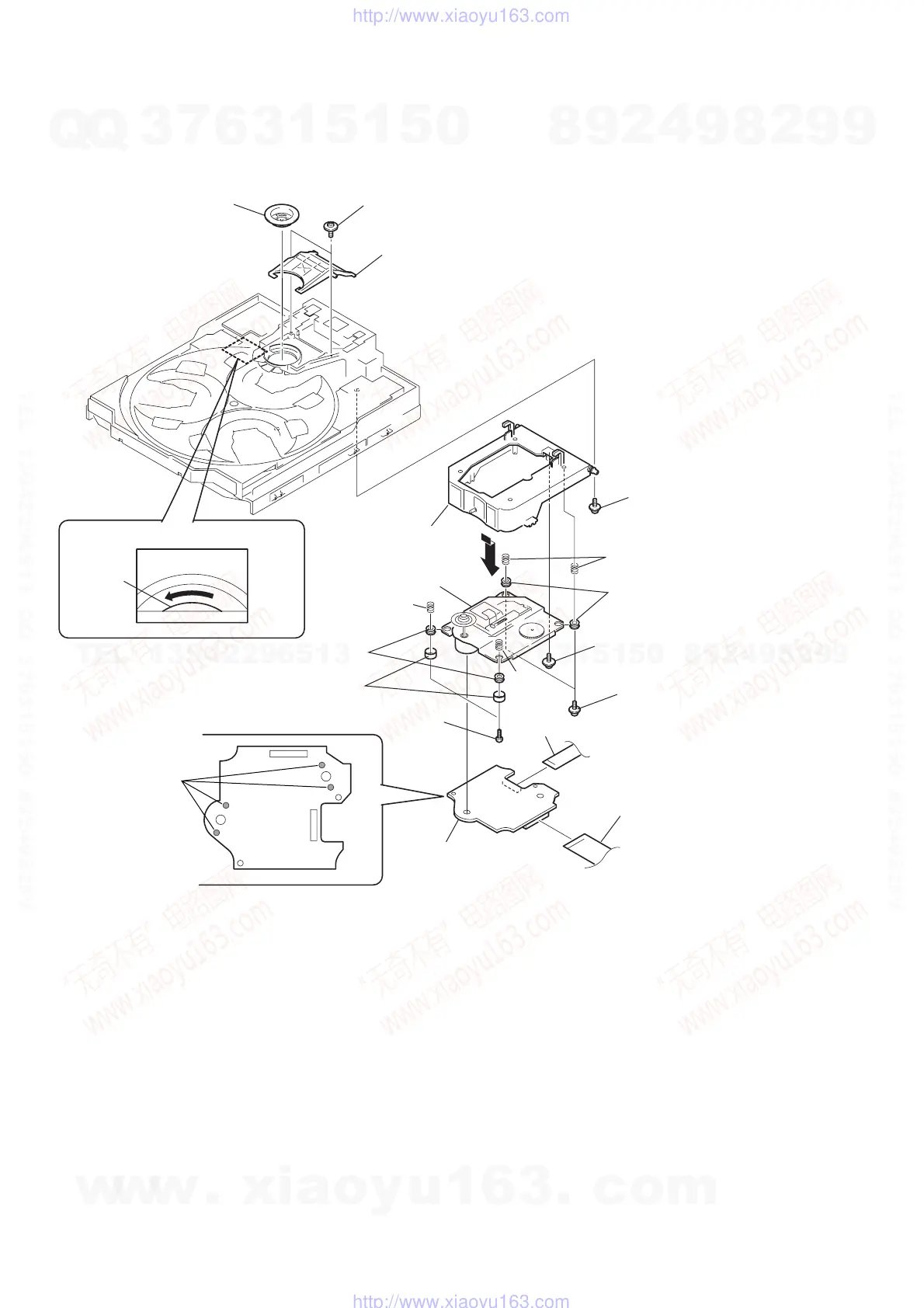

2-8. BASE UNIT
4 Turn the pulley to the direction of arrow.
pulley
Base unit
qg
qd Two screws (+PTPWH M2.6
)
5 Screw (+PTPWH M2.6)
1 Pulley(B)(BU-30), chucking
2 Two Screws (+PTPWH M2.6)
3 Lever (lifter)
qf Screw (DIA. 12)
qa Two screws (+BVTP 2.6 × 8)
q; BD board
qh Two insulators
6 Holder assy
qh Two insulators
qs Two stoppers
7 Flat type wire (25 core)
8 Flat type wire (16 core)
9 Remove the solder
(four portions).
Spring (insulator), coil
Spring (insulator),
coil
Spring
(insulator),
coil
