Sony HCD-VX99 - Page 10

10
4 Three screws (+BVTP 3 × 8)
6 Two screws (+BVTP 3 × 8)
7 Heat sink
3 Two screws (+BVTP 3 × 16)
1 Two screws (+BVTP 3 × 8
)
2 Main board
Connector(CN502)
Connector
(CN503)
5Power AMP board
6 Screw (+PS 2.6 × 5)
3 Screw (+PS 2.6 × 5)
2Leaf SW board
1 Five claws
4 Head (A) board
5 Head (B) board
7 Remove the four solderings.

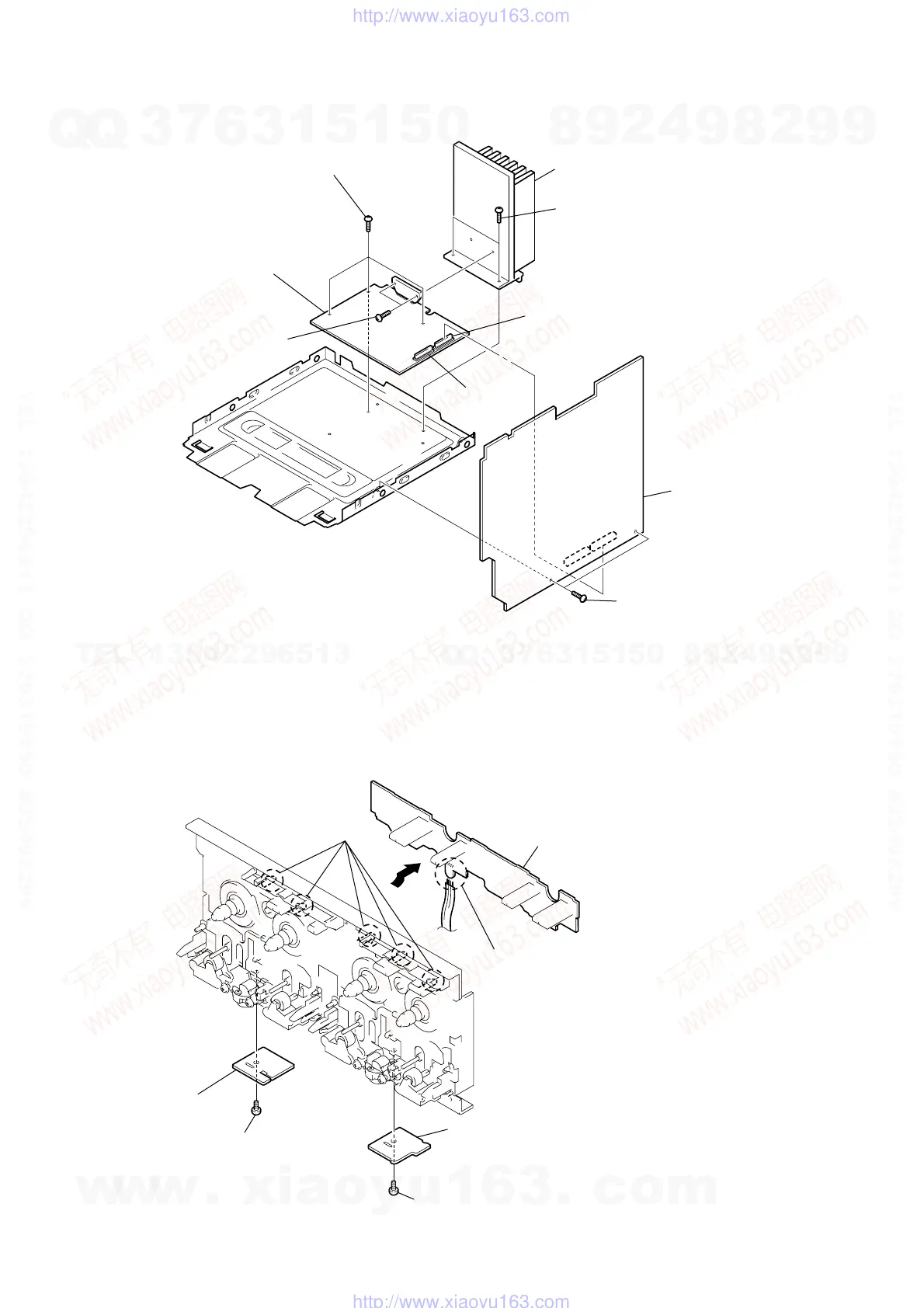

3-7. MAIN BOARD AND AMP BOARD
3-8. LEAF SW BOARD, HEAD (A) BOARD AND HEAD (B) BOARD
