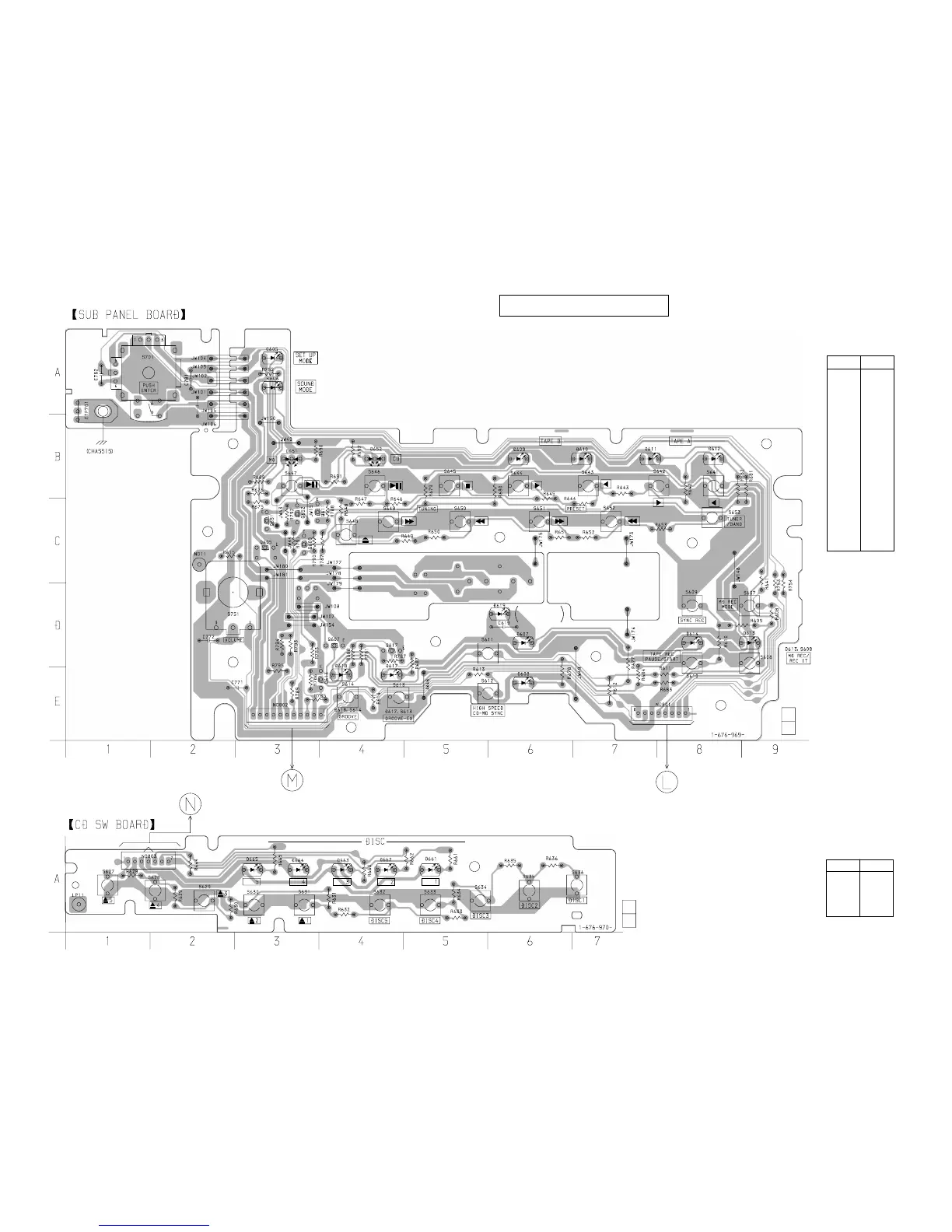

7-23. PRINTED WIRING BOARD – SWITCH SECTION –
Ref. No. Location
D605 A-3
D606 A-3
D609 B-6
D610 B-7
D611 B-7
D612 B-8
D613 D-9
D614 D-8
D617 E-4
D618 E-4
D619 D-6
D651 B-3
D652 B-4
Q605 C-3
Q607 D-4
Q609 C-3
Q611 C-3
Q613 E-4
Q617 D-4
Q651 C-3
Q652 C-3
• Semiconductor
Location
Ref. No. Location
D661 A-5
D662 A-4
D663 A-4
D664 A-3
D665 A-3
• Semiconductor
Location
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
• See page 48 for Circuit Boards Location.
