HCD-IS10
3232
HCD-IS10
• Note for Printed Wiring Boards and Schematic Diagrams
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
•
f : internal component.
• C : panel designation.
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
– DMB-IVHD Board –
no mark : DVD PLAY
– Other Boards –
no mark : TUNER (FM/AM)
(): DVD PLAY
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J : CD PLAY
c : DVD PLAY
F : AUDIO
E : VIDEO
f : TUNER (FM/AM)
N : MIC INPUT
• Abbreviation
AR : Argentina model
AUS: Australian model
CH : Chinese model
CND : Canadian model
E32 : Latin America models except Argentina
EA : Saudi Arabia model
RU : Russian model
SP : Singapore model
TH : Thai model
TW : Taiwan model

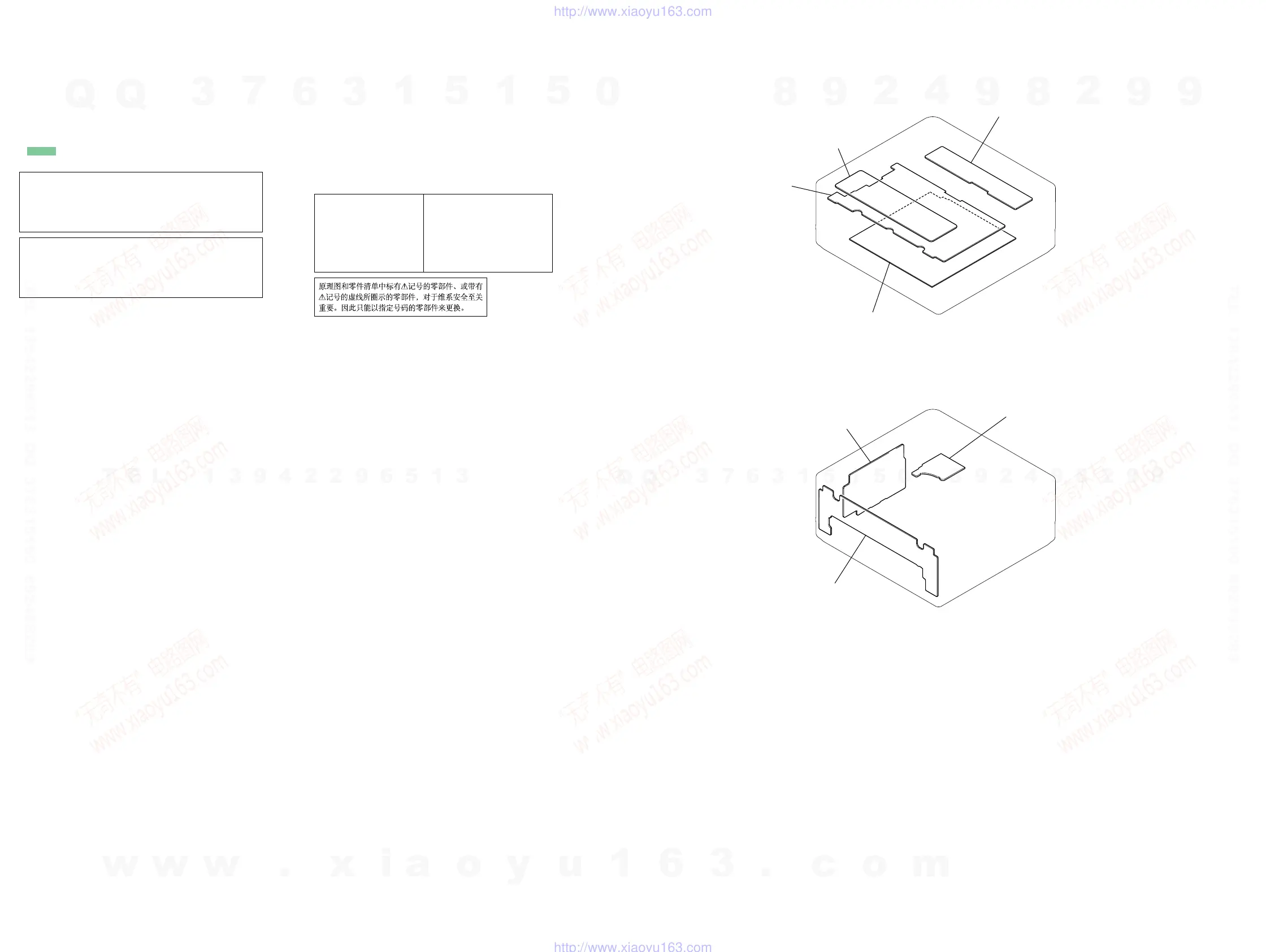

• Circuit Boards Location
Note on Printed Wiring Board:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
f
: internal component.
• : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• DMB-IVHD board is multi-layer printed board.
However, the patterns of intermediate layers have not been
included in diagrams.
Caution:
Pattern face side: Parts on the pattern face side seen from
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
MAIN board
TOUCH board
DMB-IVHD board
IO board
FL board
REG board
MS-214 boar
Ver. 1.1
