HCD-IS10

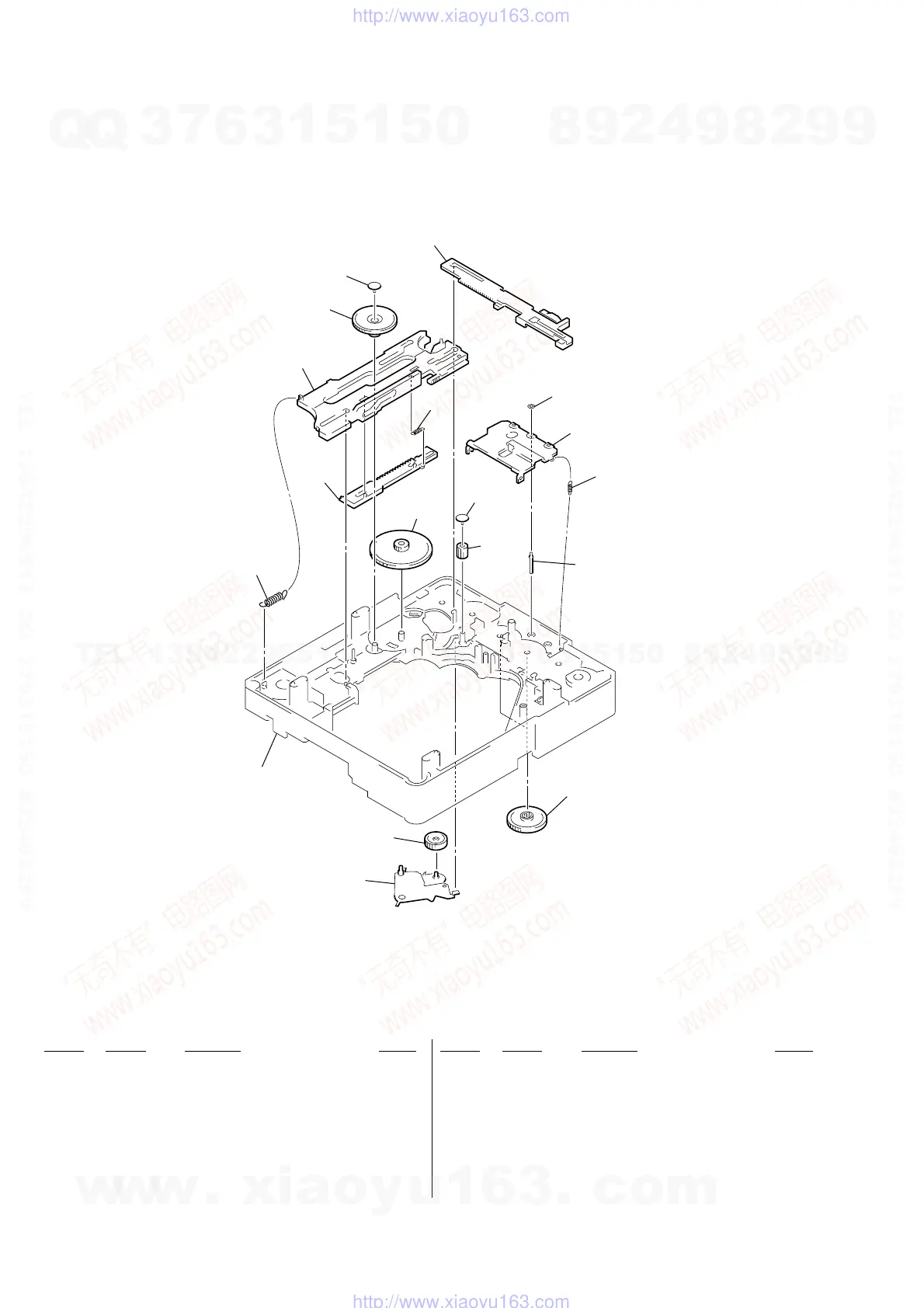

7-8. MECHANISM DECK SECTION-4
(CDM86A-DVBU101)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
701 4-245-643-01 GEAR (IDL-C)
702 X-4955-483-1 LEVER (GEAR LOADING) ASSY
703 2-515-536-01 SPRING (DIR), TENSION COIL
704 4-245-642-01 GEAR (IDL-B)
705 4-245-814-01 LEVER (DIR FIRST)
706 2-515-534-01 SPRING (DIR BACK), TENSION COIL
707 4-245-660-11 LEVER (DIR)
708 4-245-641-01 GEAR (IDL-A)
not supplied
not supplied
701
702
715
705
703
707
708
709
704
706
711
712
713
714
709
710
709 4-245-640-01 GEAR (CAP)
710 4-245-628-01 LEVER (BU LOCK)
711 4-248-206-01 WASHER (3-1-0.4)
712 4-245-624-01 LEVER, CLOSE
713 4-245-635-01 SPR-E LEVER CLOSE
714 4-245-629-01 GEAR (BU LOCK)
715 4-245-644-01 GEAR (IDL-D)
