13
US

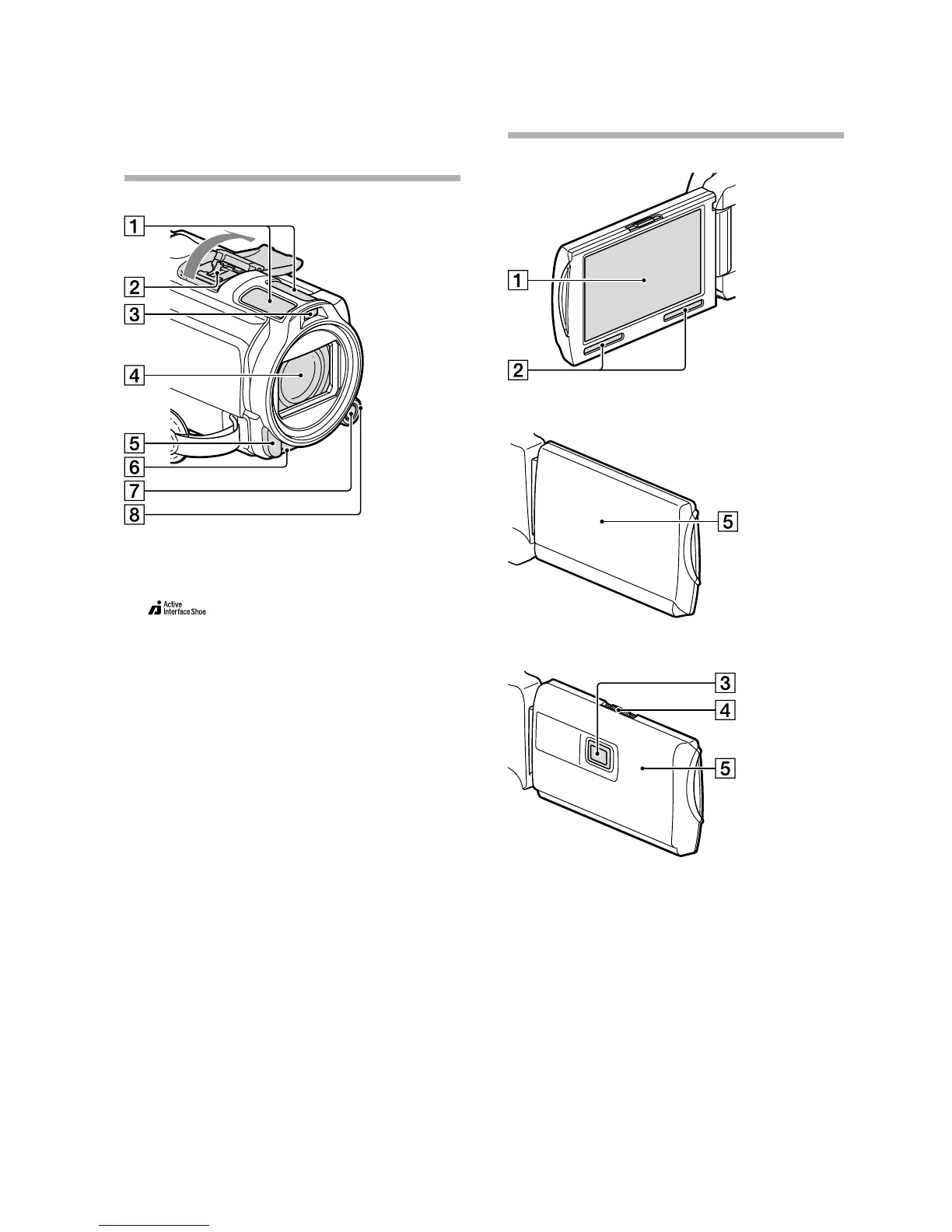

Parts and controls
Figures in ( ) are reference pages.
Built-in microphone
Active Interface Shoe
Flash/Video light
Lens (Carl Zeiss lens)
Remote sensor/Infrared port
Camera recording lamp (72)
The camera recording lamp lights up in red
during recording. The lamp flashes when the
remaining recording media capacity or battery
power is low.
MANUAL button (43)
MANUAL dial (43)
HDR-CX760V
HDR-PJ710/PJ710V/PJ760/PJ760V
LCD screen/Touch panel (22, 24)
If you rotate the LCD panel 180 degrees, you
can close the LCD panel with the LCD screen
facing out. This is convenient during playback
operations.
Speakers
Projector lens (52)
PROJECTOR FOCUS lever (52)
GPS antenna (HDR-CX760V/PJ710V/
PJ760V)
A GPS antenna is located in the LCD panel.
To Next Page
