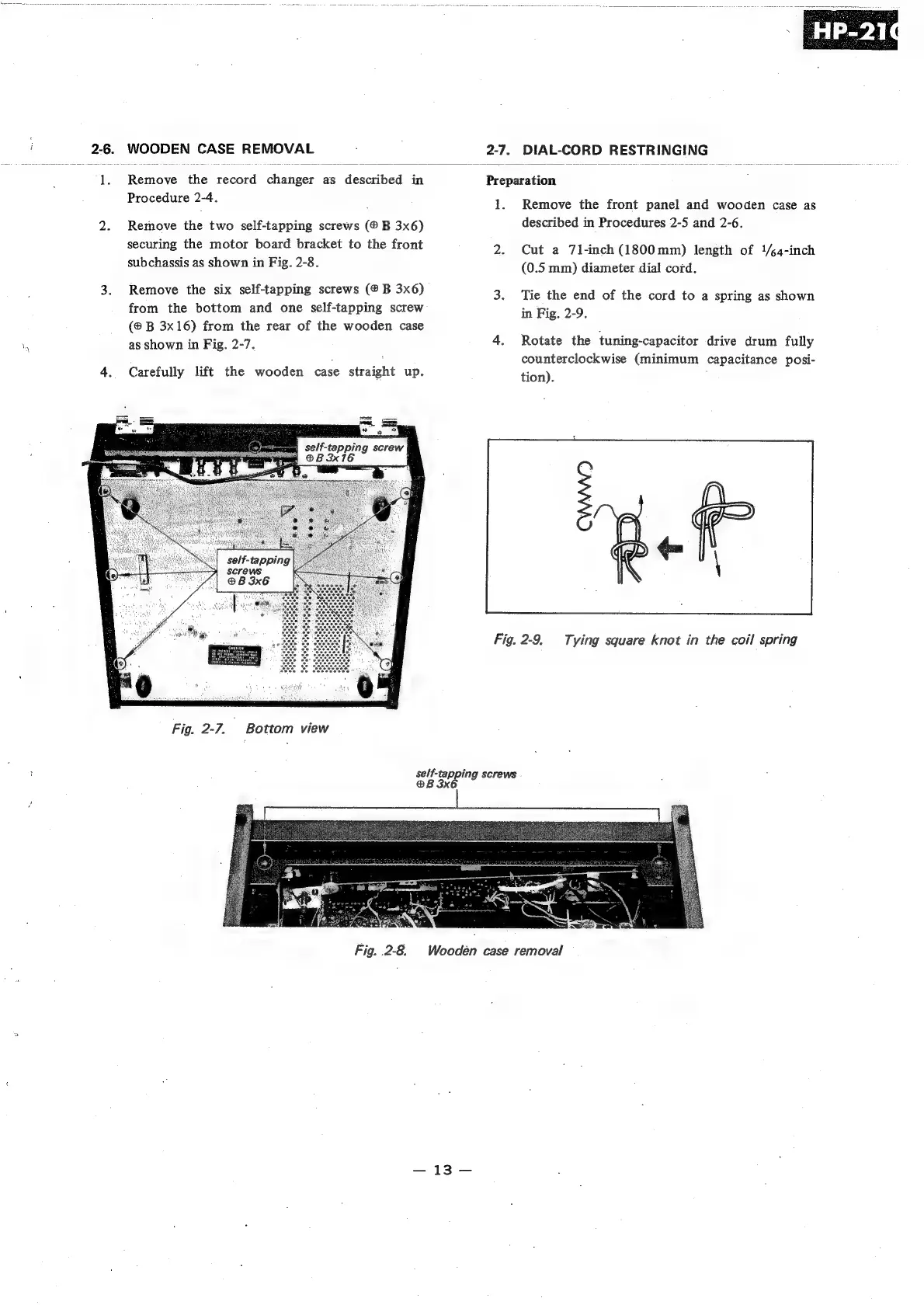

2-6. WOODEN CASE REMOVAL
1.
Remove the record changer as described in
Procedure 2-4.
Remove the two self-tapping screws (® B 3x6)
securing the motor board bracket to the front
subchassis as shown in Fig. 2-8.
Remove the six self-tapping screws (® B 3x6)
from the bottom and one self-tapping screw
(® B 3x16) from the rear of the wooden case
ie as shown in Fig. 2-7.
Carefully lift the wooden case straight up.
self-tapp
®B 3x16
self-tapping |:
Screws
® B 3x6
2-7. DIAL-CORD RESTRINGING
Preparation
1. Remove the front panel and wooden case as
described in Procedures 2-5 and 2-6.
2. Cut a 71-inch (1800mm) length of 1/64-inch
(0.5 mm) diameter dial cord.
3. Tie the end of the cord to a spring as shown
in Fig. 2-9.
4. Rotate the tuning-capacitor drive drum fully
counterclockwise (minimum capacitance posi-
tion). ;
Fig. 2-9. Tying square knot in the coil spring
Fig. .2-8. _Woodeén case removal
