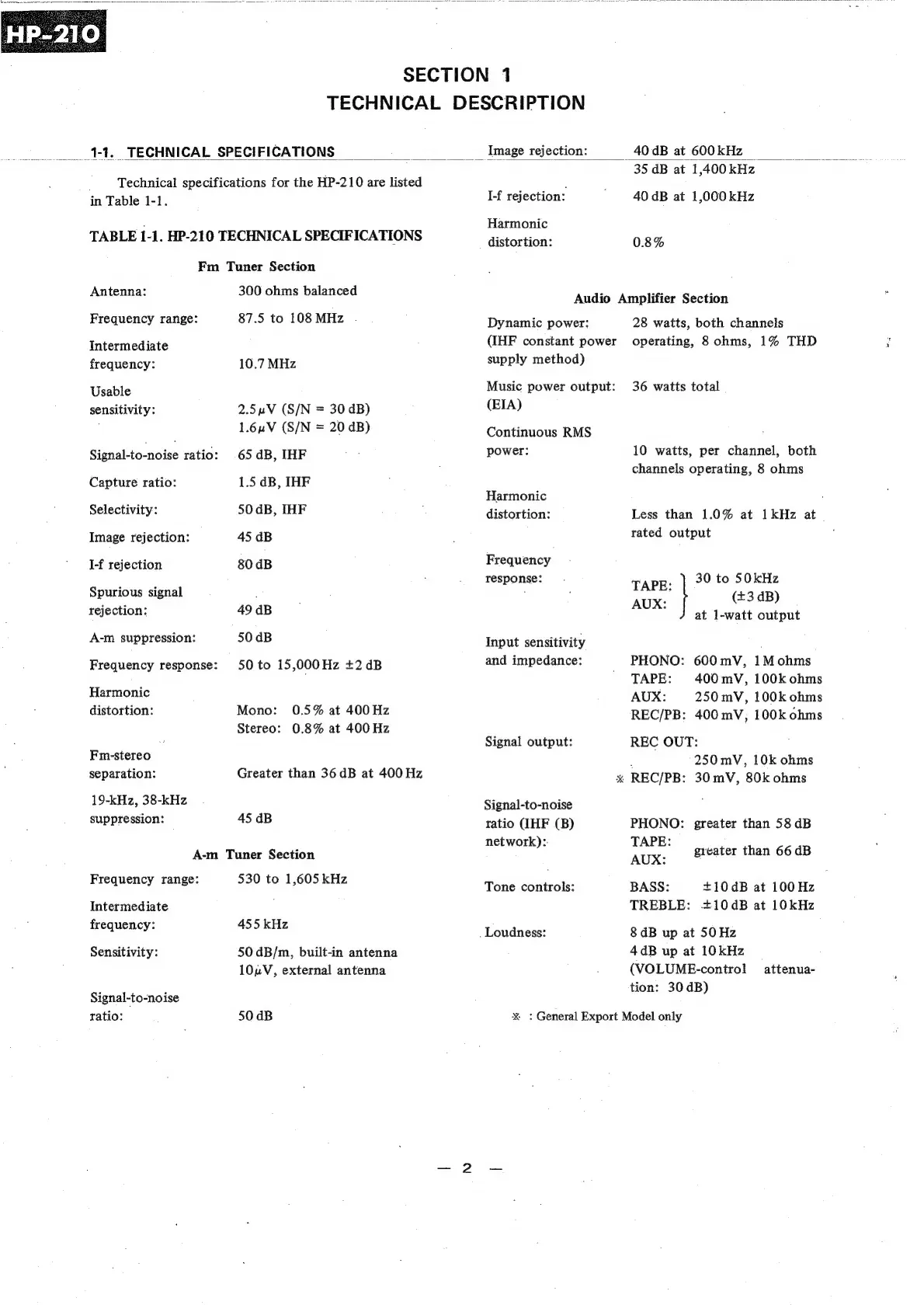

SECTION 1
TECHNICAL DESCRIPTION
1-1, TECHNICAL SPECIFICATIONS
Technical specifications for the HP-210 are listed
in Table 1-1.
TABLE 1-1. HP-210 TECHNICAL SPECIF ICATIONS
Fm Tuner Section
Antenna:
Frequency range:
Intermediate
frequency:
Usable
sensitivity:
Sigtaltecnpise ratio:
Capture ratio:
Selectivity:
Image rejection:
I-f rejection
Spurious signal
rejection:
A-m suppression:
Frequency response:
Harmonic
distortion:
Fm-stereo
separation:
19-kHz, 38-kHz
suppression:
300 ohms balanced
87.5 to 108 MHz
10.7 MHz
2.5uV (S/N = 30 dB)
1.6uV (S/N = 20 dB)
65 dB, IHF
1.5 dB, IHF
50 dB, THF
45 dB
80 dB
49 dB
50 dB
50 to 15,000Hz +2 dB
Mono: 0.5% at 400Hz
Stereo: 0.8% at 400 Hz
Greater than 36 dB at 400 Hz
45 dB
A-m Tuner Section
Frequency range:
Intermediate
frequency:
Sensitivity:
Signal-to-noise
ratio:
$30 to 1,605 kHz
455 kHz
50 dB/m, built-in antenna
10zV, external antenna
50 dB
____ Image rejection: _
_ 40 4B at 600 kHz
I-f rejection:
Harmonic
distortion:
35 dB at 1,400 kHz
40 dB at 1,000 kHz
0.8%
Audio Amplifier Section
Dynamic power:
(IHF constant power
supply method)
Music power output:
(EIA)
Continuous RMS
power:
Harmonic
distortion:
Frequency
response:
Input sensitivity
and impedance:
Signal output:
Signal-to-noise
tatio (IHF (B)
network):
Tone controls:
. Loudness:
28 watts, both channels
operating, 8 ohms, 1% THD
36 watts total
10 watts, per channel, both
channels operating, 8 ohms
Less than 1.0% at 1 kHz at
rated output :
AUX: (+3 dB)
TAPE: | 30 to 50kHz
at 1-watt output
PHONO: 600 mV, 1M ohms
TAPE: 400mV, 100k ohms
AUX: 250 mV, 100k ohms
REC/PB: 400 mV, 100k ohms
REC OUT:
250 mV, 10k ohms
x REC/PB: 30mV, 80k ohms
PHONO: greater than 58 dB
TAPE:
AUX: greater than 66 dB
BASS: +10dB at 100 Hz
TREBLE: +10dB at 10kHz
8 dB up at 50Hz
4dB up at 10kHz
(VOLUME-control
tion: 30 dB)
attenua-
% : General Export Model only
