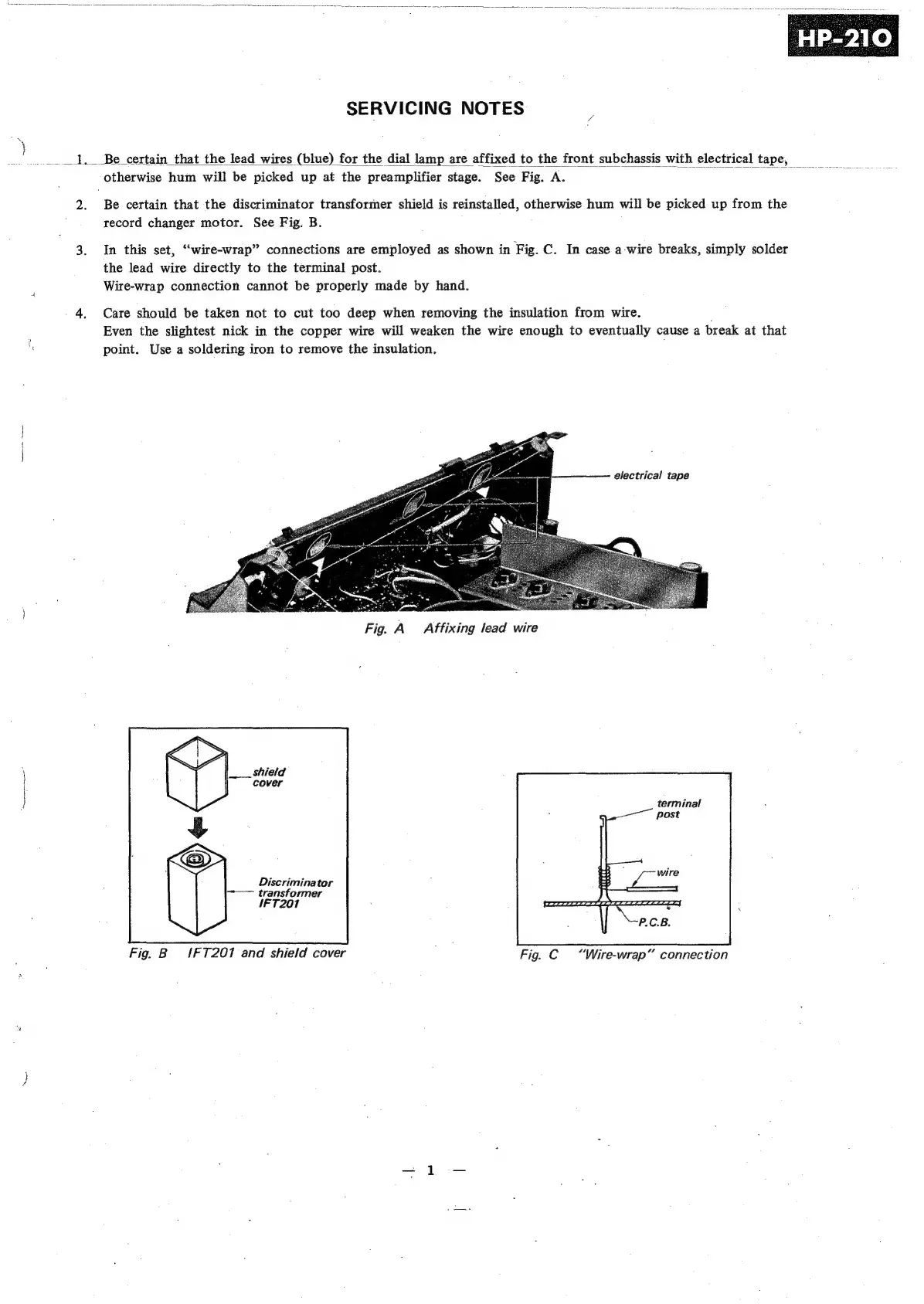

SERVICING
NOTES
__.1,_Be_certain
that
the
lead
wires
(blue)
for
the
dial lamp
are
affixed
to
the
front
subchassis
with
electrical
tape,
_
otherwise
hum
will
be
picked
up
at
the
preamplifier
stage.
See
Fig.
A.
Be
certain
that
the
discriminator
transformer
shield
is
reinstalled,
otherwise
hum
will
be
picked
up
from
the
record
changer
motor.
See
Fig.
B.
In
this
set,
“‘wire-wrap”
connections
are
employed
as
shown
in
Fig.
C.
In
case
a-wire
breaks,
simply
solder
the
lead
wire
directly
to
the
terminal
post.
Wire-wrap
connection
cannot
be
properly
made
by
hand.
Care
should
be
taken
not
to
cut
too
deep
when
removing
the
insulation
from
wire.
Even
the
slightest
nick
in
the
copper
wire
will
weaken
the
wire
enough
to
eventually
cause
a
break
at
that
point.
Use
a
soldering
iron
to
remove
the
insulation.
electrical
tape
Fig.
A
Affixing
lead
wire
shield
cover
terminal
post
Discriminator
--—
transformer
IFT201
Fig.
B
{FT201
and
shield
cover
.
Fig.
C
“Wire-wrap”
connection
