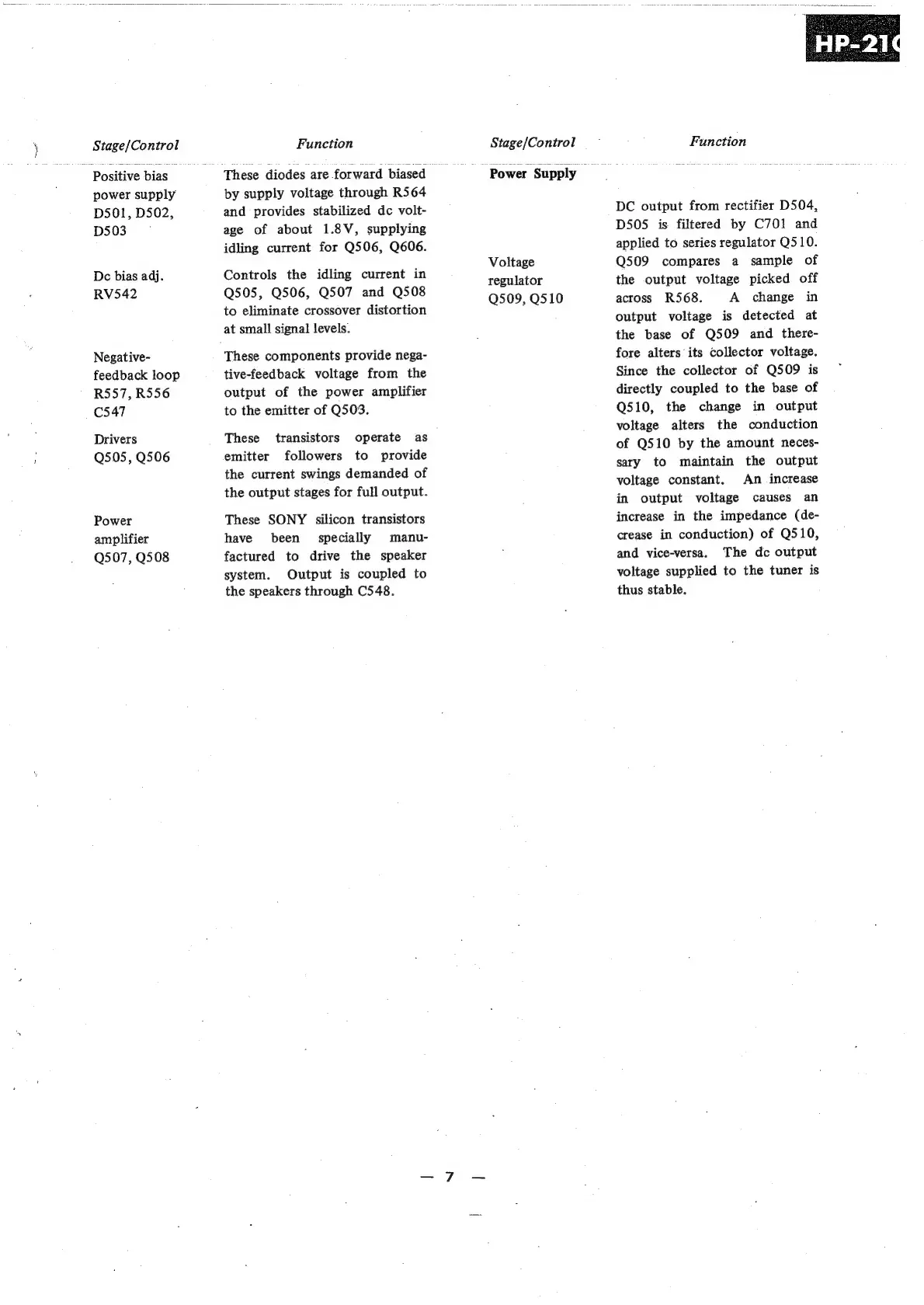

Stage/Control
Positive
bias
power
supply
D501,
D502,
D503
De
bias
adj.
RV542
Negative-
feedback
loop
R557,
R556
C547
Drivers
Q505,
Q506
Power
amplifier
Q507,
Q508
Function
These
diodes
are
forward
biased
by
supply
voltage
through
R564
and
provides
stabilized
dc
volt-
age
of
about
1.8V,
supplying
idling
current
for
Q506,
Q606.
Controls
the
idling
current
in
Q505,
Q506,
Q507
and
Q508
to
eliminate
crossover
distortion
at
small
signal
levels.
These
components
provide
nega-
tive-feedback
voltage
from
the
output
of
the
power
amplifier
to
the
emitter
of
Q503.
These
transistors
operate
as
emitter
followers
to
provide
the
current
swings
demanded
of
the
output
stages
for
full
output.
These
SONY
silicon
transistors
have
been
specially
manu-
factured
to
drive
the
speaker
system.
Output
is
coupled
to
the
speakers
through
C548.
Stage/Control
Power
Supply
Voltage
regulator
Q509,
Q510
Function
DC
output
from
rectifier
D504,
D505
is
filtered
by
C701
and
applied
to
series
regulator
Q510.
Q509
compares
a
sample
of
the
output
voltage
picked
off
across
R568.
A
change
in
output
voltage
is
detected
at
the
base
of
Q509
and
there-
fore
alters
its
collector
voltage.
Since
the
collector
of
Q509
is
directly
coupled
to
the
base
of
Q510,
the
change
in
output
voltage
alters
the
conduction
of
Q510
by
the
amount
neces-
sary
to
maintain
the
output
voltage
constant.
An
increase
in
output
voltage
causes
an
increase
in
the
impedance
(de-
crease
in
conduction)
of
Q510,
and
vice-versa.
The
dc
output
voltage
supplied
to
the
tuner
is
thus
stable.
