Sony HT-BE1 - Printed Wiring Board -Display Section

23 23
HT-BE1/SA-WBE1/SS-BE1
1
A
B
C
D
E
F
234567891011 12 13 14
IC701
R709
LCD701
R713
C701
R714
R701
R702
R710
R712
C707
C705
C706
C708
C703
D704
IC702
D702
D703
CN702
JW703
CN701
JW705
JW701
JW702
JW704

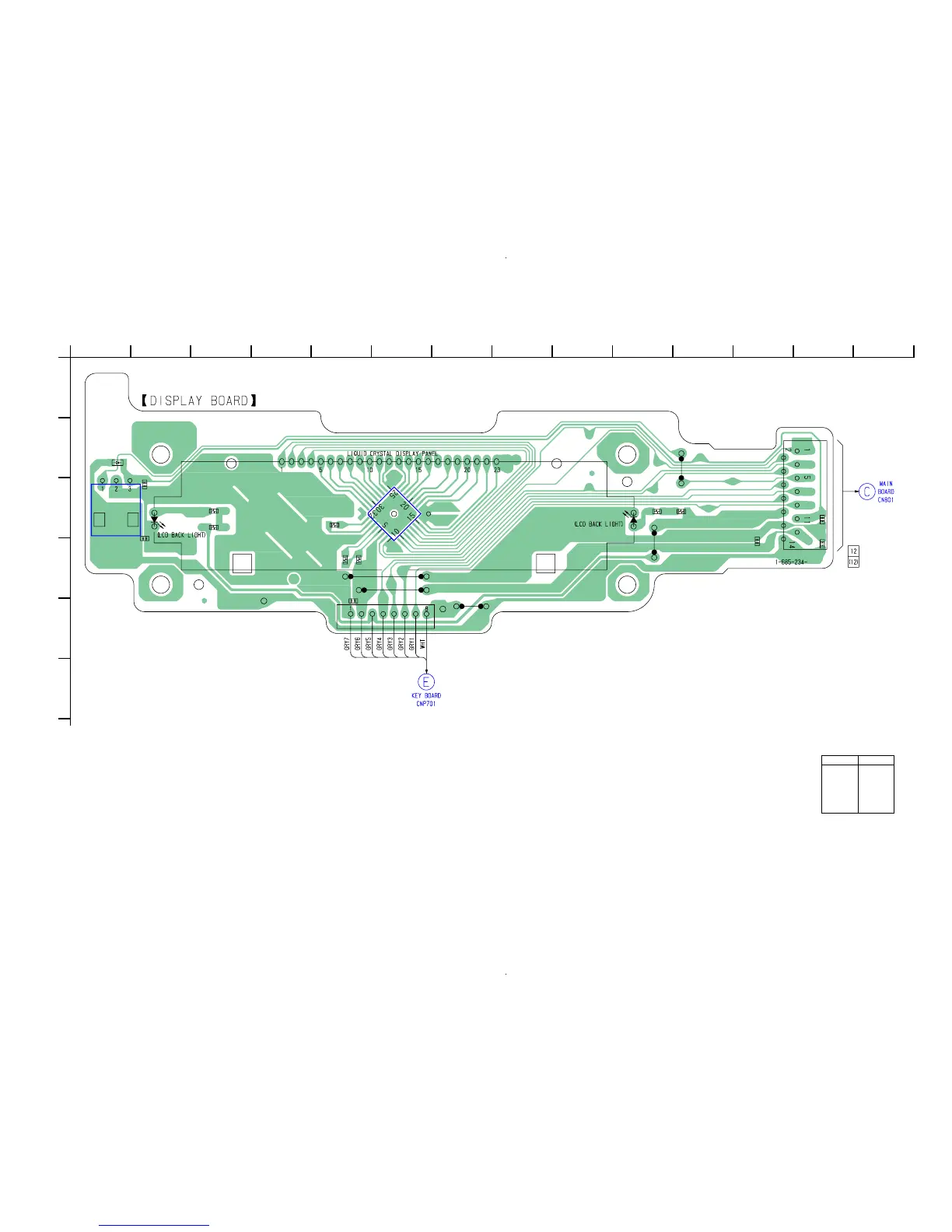

4-12. PRINTED WIRING BOARD — DISPLAY SECTION — • Refer to page 11 for Note on Printed Wiring Boards.
(Page 17)
(Page 24)
D702 C-2
D703 C-10
D704 B-1
IC701 C-6
IC702 C-1
• Semiconductor
Location
Ref. No. Location
Ver. 1.3
