Sony HT-CT770 - TW Assy (L-Ch, R-Ch) (SP3, SP4)

HT-CT770
10

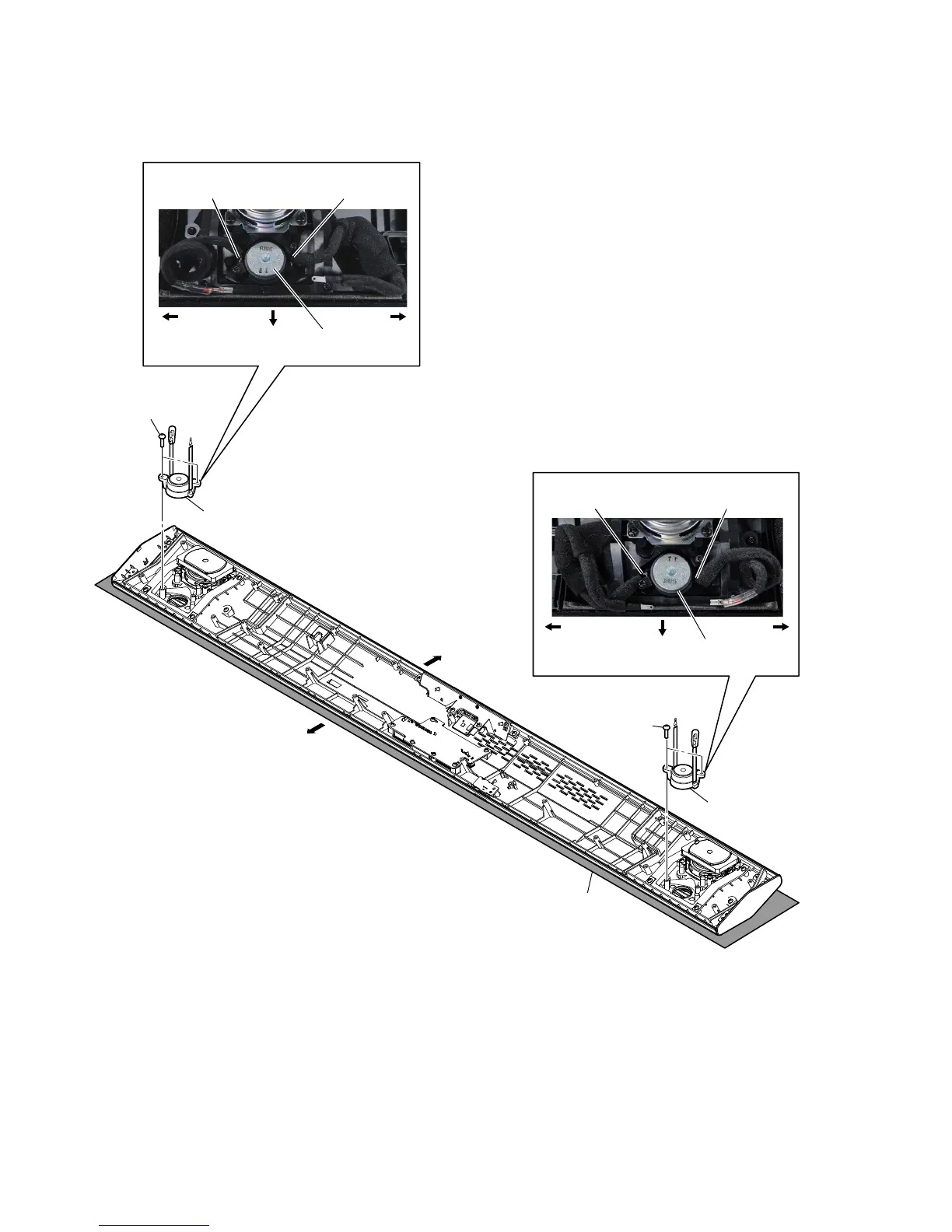

2-5. TW ASSY (L-CH, R-CH) (SP3, SP4)
Note:
Please spread a sheet under a
unit not to injure panel top.
– Panel top block bottom view –
2 TW assy
(L-ch) (SP3)
2 TW assy
(R-ch) (SP4)
1 two screws
(BVTP3 u 10)
1 two screws
(BVTP3 u 10)
TW assy
(R-ch) (SP4)
front side
right side
[red] [black]
left side
 TW assy (R-ch) (SP4) setting
TW assy
(L-ch) (SP3)
front side
right side
[black] [red]
left side
 TW assy (L-ch) (SP3) setting
rear side
front side
