Sony HT-CT770 - 2-4. LOUDSPEAKER (6 cm) (L-CH, R-CH) (SP1, SP2)

HT-CT770
9

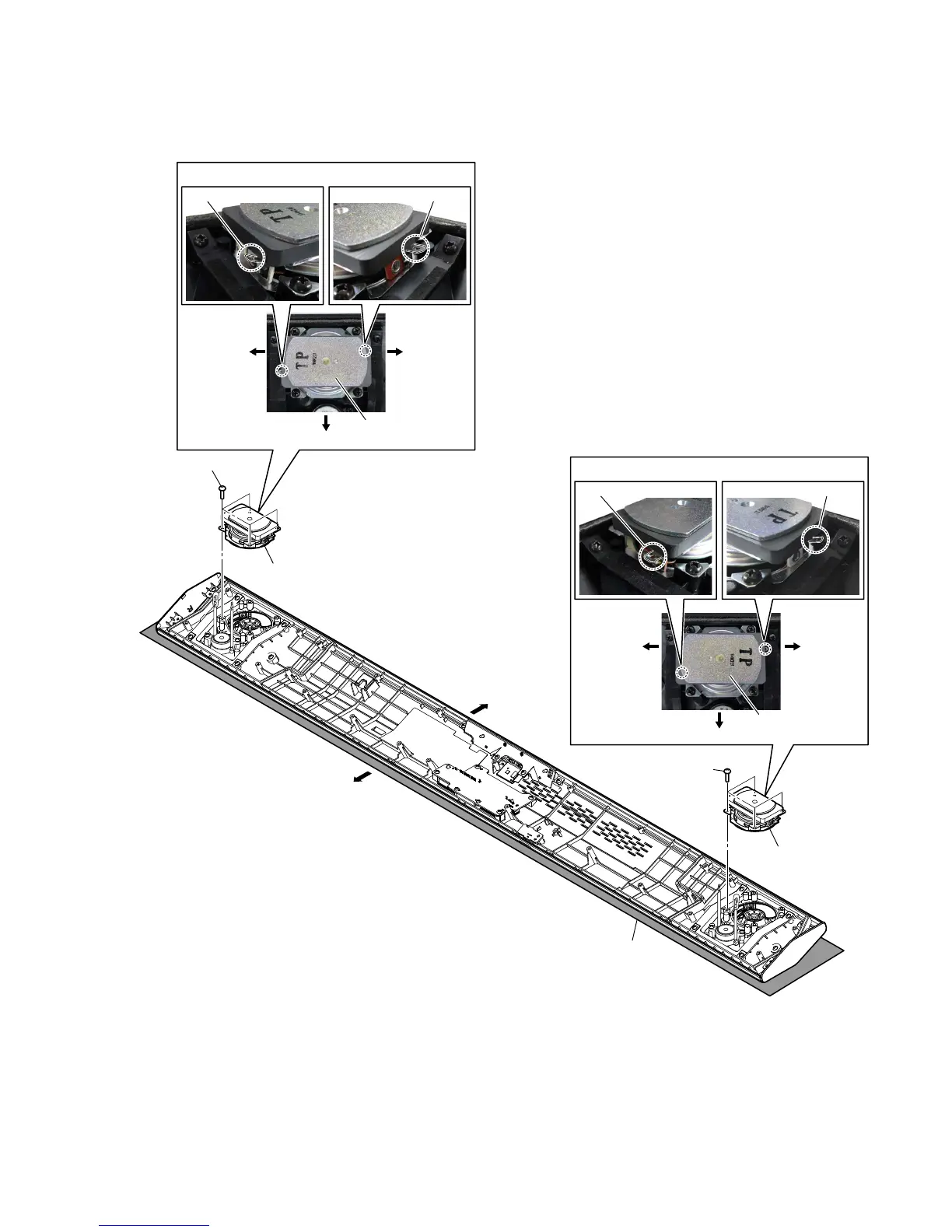

2-4. LOUDSPEAKER (6 cm) (L-CH, R-CH) (SP1, SP2)
2 loudspeaker (6 cm)
(R-ch) (SP2)
1 four screws
(3.5)
– Panel top block bottom view –
 Loudspeaker (6 cm) (L-ch) (SP1) setting
2 loudspeaker (6 cm)
(L-ch) (SP1)
loudspeaker (6 cm)
(L-ch) (SP1)
1 four screws
(3.5)
front side
right side left side
narrow terminal sidewide terminal side
loudspeaker (6 cm)
(R-ch) (SP2)
front side
rear side
front side
right side left side
Note:
Please spread a sheet under a
unit not to injure panel top.
 Loudspeaker (6 cm) (R-ch) (SP2) setting
narrow terminal side wide terminal side
