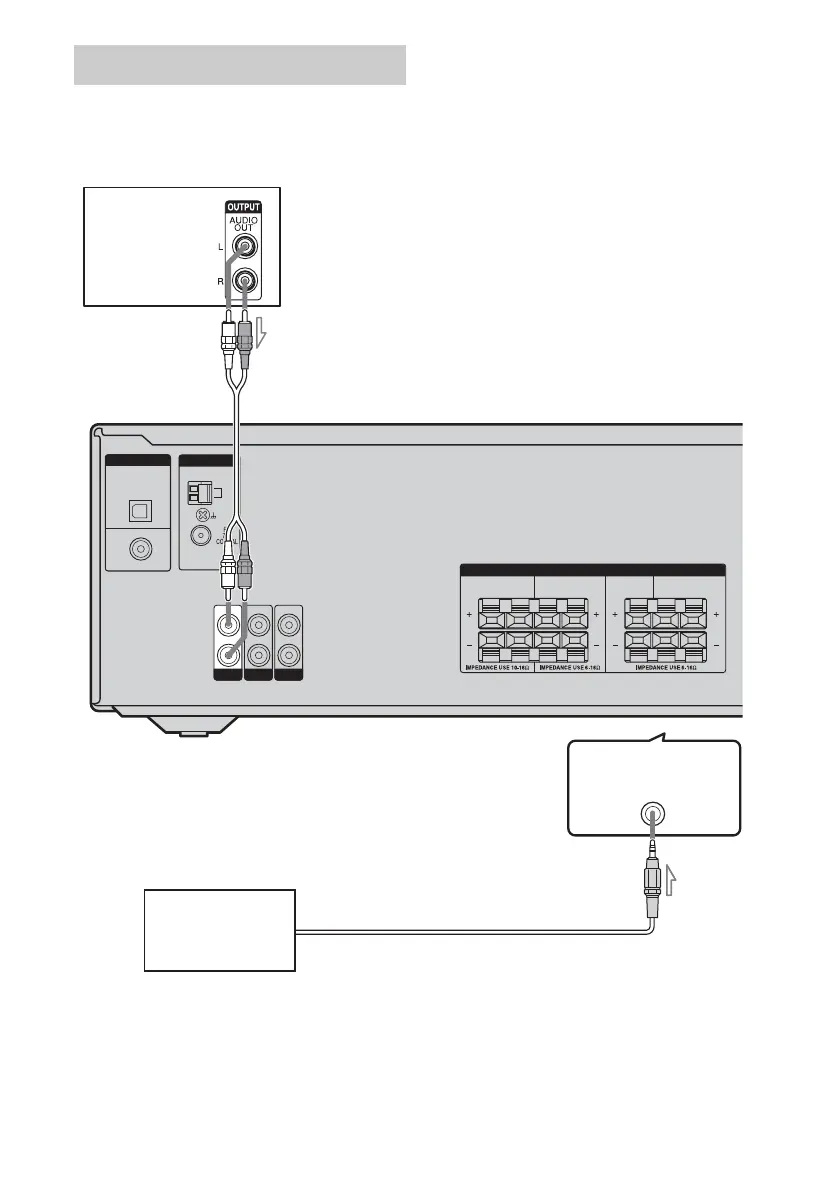

The following illustration shows how to
connect audio components such as MP3
player, Super Audio CD player or CD player.
Before connecting the cords, be sure to
disconnect the AC power cord.
Connecting audio components
DVD / B D
IN
DIGITAL
OPTICAL
SAT
IN
COAXIAL
ANTENNA
AM
SA-CD
/
CD
L
R
TV SAT
IN IN IN
SURROUND
SUBWOOFER
LR
SPEAKERS
FRONTCENTER
LR
VIDEO IN/
PORTABLE AUDIO IN/
AUTO CAL MIC
Super Audio CD
player/CD player
A
A Audio cord (not supplied)
B Phono cord with stereo headphone jack (not supplied)
(On the front panel)
Portable audio
B
