1: Installing the speakers
This receiver allows you to use a 5 channel
speaker with 2 subwoofers system.
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker and two
surround speakers) and a subwoofer (5.1
channel).

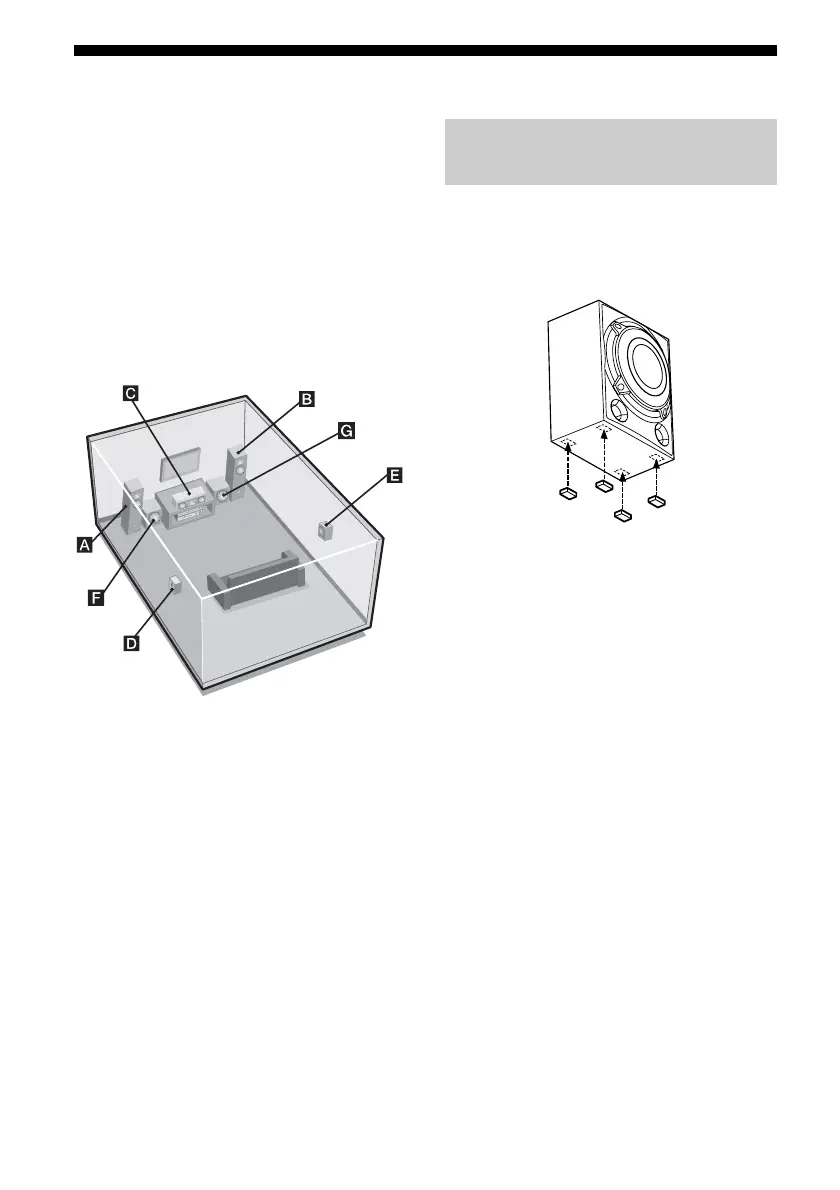

Example of 5 channel speaker
with 2 subwoofers system
configuration
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSubwoofer
GSubwoofer
Tip
Since the subwoofers do not emit highly directional
signals, you can place them wherever you want.
Before you install the center speaker, surround
speakers and subwoofers, be sure to attach the
supplied foot pads to prevent vibration or
movement as shown in the illustration below.
Installing the speakers on a flat
surface
