5
GB
Getting Started

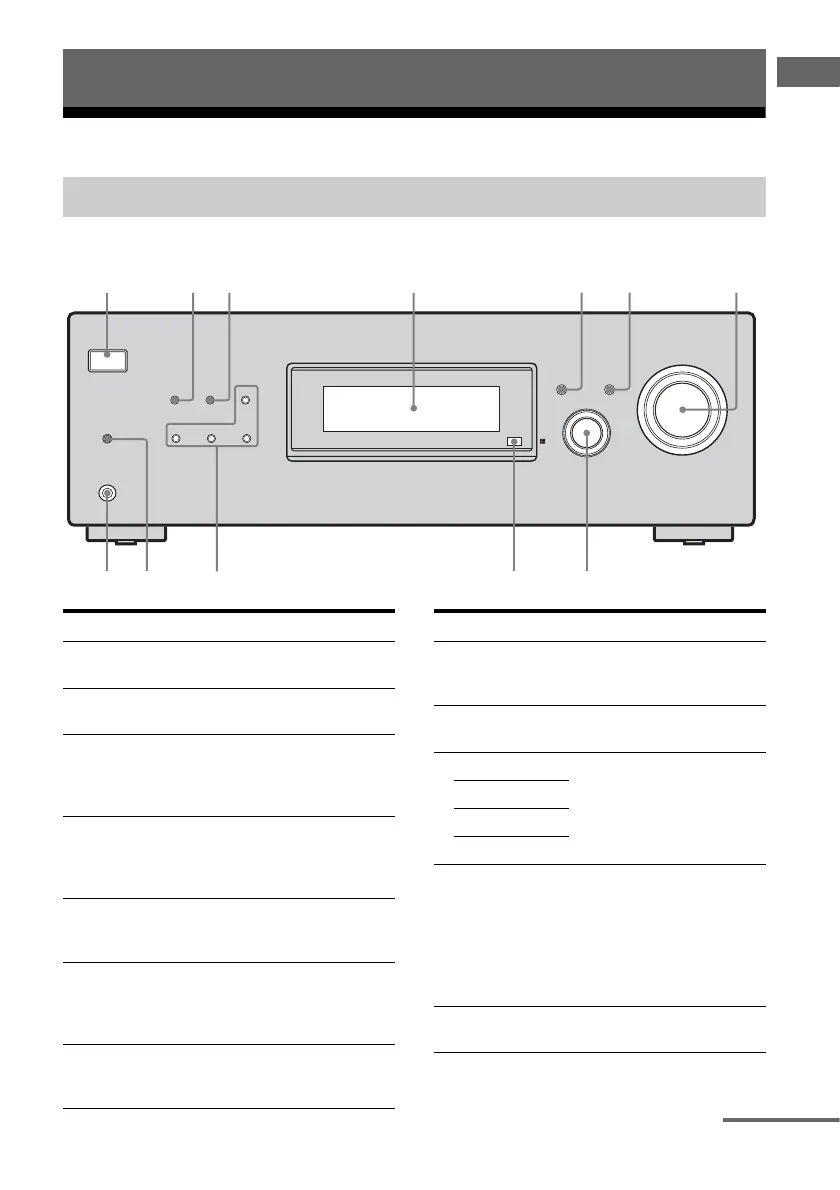

Description and location of parts
Front panel
.
Getting Started
Receiver
VIDEO IN/
PORTABLE AUDIO IN/
AUTO CAL MIC
PHONES
INPUT SELECTOR
A.F.D. MOVIE MUSIC
?/1
DIMMER SLEEP 2CH
DISPLAY
MASTER VOLUME
INPUT MODE
s
a
Name Function
A ?/1
(on/standby)
Press to turn the receiver on or
off (page 21, 28, 29, 42, 49).
B DIMMER Press to adjust the brightness of
the display (page 38).
C SLEEP Press to activate the Sleep
Timer function and the duration
which the receiver turns off
automatically (page 48).
D Display The current status of the
selected component or a list of
selectable items appears here
(page 6).
E DISPLAY Press to select information
displayed on the display
(page 48).
F INPUT MODE Press to select the input mode
when the same components are
connected to both digital and
analog jacks (page 47).
G MASTER
VOLUME
Turn to adjust the volume level
of all speakers at the same time
(page 26, 27, 28, 29).
Name Function
H INPUT
SELECTOR
Turn to select the input source
to play back (page 27, 28, 29,
47).
I Remote
sensor
Receives signals from remote
commander.
J 2CH Press to select a sound field
(page 39, 40, 42).
A.F.D.
MOVIE
MUSIC
K VIDEO IN/
PORTABLE
AUDIO IN/
AUTO CAL
MIC jack
– Connects to a portable audio
such as MP3 player, etc.
(page 16).
– Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 23).
L PHONES jack Connects to headphones
(page 53).
continued
To Next Page
