2-7. POWER CORD (AC1)
4 Remove the cord bushing (FBS001)
in the direction of an arrow.
5 cord bushing (FBS001)
Note 1:
Please spread a sheet under
a unit not to injure front side.

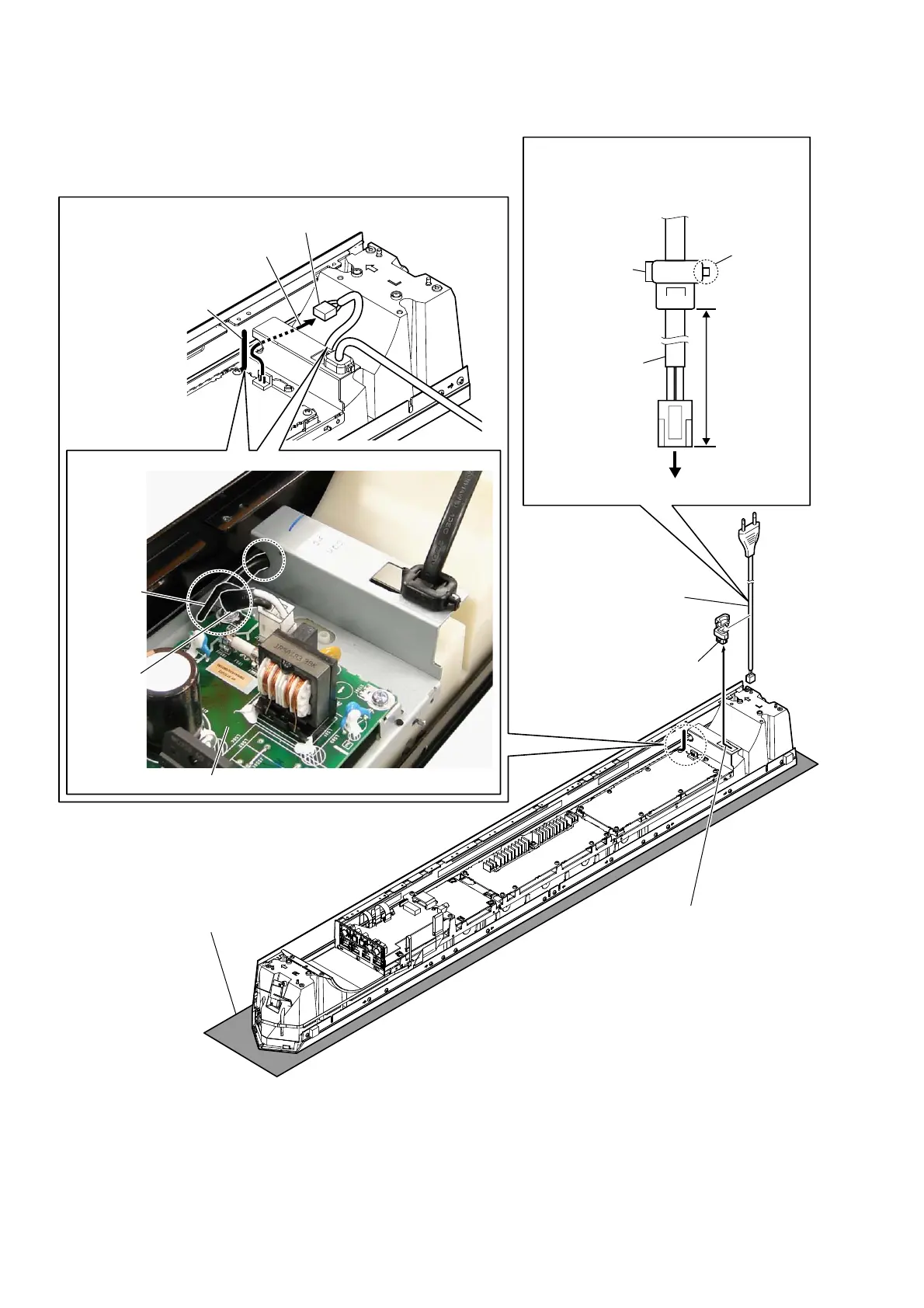

– Rear bottom view –
1 Remove the power cord
from the clamp (L35).
2 power cord connector
(CN501)
6 power cord
(AC1)
3 Draw out the power cord.
 3ower ForG $& VettiQJ
clamp (L35)
power cord
(AC1)
POWER board
 3ower ForG VettiQJ
power cord
(AC1)
cord bushing
(FBS001)
claw
150 +5, -0 mm
to POWER board
Note 2:
When installing the power cord (AC1),
check the direction of claw of cord bushing
(FBS001) and install correctly.
