Sony HT-ST7 Service Manual

HT-ST7
9

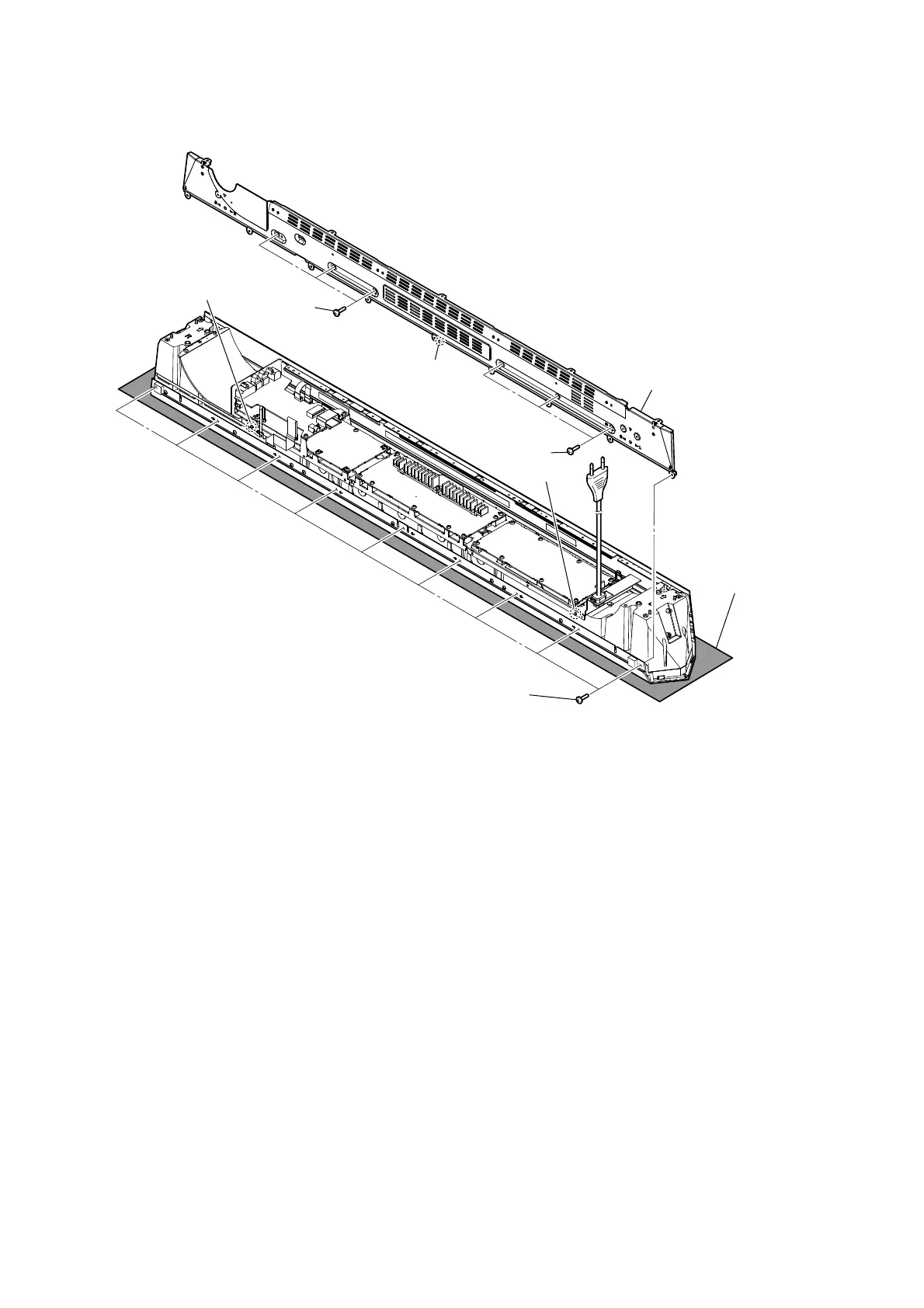

2-6. BRACKET (BOTTOM) BLOCK
5 bracket (bottom) block
2 three screws
(BVTP3 u 8)
3 guide pin
3 guide pin
4 boss
2 three screws
(BVTP3 u 8)
1 nine screws
(BV/ring)
Note:
Please spread a sheet under
a unit not to injure front side.
– Rear bottom view –

Sony HT-ST7 Specifications

General

FM radio	-
Product color	Black
Wall mountable	No
Consumer Electronics Control (CEC)	BRAVIA Sync
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	1080 x 109 x 110 mm
Subwoofer dimensions (WxDxH)	241 x 411 x 391 mm
HDMI in	3
Bluetooth	Yes
HDMI ports quantity	4
Number of HDMI outputs	1
Connectivity technology	Wired & Wireless
Digital audio optical in	2
Number of amplifier channels	7.1 channels
Audio decoders	Dolby Digital, Dolby TrueHD, DTS, DTS 96/24, DTS-HD
RMS rated power	450 W
Woofer diameter	65 mm
Tweeter diameter	10 mm
Number of woofer drivers	5
Soundbar speaker RMS power	350 W
Total Harmonic Distortion (THD)	10 %
Subwoofer type	Active subwoofer
Subwoofer location	Separate
Subwoofer connectivity	Wireless
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	80 W

Weight and Dimensions

Cord length	1.5 m
Soundbar weight	7900 g
Subwoofer weight	11200 g
