Sony HXR-NX200 User Manual

84
x INPUT2 TRIM
x INPUT2 WIND
See the description for the corresponding
functions for INPUT1.
z Tips
• If the recording level is set to “AUTO” and
INPUT TRIM is set to [0dB], a –48 dBu input
will be recorded at the reference recording level
(–48 dBu corresponds to 0 dB level).
For example, if a microphone with –30 dB
sensitivity (0 dB = 1 V/Pa at 1 kHz) is
connected and a 1 kHz 74 dB SPL sound
pressure level is input (microphone output is
–48 dBu), set INPUT TRIM to [0dB].
If using a microphone with –36 dB sensitivity,
setting INPUT TRIM to [+6dB] will
compensate for the difference in sensitivity from
a microphone with –30 dB sensitivity.
• The INPUT TRIM function adjusts the input
level of external microphones. For microphones
with high sensitivity or to record high-level
audio, adjust in the negative direction. For
microphones with low sensitivity or to record
low-level audio, adjust in the positive direction.
• Distortion of high-volume audio may occur in
the input stage or the recording stage. To
counter distortion of the input stage, adjust the
level using the INPUT TRIM function. To
counter distortion in the recording stage, reduce
the overall level manually.
• If the INPUT TRIM is adjusted in the negative
direction too far, the audio level from the
microphone may become too small, adversely
affecting the S/N ratio.
• Test the effect of using [XLR SET] beforehand
to suit the microphone used and the sound field
to record.
(DISPLAY SET)
menu
Display settings (MARKER/DISPLAY
OUTPUT, etc.)
The default settings are marked with B.
See page 72 for details on selecting
menu items.
The histogram displays the luminance
distribution that shows how many pixels of
a particular brightness exist in the image.
B OFF
Does not display the histogram.
ON
Displays a histogram.
A line appears at the 100% position, and
the color of the zone above the line
changes.
ON[ZEBRA POINT]
The histogram shows the point where the
zebra pattern appears. A line is displayed
at the brightness level set with [ZEBRA].
z Tip
• You can assign this function to an ASSIGN
button (p. 58).
Press the MENU button t select
(DISPLAY SET) with the V/v/B/b/SET
button.

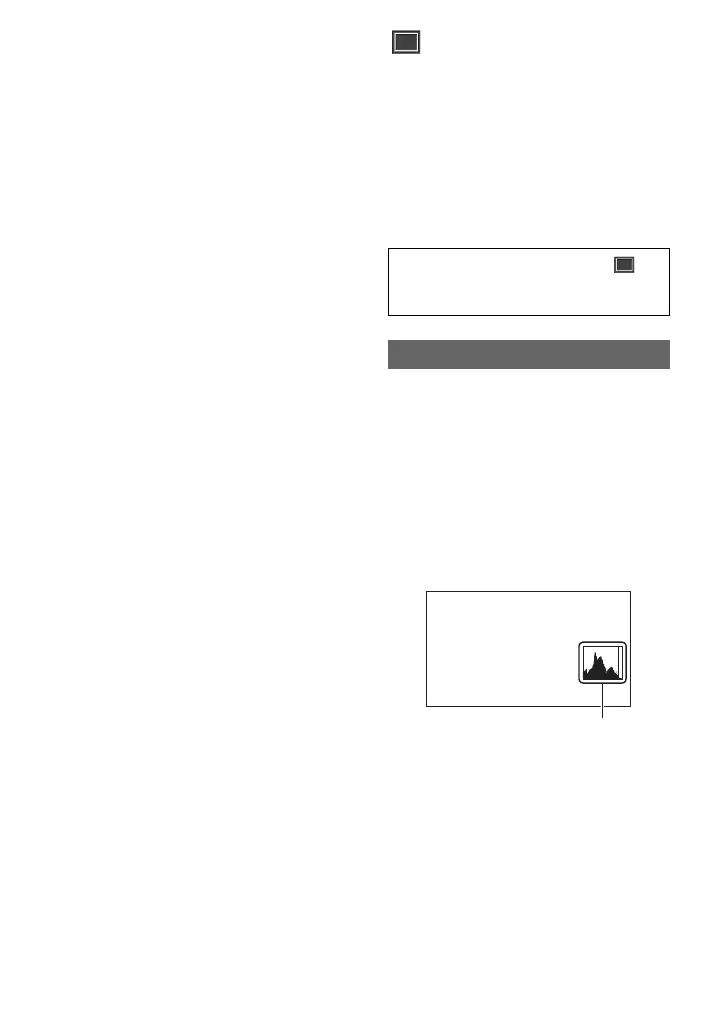

HISTOGRAM
Histogram
(AUDIO SET) menu (Continued)

Sony HXR-NX200 Specifications

General

Battery voltage	7.2 V
Battery life (max)	4 h
Battery technology	-
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Video formats supported	AVC, AVCHD, H.264, MPEG4, XAVC S
Maximum video resolution	3840 x 2160 pixels
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	PCM
Filter size	62 mm
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	No
Maximum aperture number	11
Minimum aperture number	2.8
Focal length (35mm film equivalent)	29 - 348 mm
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Microphone type	Omnidirectional
Image sensor size	1 \
Sensor type	CMOS
Total megapixels	14.2 MP
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Supported aspect ratios	4:3, 16:9
Camera shutter speed	1/6 - 1/10000 s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Micro-USB 2.0 ports quantity	1
Component video (YPbPr/YCbCr) out	0
Viewfinder type	Electronic, Optical
Viewfinder screen size	0.24 \
Product color	Black
Camcorder media type	Memory card
Compatible memory cards	MS PRO Duo, SD, SDHC, SDXC
Cables included	AC, USB
Maximum image resolution	- pixels
Display diagonal	- \

Weight and Dimensions

Depth	371.3 mm
Width	171.3 mm
Height	187.8 mm
Weight	1800 g
