HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-3

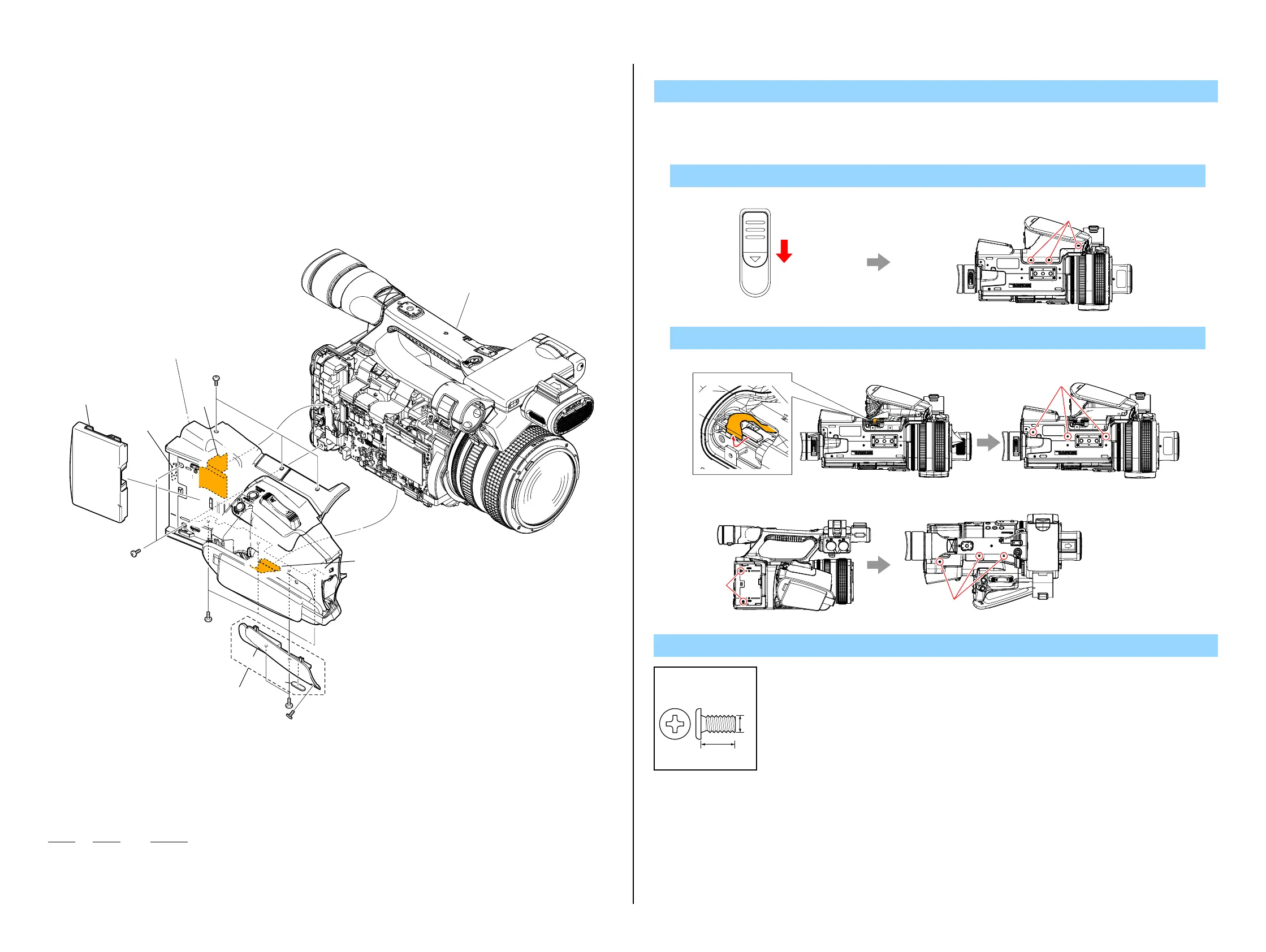

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION
ns: not supplied
Ref. No. Part No. Description
1 4-165-238-01 COVER, EXT DUMMY
2 X-2515-789-1 COVER ASSY, GRIP
3 2-178-805-01 FOOT, RUBBER
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
DISASSEMBLY
1 Release button (1-1) → EXT Dummy Cover (1-2) → #49 X 3 → Grip Cover Assy (1-3)
→ Flexible Board → #49 X 8
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
1 Cabinet (L) Section-1
(See page 2-6)
Main Board Section
(See page 2-4)
#49
#49
#49
#49
#49
3
-1
-1
ns
1
1-2
2
1-3
1-1
#49
Bottom View
#49
#49
#49
Bottom ViewBottom View
Left View
Top View
1. Remove to numerical order 1 (1-1 to 1-3) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
