HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-14

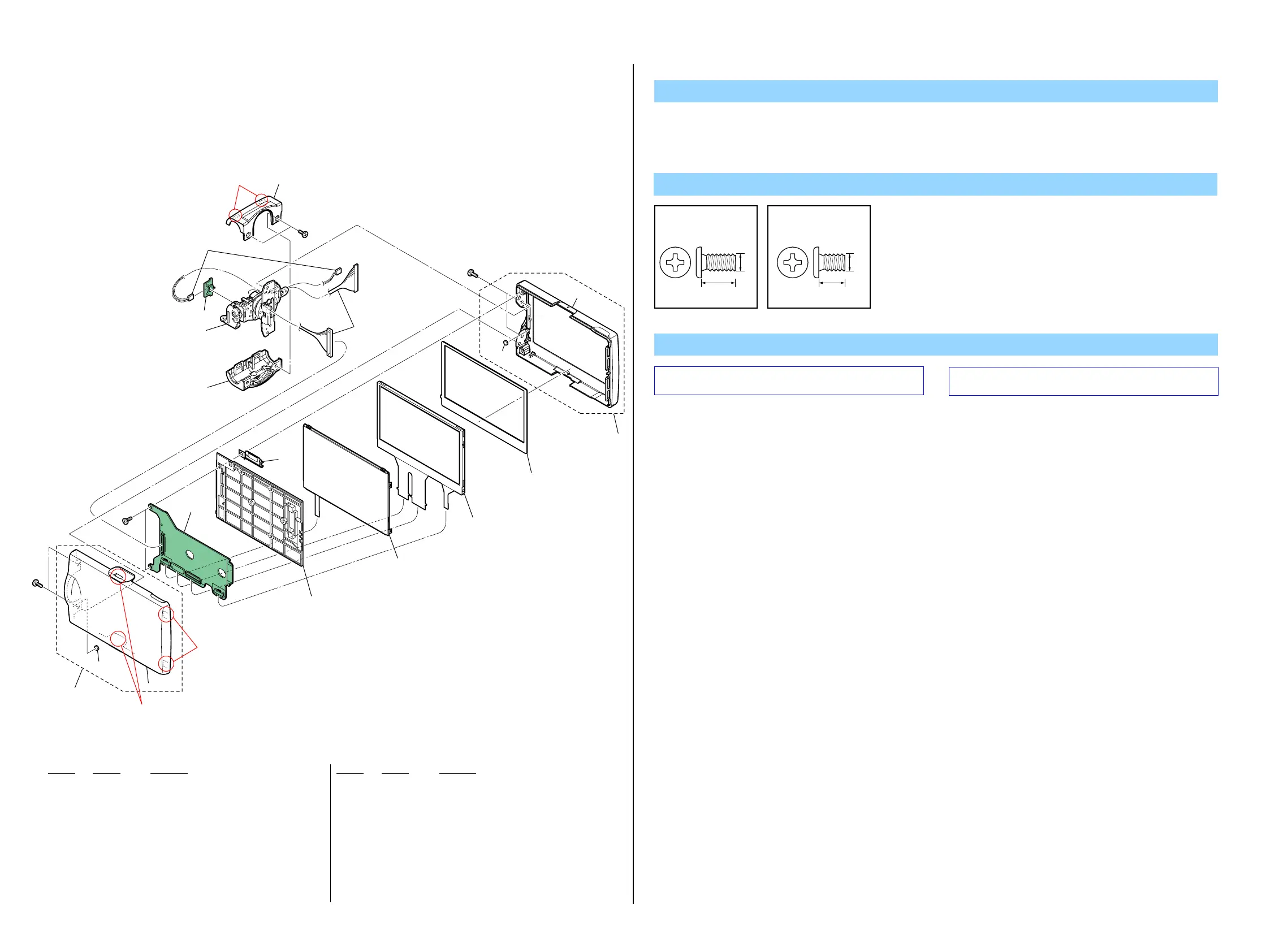

2-1-12. LCD SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
551 X-2515-773-1 CABINET (UPPER (94000)) ASSY
552 A-1752-128-A PD-395 BOARD, COMPLETE
* 553 4-165-311-01 FRAME, BL
554 3-288-565-11 CUSHION, PANEL
555 X-2515-774-1 LOWER (94000) ASSY, CABINET
556 3-288-566-01 CABINET (T), PANEL HINGE
557 1-963-030-21 HARNESS (SW-116) (Note)
558 A-1752-122-A HT-003 BOARD, COMPLETE
559 X-2342-571-1 HINGE (TYPE 07KAI) ASSY, PANEL
560 1-965-937-21 HARNESS (COAXIAL CABLE)
561 3-288-567-01 CABINET (B), PANEL HINGE
D901 1-480-358-11 BLOCK, LIGHT GUIDE PLATE (3.2)
LCD901 A-1734-177-A TP BLOCK ASSY (32ESHGU09)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
Screw
PD-395
#49
#49
#49
#50
D901
ns
ns
ns
ns
ns
551
552
553
554
555
556
559
557
(Note)
558
561
560
LCD901
Boss
Claw
Claw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
1. { points in left figure shows claws. Be careful when it removes.
DISASSEMBLY
Note
Note:
Note: Refer to “Assembly-2: How to arrange Harnesses
(SW-116)” when installing.
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
To Next Page
