Sony HXR-NX5C - Exploded View - Lens Section; Screw Types for Lens Section; Important Notes for Lens Section

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-16

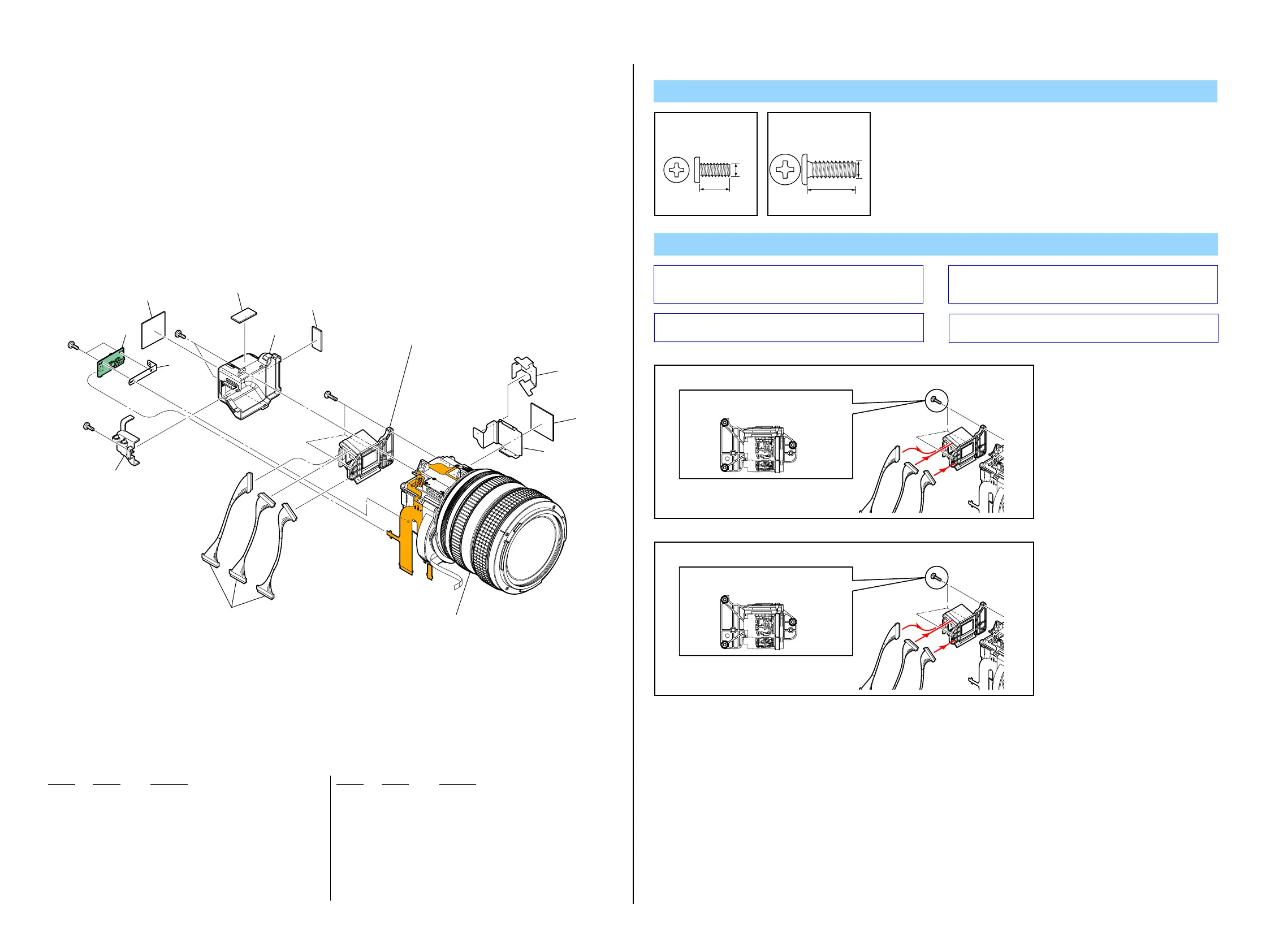

2-1-14. LENS SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
651 1-788-775-31 LENS, VIDEO CF0022
* 652 4-119-361-01 HEAT SINK, LENS
653 4-119-362-01 SHEET (2828), LENS RADIATION
* 654 4-119-360-01 SHEET, CM RADIATION
655 A-1566-526-A DEVICE (SERVICE), PRISM
(including IC3001/IC5001 (CMOS imager) and
CM-097/104 complete boards) (Note 2)
656 1-966-281-11 HARNESS (COAXIAL CABLE) (Note 1)
* 657 4-119-357-01 COVER (A), LIGHT INTERCEPTION
658 4-119-356-01 SHEET (1122), LENS RADIATION
* 659 4-119-358-01 COVER (B), LIGHT INTERCEPTION
* 660 4-119-359-01 PLATE, GY GROUND
661 A-1759-066-A GY-022 BOARD, COMPLETE (SERVICE)
#53 3-080-206-21 SCREW, TAPPING, P2
#155 3-080-204-31 SCREW, TAPPING, P2 (Note 3)
Screw
#53
#53
#53
(including IC3001/IC5001 (CMOS imager)
and CM-097/104 complete boards) (Note 2)
(Note 1)
(Note 3)
#155
661
660
653
659
656
658
658
655
654
657
653
652
651
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
1.7
6.0
#155: M1.7 X 6.0 (Tapping)
(Black)
3-080-204-31
Note
Note1:
 


Note1: Refer to page 2-2 “Note for disconnecting the harness
(coaxial cable)” when changing the harness (coaxial
cable).
Note2:
 

Note2: Be sure to read “Precuations for Replacement of
Imager”on page 6-1 when changing the imager.
1
2
3
Note 3: Prism Device cautions
Tighten screws in the following order.
Be sure not to insert the harnesses forcefully.
(Standard: Insertion; 15N, Pull out; 10N)
1
2
3
Note 3: プリズムデバイス取り外し組立時の注意
下記の順番でねじを締め付けてください。
ハーネスを強く差し込まないでください。
(差し込み時：15N,引き抜き時：10N)
