Sony HXR-NX5C - Exploded View - Main Board Section; Disassembly Instructions - Main Board Section

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-4

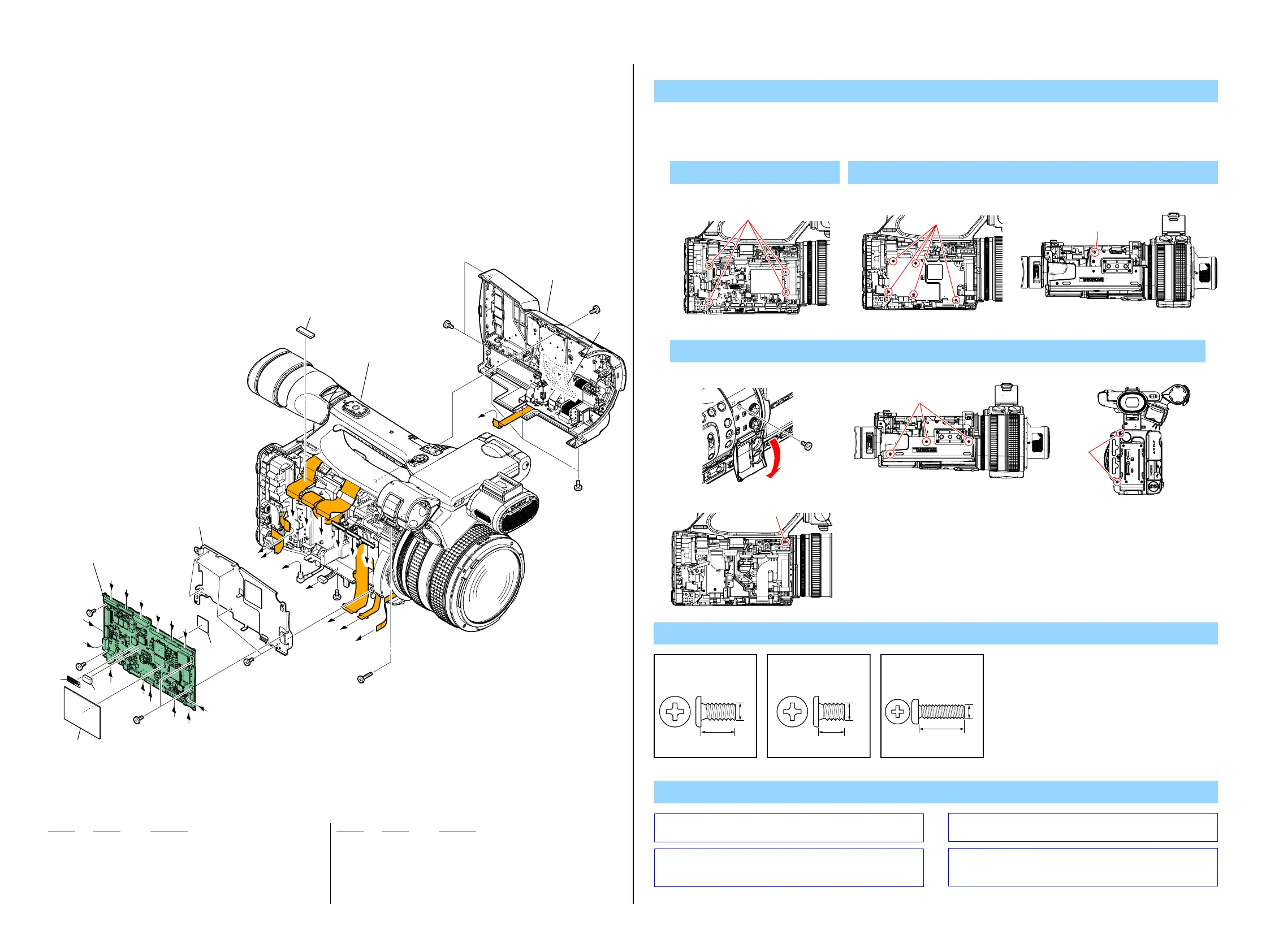

2-1-2. MAIN BOARD SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
* 51 4-165-223-01 SHEET (4535T1), RADIATION
* 52 4-170-751-01 SPACER (A), VC
* 53 4-165-995-01 LABEL, FUSE
54 A-1758-578-A VC-582 BOARD, COMPLETE (SERVICE) (Note 1)
* 55 4-166-044-01 SPACER (B), VC
* 56 4-165-252-01 FRAME, MAIN
* 57 4-175-181-01 SHEET (FP1152), WATERPROOF
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#154 7-627-556-97 SCREW, PRECISION +P2.6X8 TYPE 1
1. Remove to numerical order (2 to 4) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness
DISASSEMBLY
VC-582
VC-582
E
E
E
E
E
E
F
E
D
C
L
K
J
H
G
I
B
A
I
L
H
J
K
A
B
C
D
E
F
G
M
N
M
N
4
#50
#50
#49
#49
#49
#49
#154
#49
#50
2 54
(Note 1)
3 56
51
52
53
55
57
4
Cabinet (R) Section
(Note 2)
(See page 2-8)
Chassis Section
(See page 2-5)
2 #50 X 4 3 #49 X 6
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
VC-582
VC-582
#50
Left View
#49
#49
Left View Bottom View
4 Open Lid AL (4) → #49 X 6 → #154 X 1
#154
#49
Left View
Back View
#49
#49
Bottom ViewRight View
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
8.0
2.6
#154: M2.6 X 8.0
(Silver)
7-627-556-97
Note
Note 1: Refer to “Assembly-8: How to arrange Harness (Coaxial
Cable)” when installing.
Note 1:
 

Note 2: Refer to “Assembly-7: On installation of the Cabinet (R)
section, adjust the position of the ND filter switch” when
installing.
Note 2:
 


The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
