Sony HXR-NX5C - Exploded View - Cabinet (L) Section 2; Screw Types for Cabinet (L) Section 2; Important Notes for Cabinet (L) Section 2

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-7

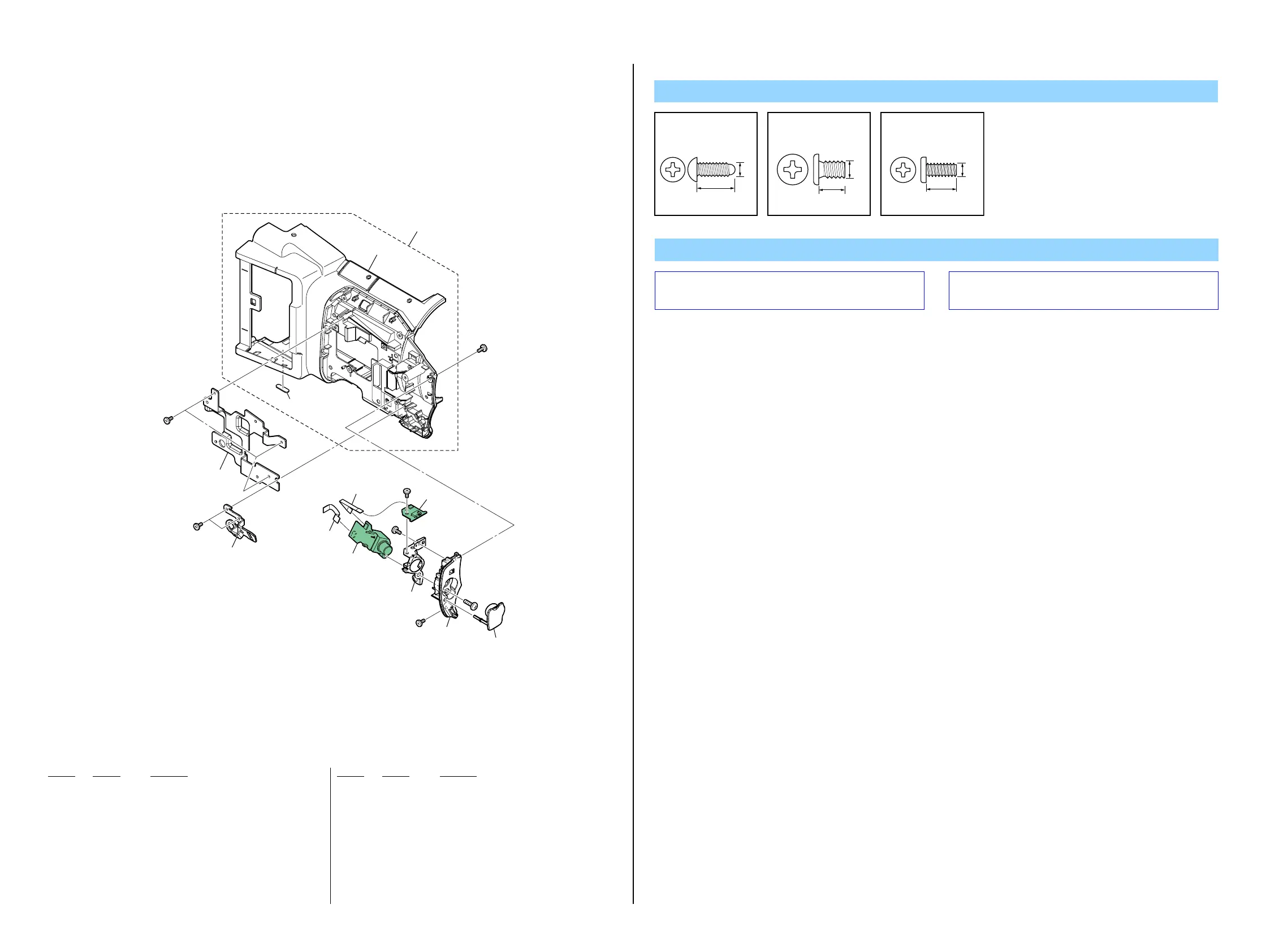

2-1-5. CABINET (L) SECTION-2
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
201 X-2515-776-1 CABINET (L (94000)) ASSY
(EXCEPT HXR-NX5M/HXR-NX5C)
201 X-2515-787-1 CABINET (L (94003)) ASSY
(HXR-NX5M/HXR-NX5C)
202 2-178-805-01 FOOT, RUBBER
* 203 4-165-334-01 HEAT SINK, L
* 204 4-165-327-01 BRACKET (FRONT), GRIP BELT
205 1-837-240-11 CABLE, FLEXIBLE FLAT (FFC-194)
206 1-837-242-11 CABLE, FLEXIBLE FLAT (FFC-202)
207 A-1752-121-A TC-001 BOARD, COMPLETE
208 A-1752-126-A TS-157 BOARD, COMPLETE (Note)
209 4-165-237-01 FRAME, TC
210 X-2515-777-1 CABINET (TC) ASSY
211 4-165-240-01 COVER, TC
#34 3-077-331-41 +BV3 (3-CR)
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
ns
201
202
203
204
207
208
209
205
206
#53
#53
#53
#34
#50
#53
#53
210
211
(Note)
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#34: M3.0 X 8.0
(Black)
3-077-331-41
8.0
3.0
Note
Note : Refer to “Assembly-6: On installation of the TS-157
Board, adjust the position of the switch” when install-
ing.
Note :
  


The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
