HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-12

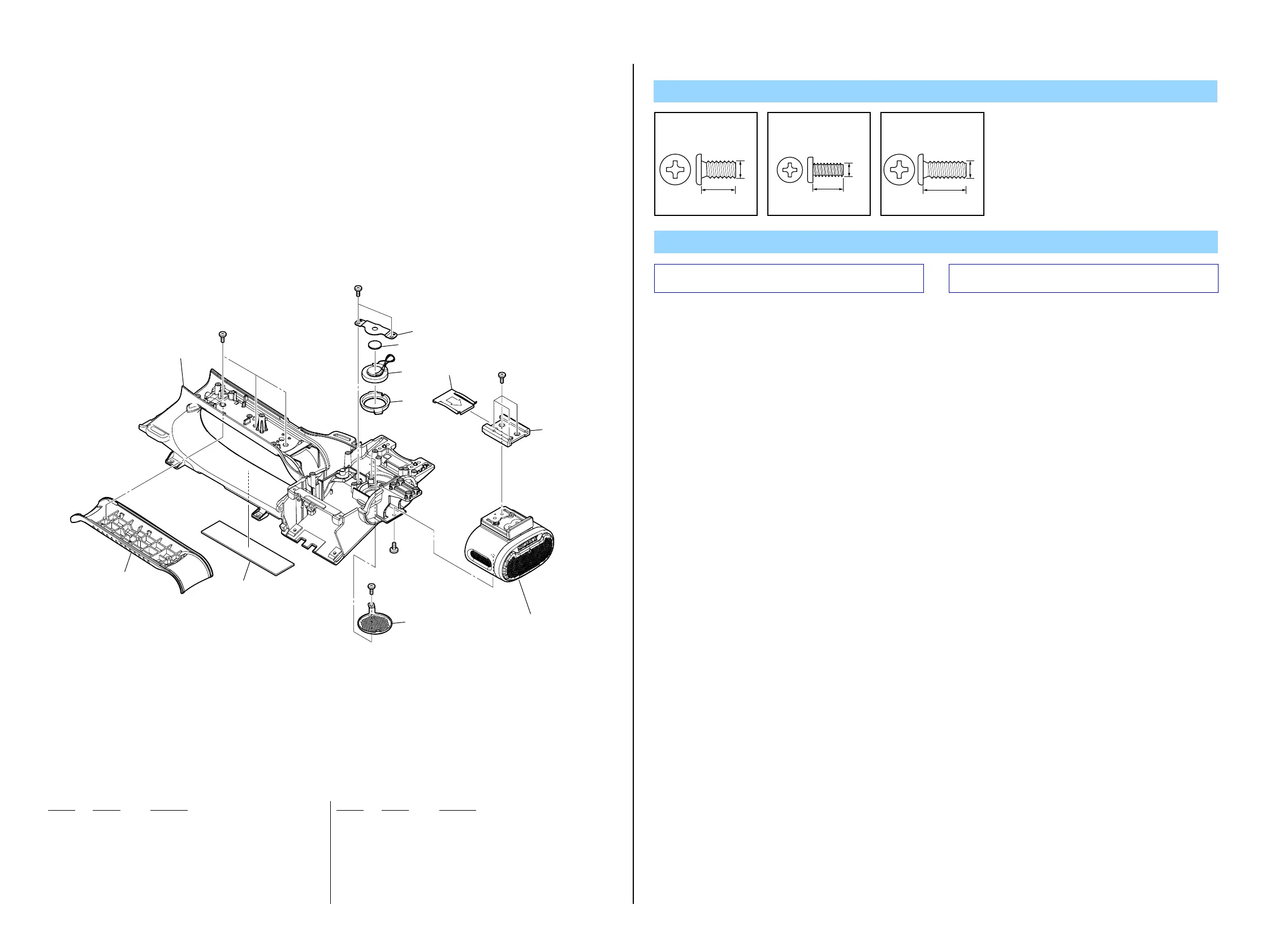

2-1-10. HANDLE SECTION-4
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
451 4-165-278-01 GRIP
452 4-165-224-01 SHEET (6018T1), RADIATION
453 4-165-277-01 HANDLE
* 454 4-119-285-01 CUSHION, SPEAKER
455 2-178-550-01 HOLDER, SPEAKER
456 3-069-286-03 SHOE, ACCESSORY
* 457 2-178-566-01 GRILLE, SPEAKER (Note)
SP901 1-825-968-11 LOUDSPEAKER (1.8CM)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#100 3-080-203-51 SREW (M2), LOCK ACE, P2
Screw
451
452
453
454
ns
ns
SP901
#49
#100
#49
#53
#49
Microphone section
(See page 2-15)
455
456
457
(Note)
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#100: M2.0 X 6.0
(Black)
3-080-203-51
6.0
2.0
Note
Note:
Note: Refer to “Assembly-3: How to bent the Speaker Grille”
when installing.
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01
