Sony HXR-NX80 User Manual

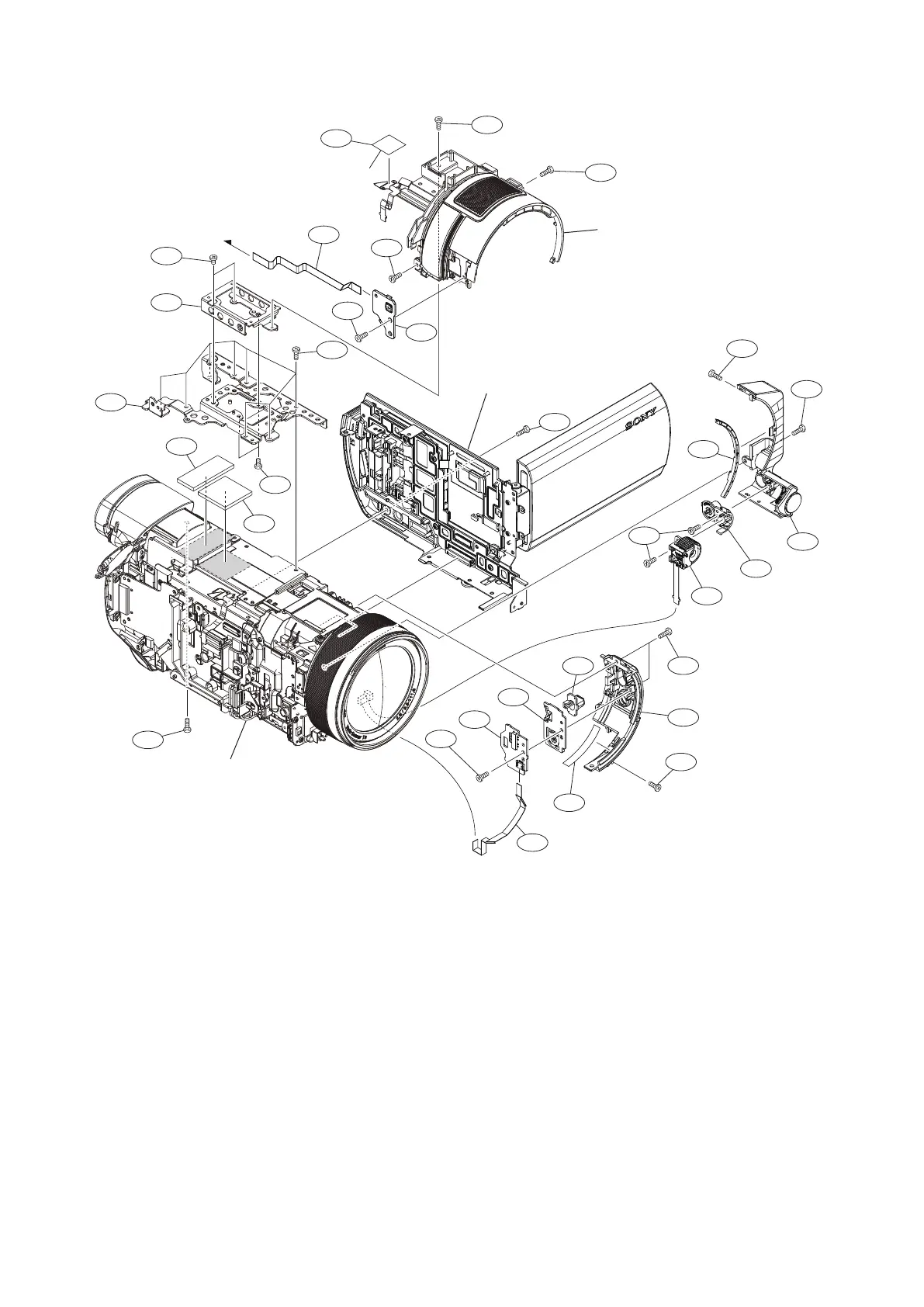

Overall-3
To GR-1003 board
210
207
208
207
204
201
207
206
219
207
206
220
212
211
207
207
221
215
216
203
207
214
207
217
213
218
207
202
209
205
209
207
*1: Use this to cut or splice so that it becomes the designated size.
*2: This screw cannot be reused. Discard the screw removed
once in servicing. Instead, use a new screw.
*1
*2
*2
Refer to “Overall-4”
Refer to “Cabinet R”
Refer to “Top Block-2”
(Size 12 x 12mm)
No. Part No. SP Description
201 A-2189-089-A s MOUNT, EF-1003
202 A-2189-090-A s MOUNT, SW-1030
203 1-492-624-11 s SWITCH BLOCK, CONTROL(AD47100)
204 1-834-806-12 s CABLE, FLEXIBLE FLAT (FFC-335)
205 1-834-810-12 s CABLE, FLEXIBLE FLAT (FFC-339)
206 2-187-345-21 s SCREW(M1.7),P2 [P1.7 x 2.5]
207 2-635-562-71 s SCREW(M1.7) [P1.7 x 4]
208 2-660-401-51 s SCREW(M1.7),NEW TRU-STAR,P2
[P1.7 x 5]
209 3-078-890-11 s SCREW, TAPPING [P1.7 x 4]
210 4-446-014-01 s TAPE AS (2040))
211 4-532-960-01 s SHEET (B), VC RADIATION
212 4-533-028-11 s FRAME, TOP
213 4-533-045-01 s SHEET (LC), ADHESIVE
214 4-533-046-12 s COVER, LENS
215 4-533-048-11 s CABINET, HINGE
216 4-533-049-01 s BUTTON, MANUAL
217 4-533-050-01 s SELECTION (SW), ZOOM
No. Part No. SP Description
218 4-533-051-01 s BUTTON, FOCUS
219 4-544-471-01 s FRAME (HN), TOP
220 4-544-481-01 s SHEET (VF), CM RADIATION
221 4-697-919-01 s RING, HINGE COVER
HXR-NX80/HXR-MC88
6-4

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
