Sony HXR-NX80 User Manual

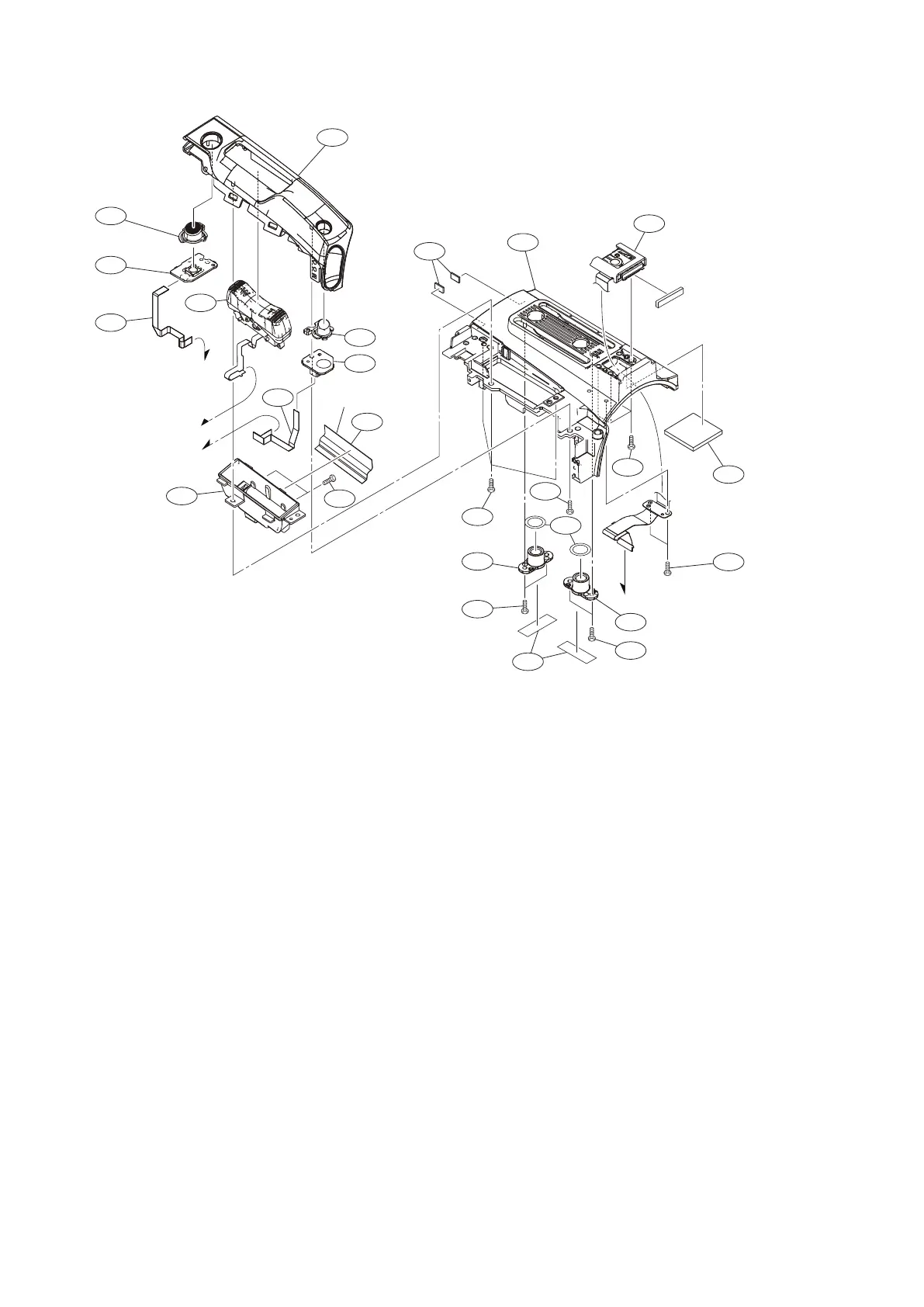

Top Block-1
To GR-1003
board
To GR-1003 board
To GR-1003 board
To ZM-1005 board
811
818
803
816
807
809
817
813
819
802
806
815
810
809
814
808
814
808
821
812
804
820
805
801
*1: Use this to cut or splice so that it becomes the designated size.
*2: This screw cannot be reused. Discard the screw removed
once in servicing. Instead, use a new screw.
*1
807
*2
*2
(Size 33 x 16mm)
No. Part No. SP Description
801 A-2189-086-A s MOUNT, IP-1002
802 A-2189-087-A s MOUNT, PH-1004
803 A-2197-550-A s MOUNT (TL), FP2269
804 1-490-411-12 s SWITCH BLOCK,CONTROL(PZ96000)
805 1-834-806-12 s CABLE, FLEXIBLE FLAT (FFC-335)
806 1-846-258-11 s FLEXIBLE FLAT CABLE(FFC-1030)
807 2-187-345-21 s SCREW(M1.7),P2 [P1.7 x 2.5]
808 2-635-562-71 s SCREW(M1.7) [P1.7 x 4]
809 3-080-204-21 s SCREW, TAPPING, P2 [P1.7 x 5]
810 3-080-206-21 s SCREW, TAPPING, P2 [P1.7 x 5]
811 4-446-014-01 s TAPE AS (2040))
812 4-534-483-01 s SHEET, VF SLIDER (UPPER)
813 4-544-443-11 s CABINET (TOP)
[For HXR-NX80]
4-544-443-21 s CABINET (TOP)
[For HXR-MC88]
814 4-544-444-01 s SCREW (913), TRIPOD
815 4-544-446-01 s HOLDER, PZ
816 4-544-449-01 s CUSHION (LOWER), SHOE
817 4-558-150-01 s SHEET (913), TRIPOD
818 4-697-302-11 s CABINET (PZ)
819 4-697-311-01 s BUTTON (PH)
820 4-697-312-01 s BUTTON (IP)
821 4-431-734-01 s TAPE AS
HXR-NX80/HXR-MC88
6-10

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
