Sony HXR-NX80 User Manual

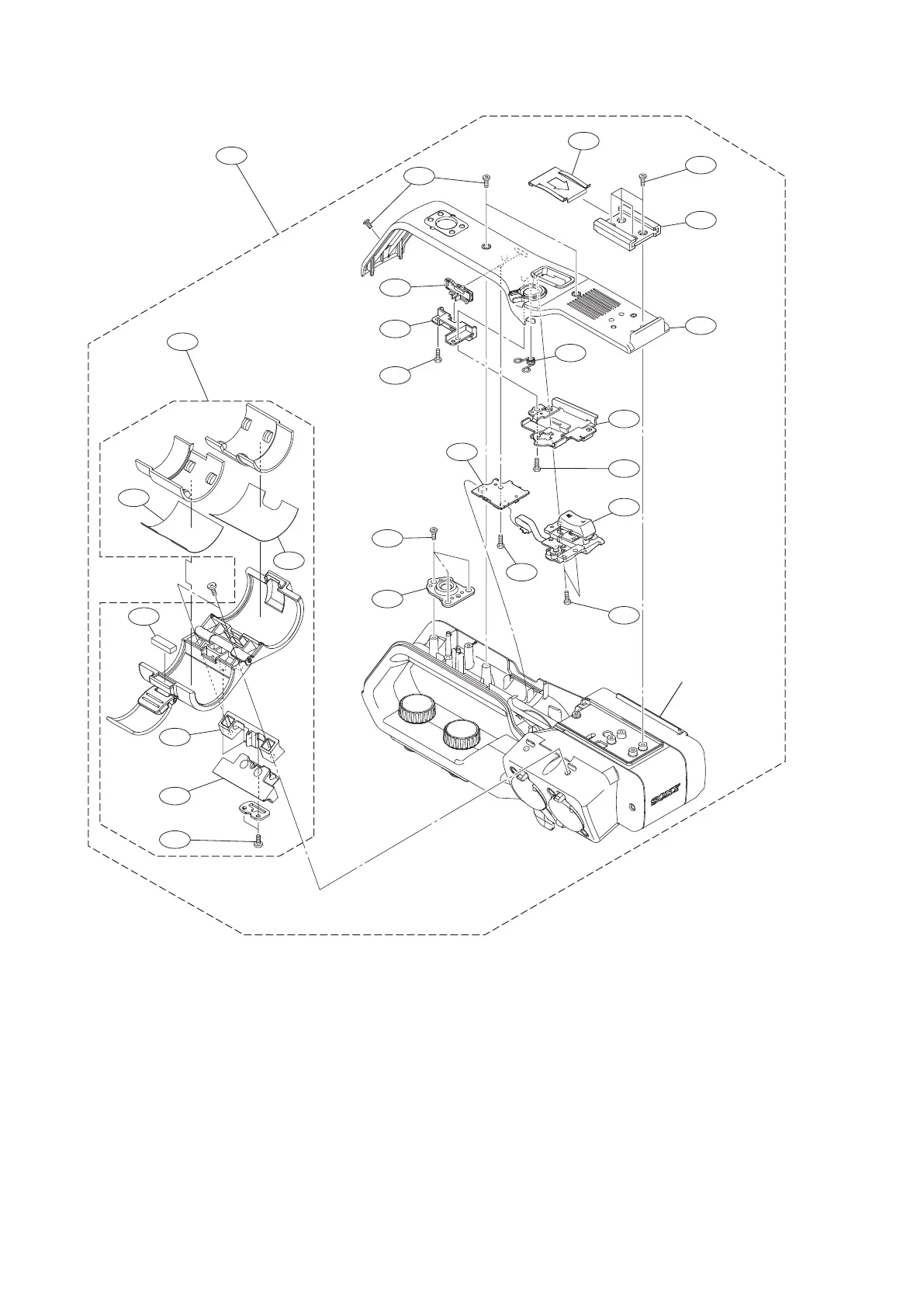

Handle-1
1403
1414
1407
1408
1402
1418
1419
1409
1413
1417
1405
1401
1409
1406
1416
1406
1404
1411
1411
1410
1412
1415
1409
1409
1406
Refer to “Handle-2”
P2.6 x 5
No. Part No. SP Description
1401 A-2060-136-A s HS1003_ MOUNT
1402 A-2063-661-A s SERVICE, COVER (UPPER) ASSY
1403 A-2197-634-A s HANDLE BLOCK ASSY
1404 X-2592-389-1 s HOLDER (931) ASSY, MICROPHONE
1405 1-480-298-11 s SWITCH BLOCK, CONTROL(GZ92000)
1406 2-630-005-31 s SCREW(M2),NEW TRUSTER,P2 [M2 x
4]
1407 2-630-005-41 s SCREW(M2),NEW TRUSTER,P2 [M2 x
6]
1408 3-069-286-04 s SHOE, ACCESSORY
1409 3-080-206-21 s SCREW, TAPPING, P2 [M2 x 5]
1410 3-284-075-03 s COVER,MICROPHONE HOLDER RUBBER
1411 3-284-081-11 s SHEET, RUBBER ADHESIVE
No. Part No. SP Description
1412 3-284-621-11 s CUSHION, MICROPHONE HOLDER
1413 3-288-483-01 s SPRING, SS LOCK
1414 3-288-615-03 s SPRING, SHOE
1415 4-119-861-01 s RUBBER (93000), HOLDER
1416 4-269-035-01 s PLATE, SHOE TRIPOD
1417 4-544-458-01 s HANDLE (UPPER), GROUND PLATE
1418 4-544-459-01 s SWITCH, HN-ZOOM SLIDE
1419 4-544-460-01 s BASE, HN-ZOOM SLIDE
7-627-556-58 s SCREW +P 2.6X5
HXR-NX80/HXR-MC88
6-16

Sony HXR-NX80 Specifications

General

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Video resolutions	1280 x 720, 1440 x 1080, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Supported video modes	1080p, 2160p
Video formats supported	AVC, AVCHD, H.264, MPEG4
Maximum video resolution	3840 x 2160 pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
Built-in microphone	Yes
Audio formats supported	LPCM
Digital zoom	- x
Optical zoom	12 x
Focal length range	9.3 - 111.6 mm
Interchangeable lens	-
Focal length (35mm film equivalent)	32.8 - 393.6 mm
Camera shutter speed	1/10000 s
Display diagonal	3.46 \
Display resolution (numeric)	1560000 pixels
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Sensor type	CMOS
Total megapixels	14.2 MP
Optical sensor size	1 \
PictBridge	No
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Internal storage capacity	- GB
Battery type	NP-FV70A
Battery voltage	7.4 V
Battery capacity	- mAh
Battery life (max)	4.4 h
Battery technology	Lithium
Focus adjustment	Auto/Manual
Closest focusing distance	0.01 m
Viewfinder type	Electronic
Viewfinder resolution	2360000 pixels
Viewfinder screen size	0.39 \
Camcorder type	Handheld camcorder
Minimum illumination	1.7 lx
Product color	Black
Cables included	USB
Number of batteries included	1 pc(s)
Maximum image resolution	- pixels

Weight and Dimensions

Depth	287 mm
Width	130 mm
Height	181.5 mm
Weight	1320 g
