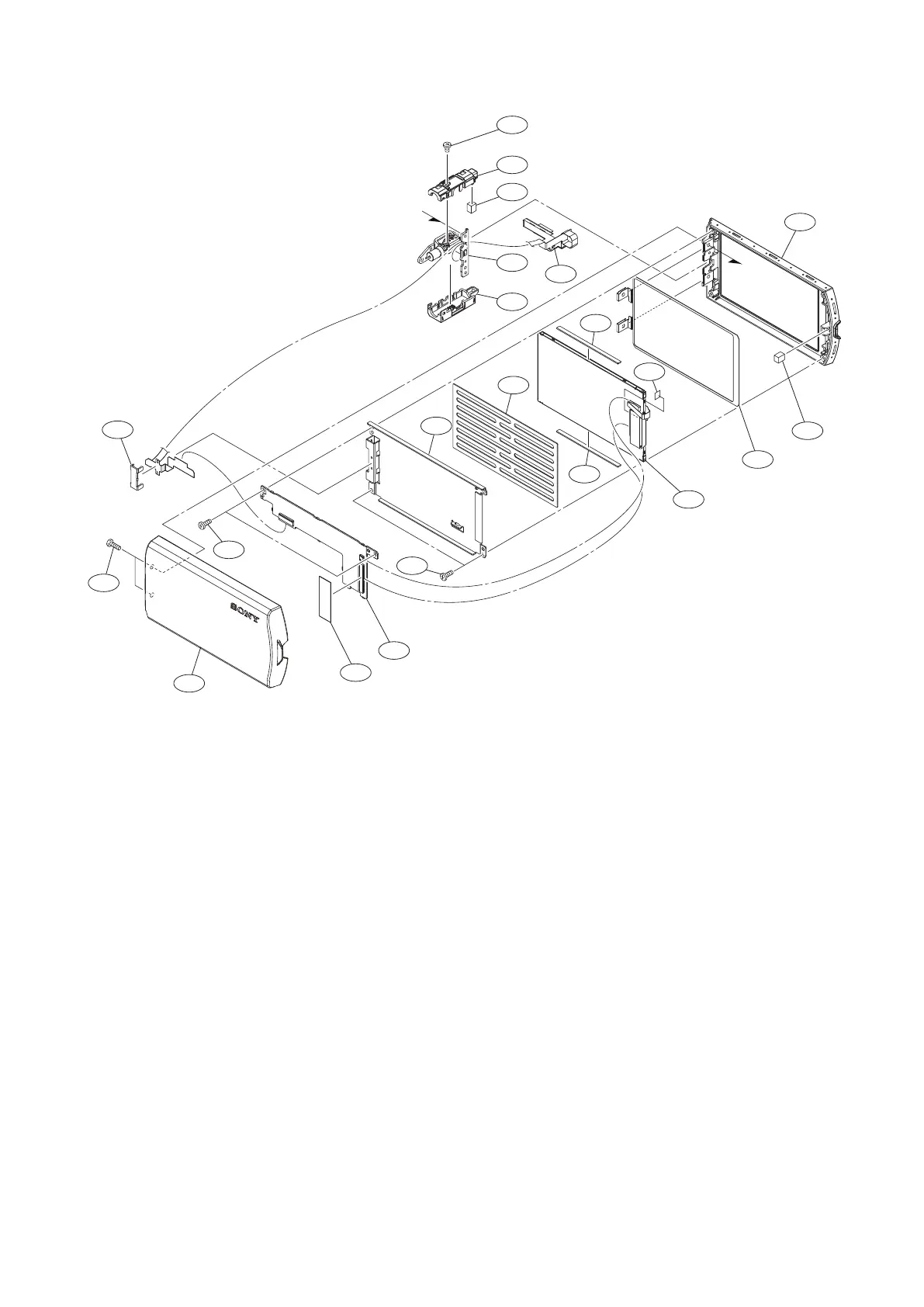

LCD Block
a
a
707
*1: This screw cannot be reused. Discard the screw removed
once in servicing. Instead, use a new screw.
*1
716
705
715
704
706
713
705
714
701
710
719
709
718
708
703
711
717
708
712
702
718
No. Part No. SP Description
701 A-2047-015-A s DISPLAY MODULE(MH2-WDJDD)
702 A-2189-085-A s MOUNT, PD-1054
703 A-2199-367-A s SERVICE, P CABINET C (914)
[For HXR-NX80]
A-2199-368-A s SERVICE, P CABINET (C (916))
[For HXR-MC88]
704 X-2592-272-1 s HINGE (S (A)) ASSY, T TYPE
705 1-471-573-21 s MAGNET
706 1-893-402-11 s FP-2264 FLEXIBLE PWB
707 2-187-345-21 s SCREW(M1.7),P2 [P1.7 x 2.5]
708 3-078-890-11 s SCREW, TAPPING [P1.7 x 4]
709 4-136-717-21 s SHEET (K)
710 4-283-280-11 s CUSHION (91000), LCD
711 4-287-436-31 s SCREW (M1.7) [P1.7 x 5]
712 4-431-734-01 s TAPE AS
713 4-532-965-11 s CABINET (M), P
714 4-532-967-02 s PLATE (P), ELECTROSTATIC
715 4-532-969-02 s COVER (O), HINGE
716 4-532-970-01 s COVER (U), HINGE
717 4-532-971-01 s CLAMP, FLEXIBLE
718 4-544-433-01 s SPACER, LCD
719 4-544-441-01 s RETAINER, LCD
HXR-NX80/HXR-MC88
