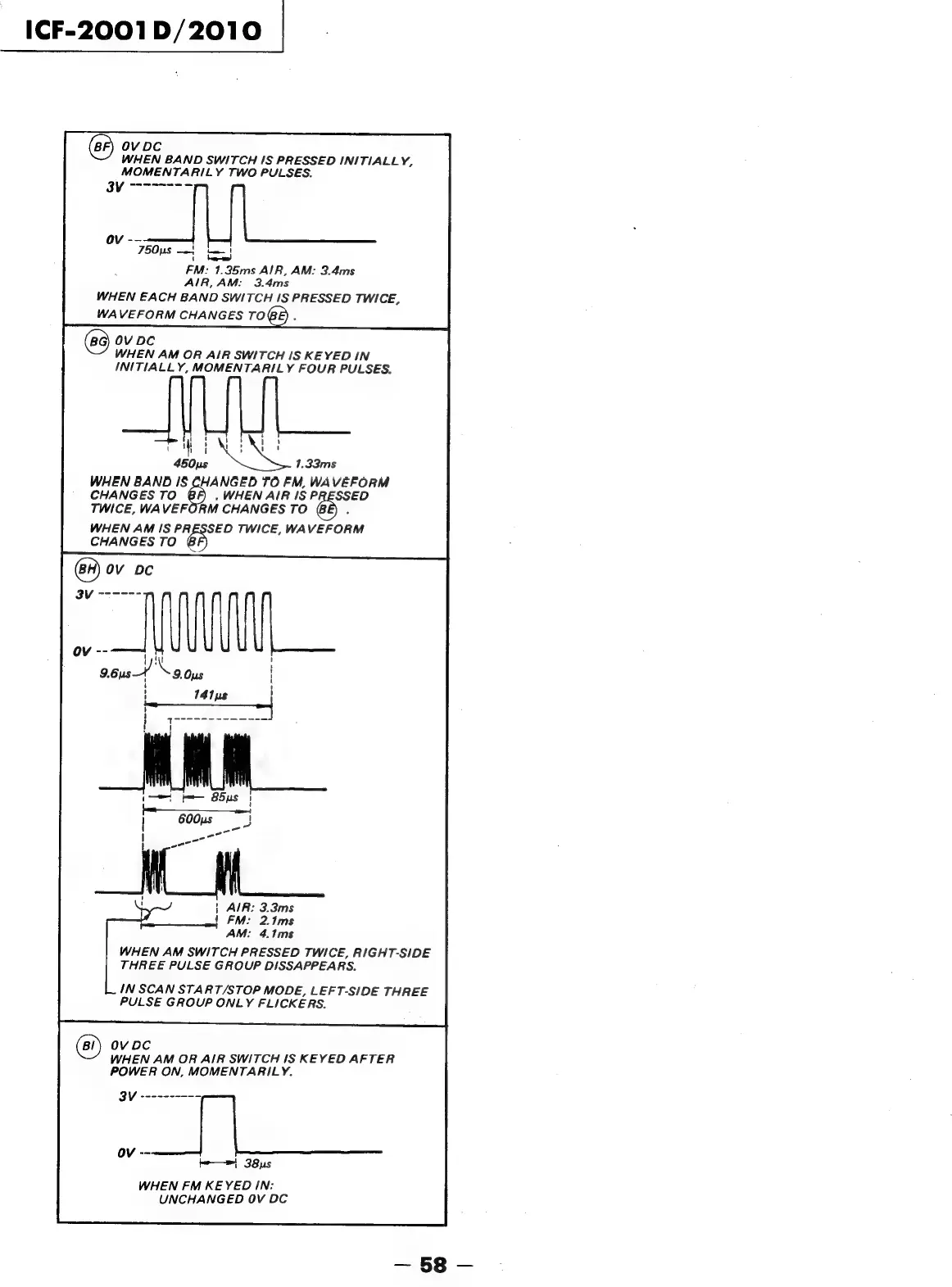

Sony ICF-2001D - Sample Waveforms (Continued); Waveform Examples BF-BI

ICF-2001D/2010
(aP) ovpc
WHEN BAND SWITCH IS PRESSED INITIALLY,
MOMENTARILY TWO PULSES.
FM: 1.35ms AIR, AM: 3.4ms
AIR, AM: 3.4ms
WHEN EACH BAND SWITCH IS PRESSED TWICE,
WAVEFORM CHANGES TO@
(8g ov pc
WHEN AM OR AIR SWITCH IS KEYED IN
INITIALLY, MOMENTARILY FOUR PULSES.
ih
1 7 N
450us 1.33ms
WHEN BAND I$ CHANGED TO FM, WAVEFORM
CHANGES TO . WHEN AIR IS PRESSED
TWICE, WAVEFORM CHANGES TO
WHEN AM IS PRESSED TWICE, WAVEFORM
CHANGES TO
1 FM: 2.1ms
AM: 4.1ms
WHEN AM SWITCH PRESSED TWICE, RIGHT-SIDE
THREE PULSE GROUP DISSAPPEARS.
IN SCAN START/STOP MODE, LEFT-SIDE THREE
PULSE GROUP ONLY FLICKERS.
(8!) ovoc
WHEN AM OR AIR SWITCH IS KEYED AFTER
POWER ON, MOMENTARILY.
ov --
he 38us
WHEN FM KEYED IN:
UNCHANGED OV DC
