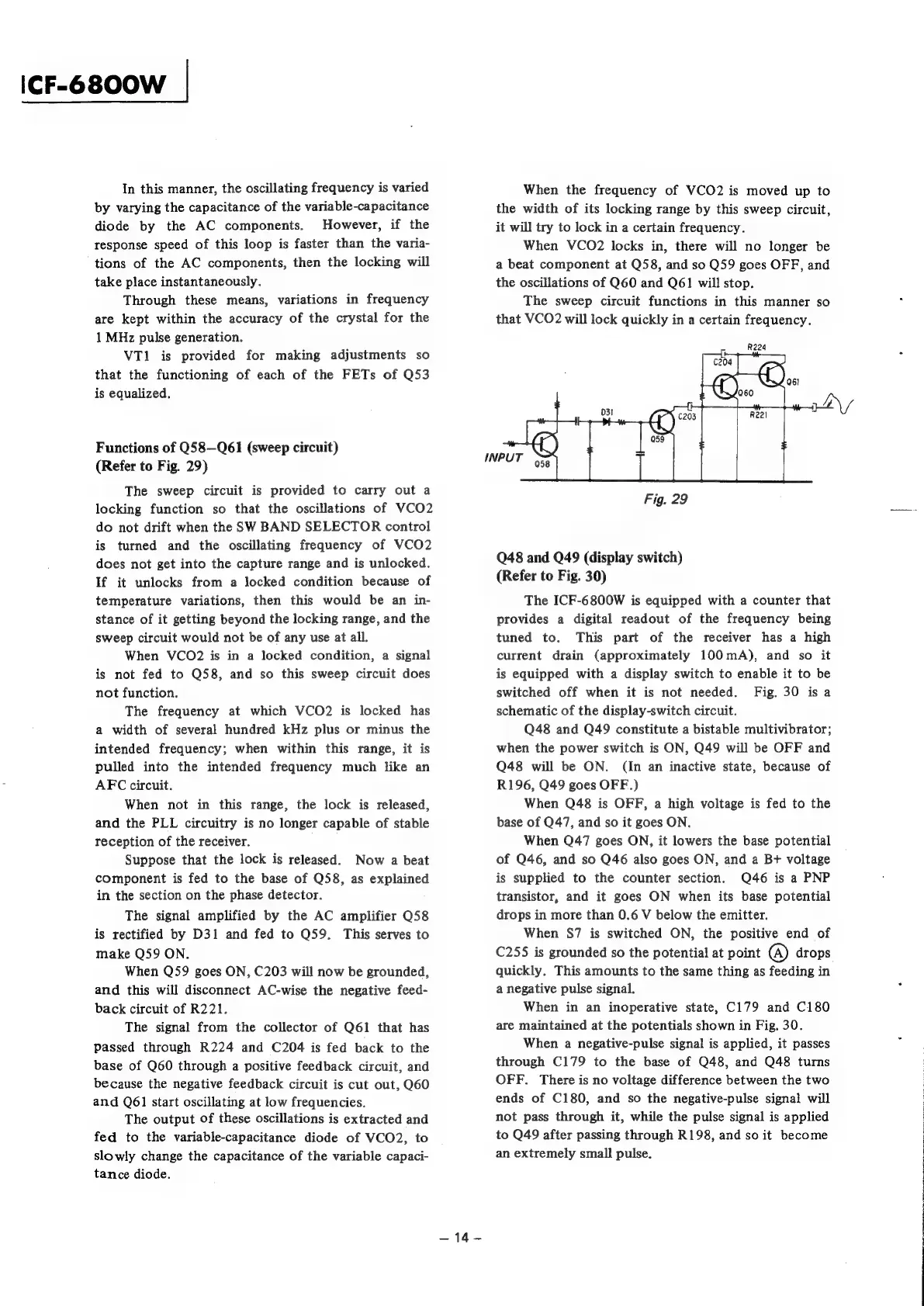

ICF-6800W
|
In
this
manner,
the
oscillating
frequency
is
varied
by
varying
the
capacitance
of
the
variable-capacitance
diode
by
the
AC
components.
However,
if
the
response
speed
of
this
loop
is
faster
than
the
varia-
tions
of
the
AC
components,
then
the
locking
will
take
place
instantaneously.
Through
these
means,
variations
in
frequency
are
kept
within
the
accuracy
of
the
crystal
for
the
1
MHz
pulse
generation.
VT1
is
provided
for
making
adjustments
so
that
the
functioning
of
each
of
the
FETs
of
Q53
is
equalized.
Functions
of
Q58—Q61
(sweep
circuit)
(Refer
to
Fig.
29)
The
sweep
circuit
is
provided
to
carry
out
a
locking
function
so
that
the
oscillations
of
VCO2
do
not
drift
when
the
SW
BAND
SELECTOR
control
is
turned
and
the
oscillating
frequency
of
VCO2
does
not
get
into
the
capture
range
and
is
unlocked.
If
it
unlocks
from
a
locked
condition
because
of
temperature
variations,
then
this
would
be
an
in-
stance
of
it
getting
beyond
the
locking
range,
and
the
sweep
circuit
would
not
be
of
any
use
at
all.
When
VCO2
is
in
a
locked
condition,
a
signal
is
not
fed
to
Q58,
and
so
this
sweep
circuit
does
not
function.
The
frequency
at
which
VCO2
is
locked
has
a
width
of
several
hundred
kHz
plus
or
minus
the
intended
frequency;
when
within
this
range,
it
is
pulled
into
the
intended
frequency
much
like
an
AFC
circuit.
When
not
in
this
range,
the
lock
is
released,
and
the
PLL
circuitry
is
no
longer
capable
of
stable
reception
of
the
receiver.
Suppose
that
the
lock
is
released.
Now
a
beat
component
is
fed
to
the
base
of
Q58,
as
explained
in
the
section
on
the
phase
detector.
The
signal
amplified
by
the
AC
amplifier
Q58
is
rectified
by
D31
and
fed
to
Q59.
This
serves
to
make
Q59
ON.
When
Q59
goes
ON,
C203
will
now
be
grounded,
and
this
will
disconnect
AC-wise
the
negative
feed-
back
circuit
of
R221.
The
signal
from
the
collector
of
Q61
that
has
passed
through
R224
and
C204
is
fed
back
to
the
base
of
Q60
through
a
positive
feedback
circuit,
and
because
the
negative
feedback
circuit
is
cut
out,
Q60
and
Q6]
start
oscillating
at
low
frequencies.
The
output
of
these
oscillations
is
extracted
and
fed
to
the
variable-capacitance
diode
of
VCO2,
to
slowly
change
the
capacitance
of
the
variable
capaci-
tance
diode.
—14-
When
the
frequency
of
VCO2
is
moved
up
to
the
width
of
its
locking
range
by
this
sweep
circuit,
it
will
try
to
lock
in
a
certain
frequency.
When
VCO2
locks
in,
there
will
no
longer
be
a
beat
component
at
Q58,
and
so
Q59
goes
OFF,
and
the
oscillations
of
Q60
and
Q61
will
stop.
The
sweep
circuit
functions
in
this
manner
so
that
VCO2
will
lock
quickly
in
a
certain
frequency.
Fig.
29
Q48
and
Q49
(display
switch)
(Refer
to
Fig.
30)
The
ICF-6800W
is
equipped
with
a
counter
that
provides
a
digital
readout
of
the
frequency
being
tuned
to.
This
part
of
the
receiver
has
a
high
current
drain
(approximately
100mA),
and
so
it
is
equipped
with
a
display
switch
to
enable
it
to
be
switched
off
when
it
is
not
needed.
Fig.
30
is
a
schematic
of
the
display-switch
circuit.
Q48
and
Q49
constitute
a
bistable
multivibrator;
when
the
power
switch
is
ON,
Q49
will
be
OFF
and
Q48
will
be
ON.
(In
an
inactive
state,
because
of
R196,
Q49
goes
OFF.)
When
Q48
is
OFF,
a
high
voltage
is
fed
to
the
base
of
Q47,
and
so
it
goes
ON.
When
Q47
goes
ON,
it
lowers
the
base
potential
of
Q46,
and
so
Q46
also
goes
ON,
and
a
B+
voltage
is
supplied
to
the
counter
section.
Q46
is
a
PNP
transistor,
and
it
goes
ON
when
its
base
potential
drops
in
more
than
0.6
V
below
the
emitter.
When
S7
is
switched
ON,
the
positive
end
of
C255
is
grounded
so
the
potential
at
point
@)
drops
quickly.
This
amounts
to
the
same
thing
as
feeding
in
a
negative
pulse
signal.
When
in
an
inoperative
state,
C179
and
C180
are
maintained
at
the
potentials
shown
in
Fig.
30.
When
a
negative-pulse
signal
is
applied,
it
passes
through
C179
to
the
base
of
Q48,
and
Q48
turns
OFF.
There
is
no
voltage
difference
between
the
two
ends
of
C180,
and
so
the
negative-pulse
signal
will
not
pass
through
it,
while
the
pulse
signal
is
applied
to
Q49
after
passing
through
R198,
and
soit
become
an
extremely
small
pulse.
