Sony ICF-6800W - Middle Case Removal

ICF-6800W

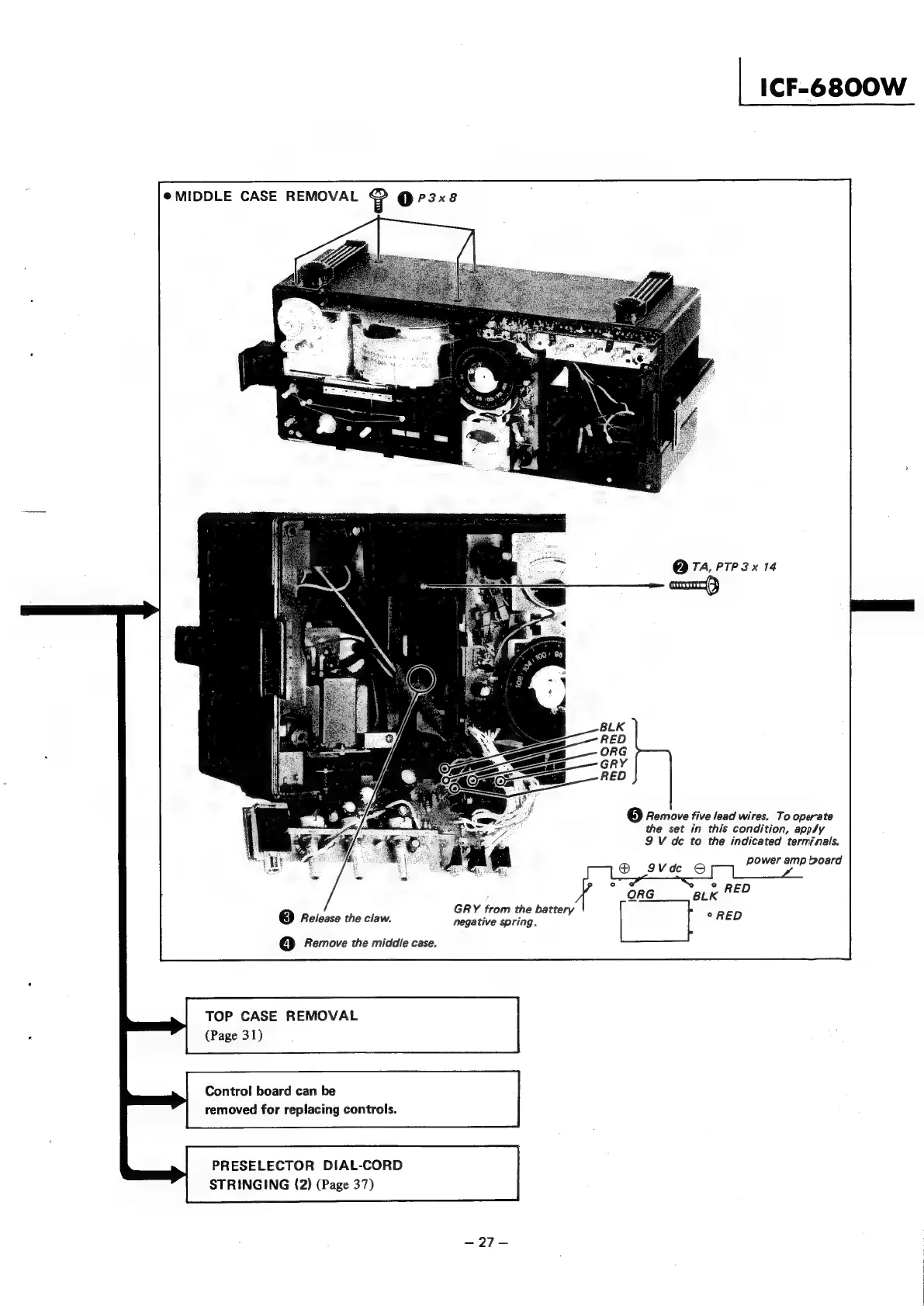

@®MIDDLE CASE REMOVAL g @P3xe
Q TA, PTP3 x 14
5] Remove five lead wires. To operate
the set in this condition, apply
39 V dc to the indicated terminals.
® 9Vde 6 power amp Board
GRY from the battery
(3) Release the claw. negative spring.
@ Remove the midale case.
TOP CASE REMOVAL
(Page 31)
Control board can be
removed for replacing controls.
PRESELECTOR DIAL-CORD
STRINGING (2) (Page 37)
