MIDDLE-CASE REMOVAL (Page 27)

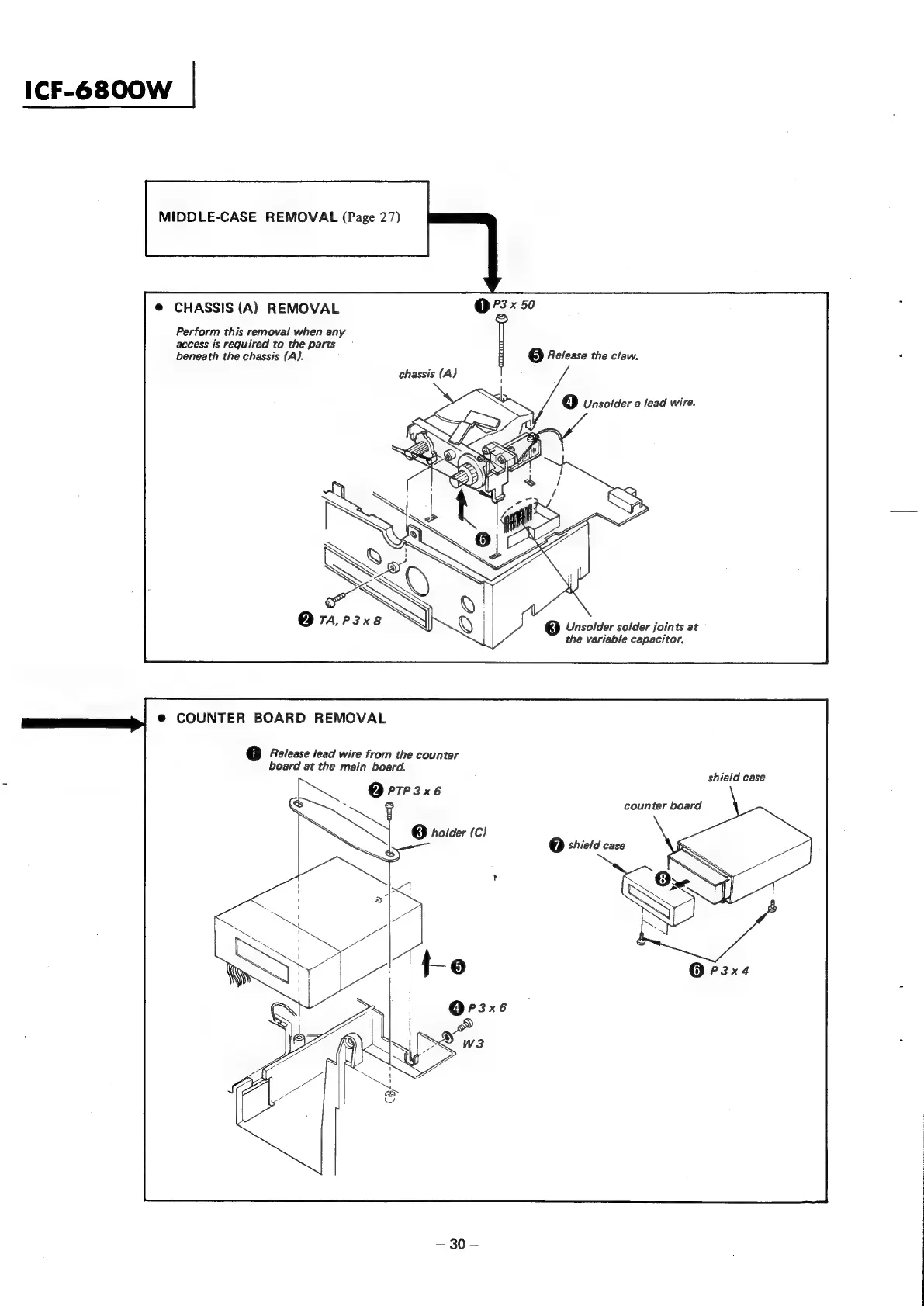

© CHASSIS (A) REMOVAL @°3 x 50
Perform this removal when any
access is required to the parts
beneath the chassis (A). @ Release the claw.
chassis (A)
Unsolder solder joints at
the variable capacitor.
@ COUNTER BOARD REMOVAL
@ Release lead wire from the counter
board at the main board.
shield case
@ pre 3x6
*
|
counter
board
© holder (Cc)
@ shield case
