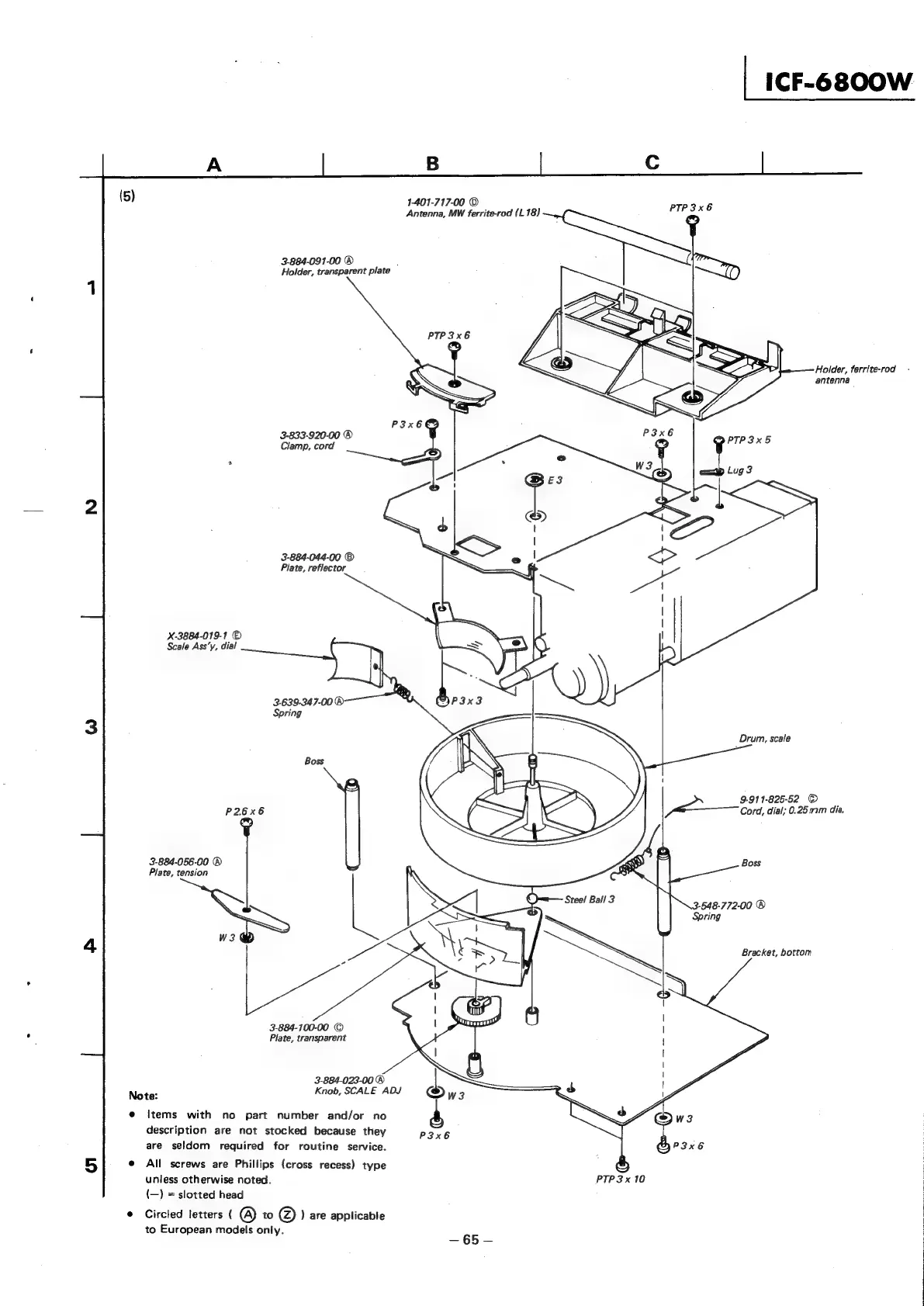

iCF-6800W
(5) 1-401-717-00 © PTP3x6
Antenna, MW ferrite-rod {L 18}
3-884-091-00 ®
Holder, transparent plate
PTP 3x6
Holder, ferrite-rod
antenna
3-833-920-00 ® PTP3x5
Clamp, cord
: Lug 3
3-884-044-00 ®
Plate, reflector
X-3884-019-1 ©
Scale Ass’y, dial =
3-639-347-00 ® ; P3x3
Spring
Drum, scale
Boss /
1
9-911-825-52 ©
P26x6
Cord,
dial;
0.25mm
dia,
3-884-056-00 ® Boss
Plate, tension
W3
Bracket, bottom
3-884-100-00 ©
Plate, transparent
3-884-023-00 ® |
Note: Knob, SCALE ADJ) =@)
e@ items with no part number and/or no
description are not stocked because they P3x6
are seldom required for routine service.
e
All
screws
are
Phillips
(cross
recess)
type
&
unless otherwise noted. PTP3x 10
(—) = slotted head
© Circled letters ( @ to @ ) are applicable
to European models only.
