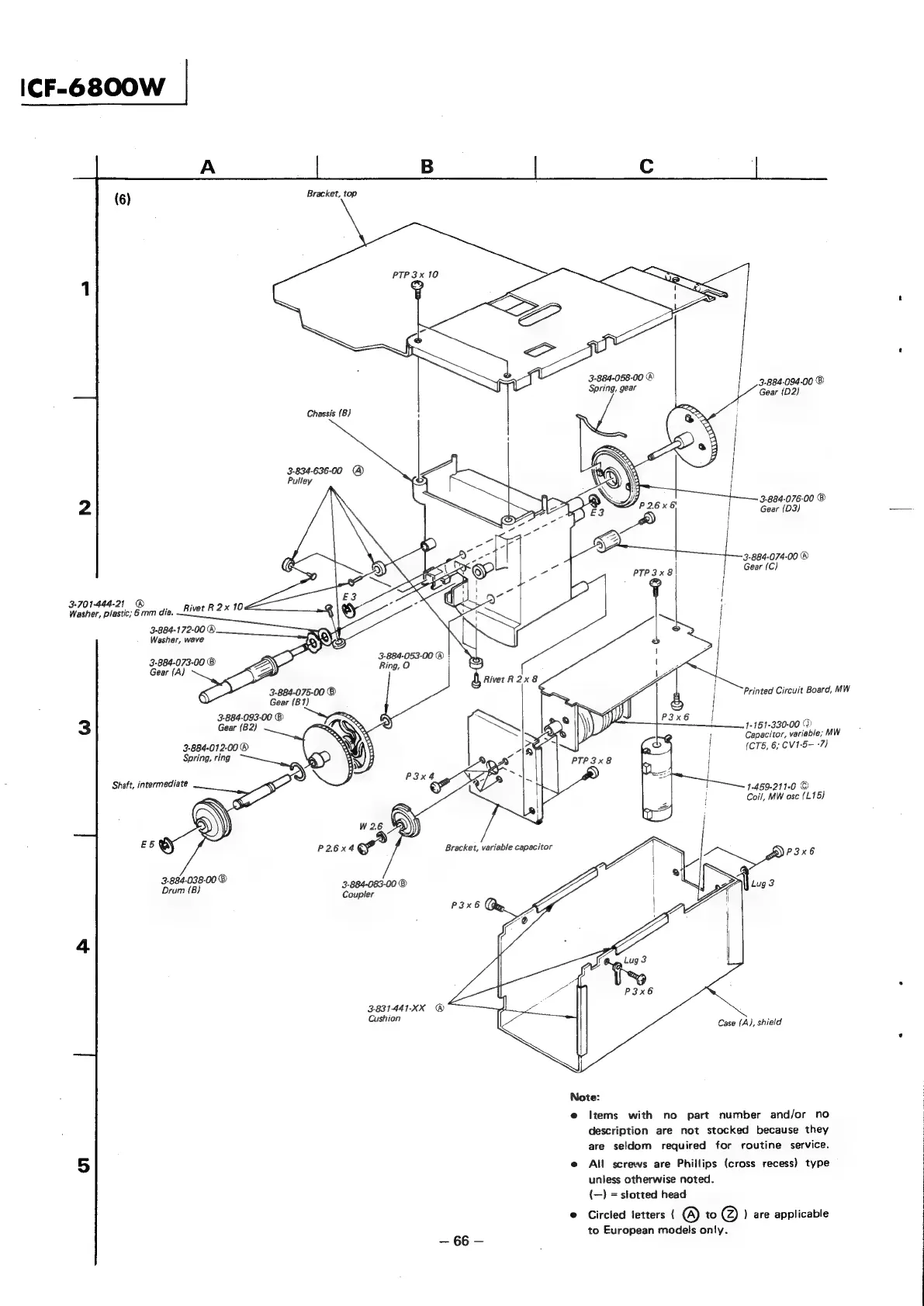

Sony ICF-6800W - Page 54

ICF-6800W
(6)
Bracket,
top
PTP3x 10
3-884-094-00 ®
Gear (D2)
Chassis (8)
3-834-636-00 @
Pulley
3-884-076-00 ®
Gear (D3)
3-884-074-00 ®
Gear (C)
3-701-444-21 ®
Washer, plastic; 6 mm dia.
3-884-172-00
®.
.
Washer,
wave
IOS
3-884-073-00
®
oo
®
i
-
|
Printed Circuit Board, MW
1-151-330-00 (3)
Capacitor, variable; Mw
(CT5, 6; CV1-5— -7)
Gear (A) -
3-884-075-00 ®
Gear (81)
3-884-093-00 ©)
3
Gear
(B2)
3-884-012-00 B®
Spring, ring
f)
Shaft,
intermediate
P3x4
1-459-211-0
©
Coil, MW osc (L15)
W 26
rT da
-884-038-00 B
nes
a)
=
3-884-083-00
®
Coupler
ES
3-831-441-XX ®
Cushion
Case (A), shield
Note:
e@ Items with no part number and/or no
description are not stocked because they
are seldom required for routine service.
