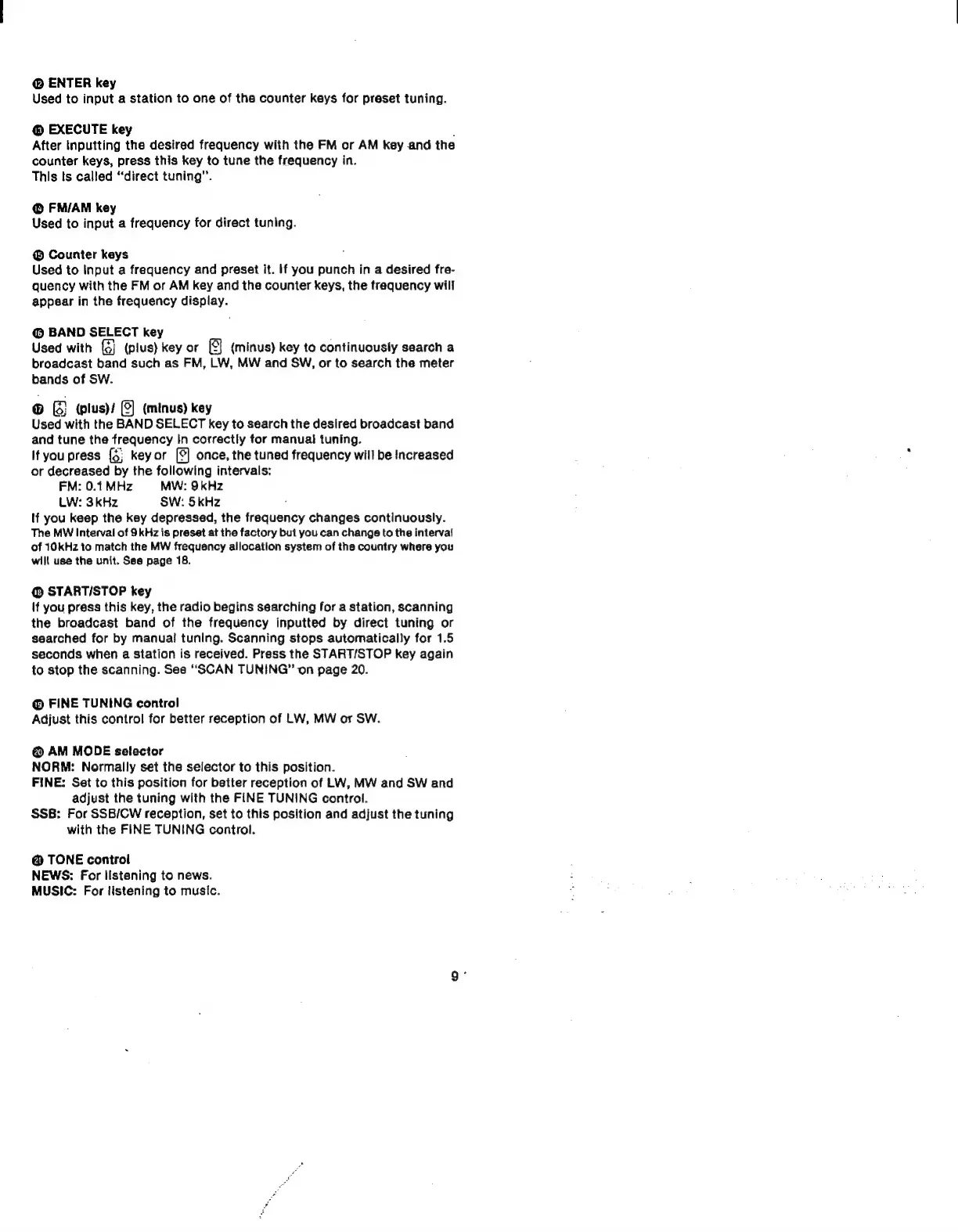

ENTER
key
Used
to
input
a
station
to
one
of
the
counter
keys
for
preset
tuning.
(9
EXECUTE
key
.
After
inputting
the
desired
frequency
with
the
FM
or
AM
key
and
the
counter
keys,
press
this
key
to
tune
the
frequency
in.
This
ts
called
“direct
tuning".
Ф
FM/AM
key
Used
to
input
a
frequency
for
direct
tuning.
Ф
Counter
keys
Used
to
Input
a
frequency
and
preset
it.
If
you
punch
in
a
desired
fre-
quency
with
the
FM
or
AM
key
and
the
counter
keys,
the
frequency
will
appear
in
the
frequency
display.
Ф
BAND
SELECT
key
Used
with
а
(plus)
Key
or
(minus)
key
to
continuously
search
a
broadcast
band
such
as
FM,
LW,
MW
and
SW,
or
to
search
the
meter
bands
of
SW.
Ф
Б)
(plus)/
(€)
(minus)
key
Used
with
the
BAND
SELECT
key
to
search
the
desired
broadcast
band
and
tune
the
frequency
in
correctly
for
manual
tuning.
If
you
press
(5;
key
ог
once,
the
tuned
frequency
will
be
Increased
or
decreased
by
the
following
intervals:
FM:
0.1
MHz
MW:
9
kHz
LW:
3kHz
SW:
5kHz
If
you
keep
the
key
depressed,
the
frequency
changes
continuously.
The
MW
Interval
of
9
kHz
is
preset
at
the
factory
but
you
can
change
to
the
interval
of
10kHz
to
match
the
MW
frequency
allocation
system
of
the
country
where
you
will
use
the
unit.
See
page
18.
Ф
START/STOP
key
If
you
press
this
key,
the
radio
begins
searching
for
a
station,
scanning
the
broadcast
band
of
the
frequency
inputted
by
direct
tuning
or
searched
for
by
manual
tuning.
Scanning
stops
automatically
for
1.5
seconds
when
a
station
is
received.
Press
the
START/STOP
key
again
to
stop
the
scanning.
See
"SCAN
TUNING"
on
page
20.
(p
FINE
TUNING
control
Adjust
this
control
for
better
reception
of
LW,
MW
or
SW.
6)
AM
MODE
selector
NORM:
Normally
set
the
selector
to
this
position.
FINE:
Set
to
this
position
for
better
reception
of
LW,
MW
and
SW
and
adjust
the
tuning
with
the
FINE
TUNING
control.
SSB:
For
SSB/CW
reception,
set
to
this
position
and
adjust
the
tuning
with
the
FINE
TUNING
control.
@
TONE
control
NEWS:
For
listening
to
news.
MUSIC:
For
listening
to
music.
