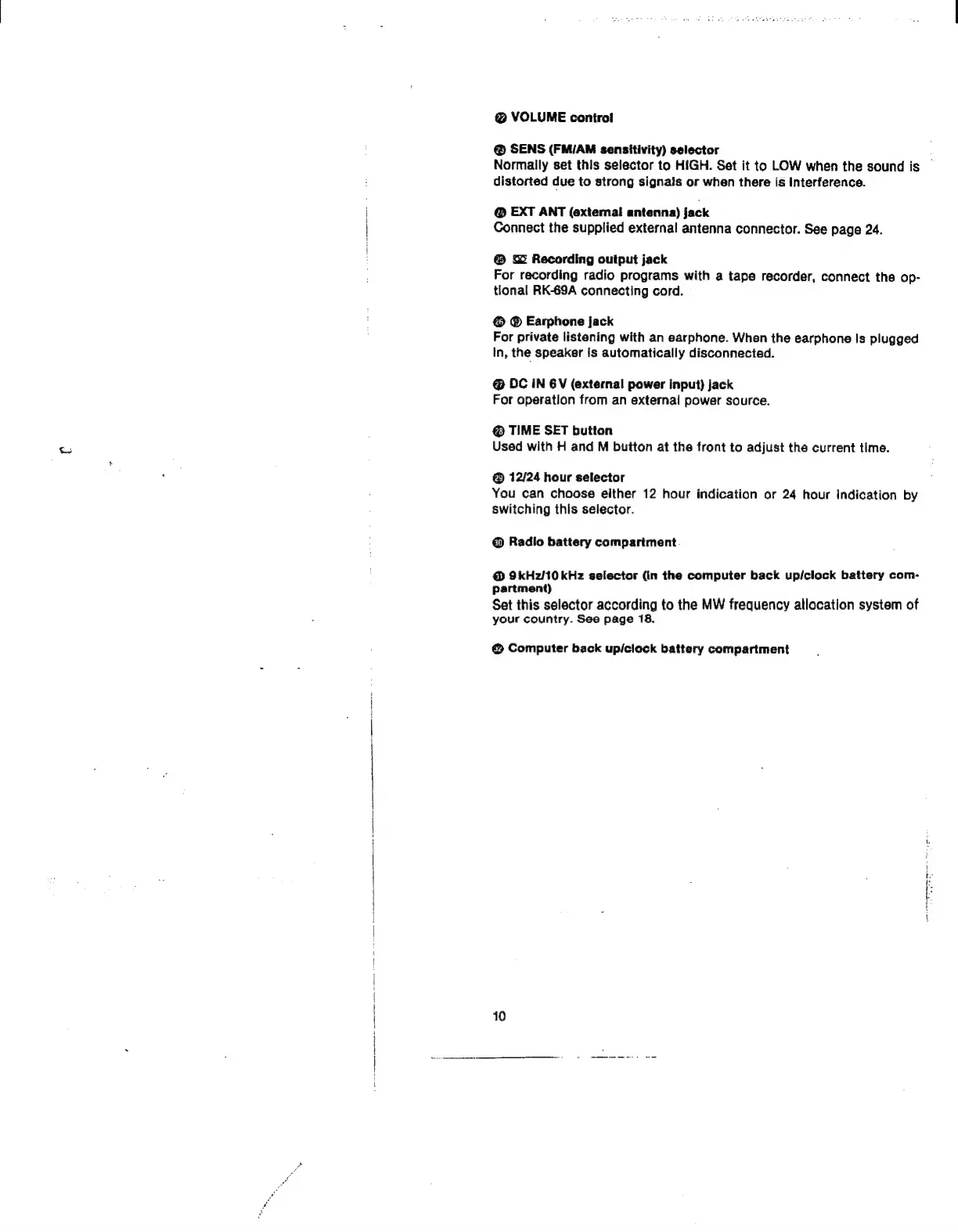

@ VOLUME control
@ SENS (FM/AM sensitivity) selector
Normally set this selector to HIGH. Set it to LOW when the sound is
distorted due to strong signals or when there is interference.
@ EXT ANT (external antenna) jack
Connect the supplied external antenna connector. See page 24.
Ө © Recording output jack
For recording radio programs with a tape recorder, connect the op-
tional RK-69A connecting cord.
€» ® Earphone jack
For private listening with an earphone. When the earphone Is plugged
In, the speaker is automatically disconnected.
@ DC IN 6V (external power input) Jack
For operation from an external power source.
@ TIME SET button
Used with H and M button at the front to adjust the current time.
© 12/24 hour selector
You can choose either 12 hour indication or 24 hour indication by
switching this selector.
Ф Radio battery compartment.
© 9kHz/10 kHz selector (in the computer back up/clock battery com-
partment)
Set this selector according to the MW frequency allocation system of
your country. See page 18.
@ Computer back up/clock battery compartment
