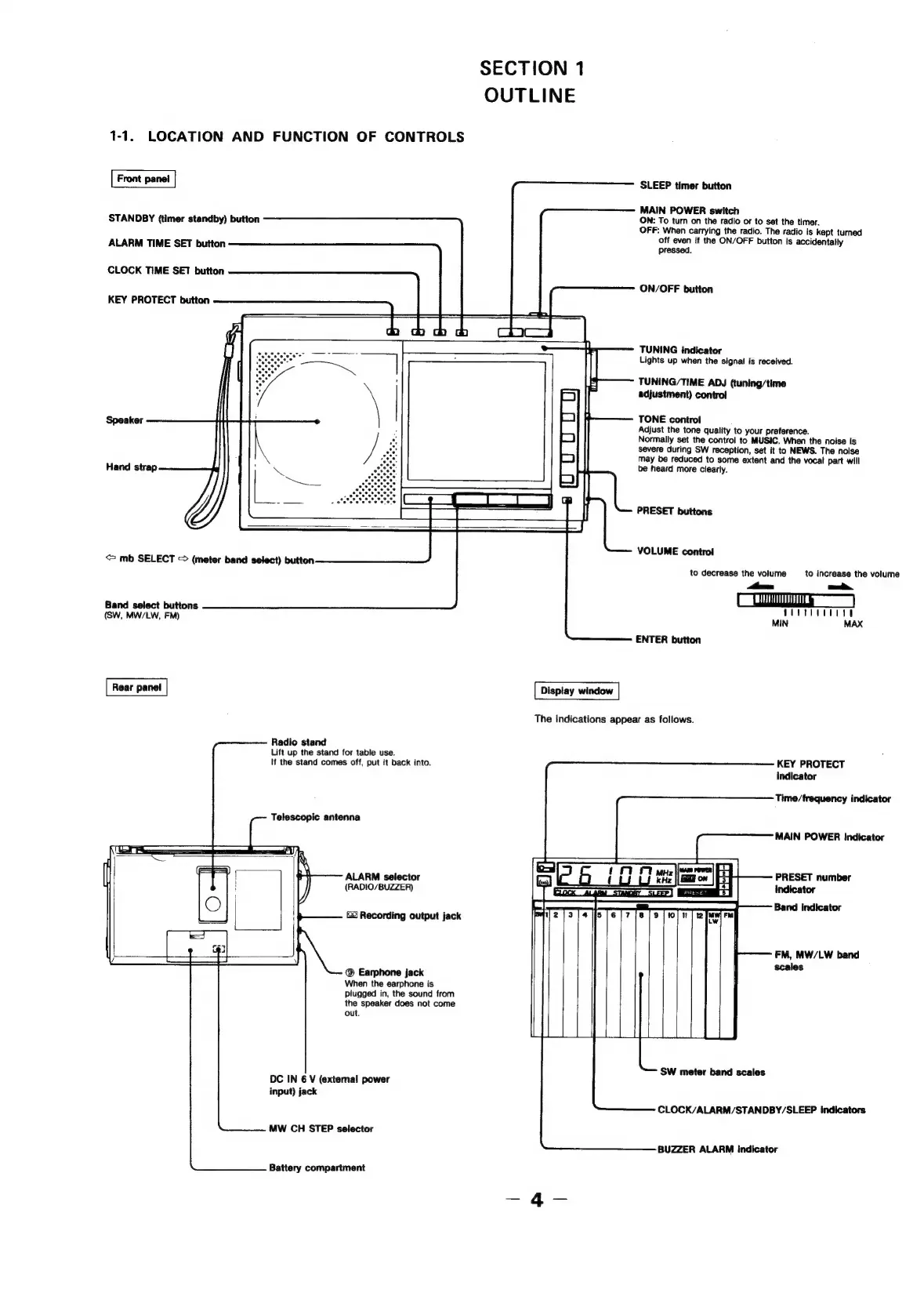

1-1. LOCATION AND FUNCTION OF CONTROLS
Front panel
STANDBY (timer standby) button
ALARM TIME SET button
CLOCK TIME SET button
KEY PROTECT button
SECTION 1
OUTLINE
SLEEP timer button
MAIN POWER switch
ON: To turn on the radio or to set the timer.
OFF: When carrying the radio. The radio is kept turned
off even if the ON/OFF button is accidentally
pressed.
ON/OFF button
Speaker
Hand strap
TUNING indicator
Lights up when the signal is received.
TUNING/TIME ADJ (tuning/time
adjustment) control
TONE control
Adjust the tone quality to your preference.
Normally set the control to MUSIC. When the noise is
severe during SW reception, set it to NEWS. The noise
May be reduced to some extent and the vocal part will
be heard more clearly.
<= mb SELECT — (meter band select) button
Band select buttons
(Sw, MW/LW, FM)
Radio stand
Lift up the stand for table use.
If the stand comes off, put it back into.
Telescopic antenna
ALARM selector
(RADIO/BUZZER)
Recording output jack
@ Earphone jack
When the earphone is
plugged in, the sound from
the speaker does not come
out.
DC IN 6 V (extemal! power
input) jack
MW CH STEP selector
Battery compartment
PRESET buttons
VOLUME control
to decrease the volume to increase the volume
tome =
qerrieevige
MIN MAX
ENTER button
Display window
The indications appear as follows.
KEY PROTECT
indicator
Time/frequency indicator
MAIN POWER indicator
PRESET number
indicator
Band indicator
FM, MW/LW band
scales
SW meter band scales
CLOCK/ALARM/STANDBY/SLEEP indicators
BUZZER ALARM indicator
