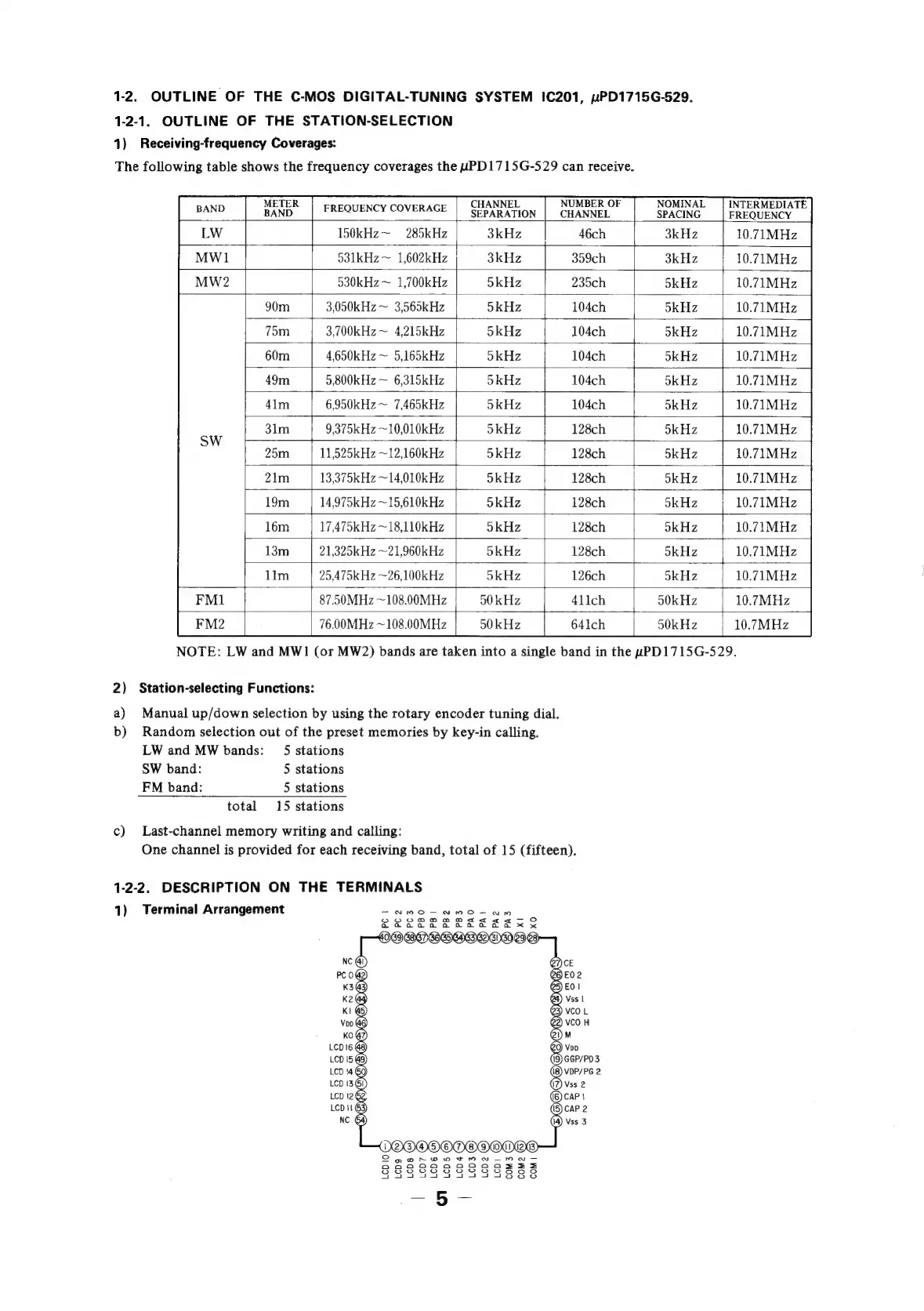

1-2. OUTLINE OF THE C-MOS DIGITAL-TUNING SYSTEM 1C201, uPD1715G-529.
1-2-1. OUTLINE OF THE STATION-SELECTION
1) Receiving-frequency Coverages:
The following table shows the frequency coverages the uPD1715G-529 can receive.
CHANNEL NUMBER OF NOMINAL | INTERMEDIATE
FREQUENCY COVERAGE | SrepaRATION | CHANNEL SPACING __| FREQUENCY
150kHz~ 285kHz | 3kHz | 46ch 3kHz 10.71MHz
d31kHz~ 1,602kHz 3kHz 359ch 3kHz 10.71MHz
030kHz~ 1,700kHz 5kHz 235ch 5kHz 10.71MHz
3,050kHz~ 3,565kHz 5kHz 104ch 5kHz 10.71MHz
3,700kHz~ 4,215kHz 5kHz 104ch 5kHz 10.71MHz
4,650kHz ~ 5,165kHz 5kHz 104ch okHz 10.71MHz
5,800kHz ~ 6,315kHz 5kHz 104ch 5kHz 10.71MHz
6,950kHz~ 7,465kHz 5kHz 104ch 5kHz 10.71MHz
9,375kHz ~10,010kHz 5kHz 128ch 5kHz 10.71MHz
11,525kHz ~12,160kHz 5kHz 128ch 5kHz 10.71MHz
13,375kHz ~14,010kHz 5kHz 128ch 5okHz 10.71MHz
14,975kHz ~15,610kHz 5kHz 128ch okHz 10.71IMHz
17,475kHz ~18,110kHz 5kHz 128ch okHz 10.71MHz
21,325kHz ~21,960kHz 5kHz 128ch okHz | 10.71MHz
25,475kHz ~26,100kHz okHz 126ch okHz 10.71MHz
87.50MHz~108.00MHz | 50kHz 41l1ch ds0kHz 10.7MHz
76.00MHz ~ 108.00 MHz 30kHz | 50kHz 10.7MHz
NOTE: LW and MW1 (or MW2) bands are taken into a single band in the uPD1715G-529.
+
2) Station-selecting Functions:
a) Manual up/down selection by using the rotary encoder tuning dial.
b) Random selection out of the preset memories by key-in calling.
LW and MW bands: 5 stations
SW band: 5 stations
FM band: 5 stations
total 15 stations
c) Last-channel memory writing and calling:
One channel is provided for each receiving band, total of 15 (fifteen).
1-2-2. DESCRIPTION ON THE TERMINALS
1) Terminal Arrangement
((8) VDP/PG 2
(7) Vss 2
(cap |
(8) cap 2
(14) Vss 3
