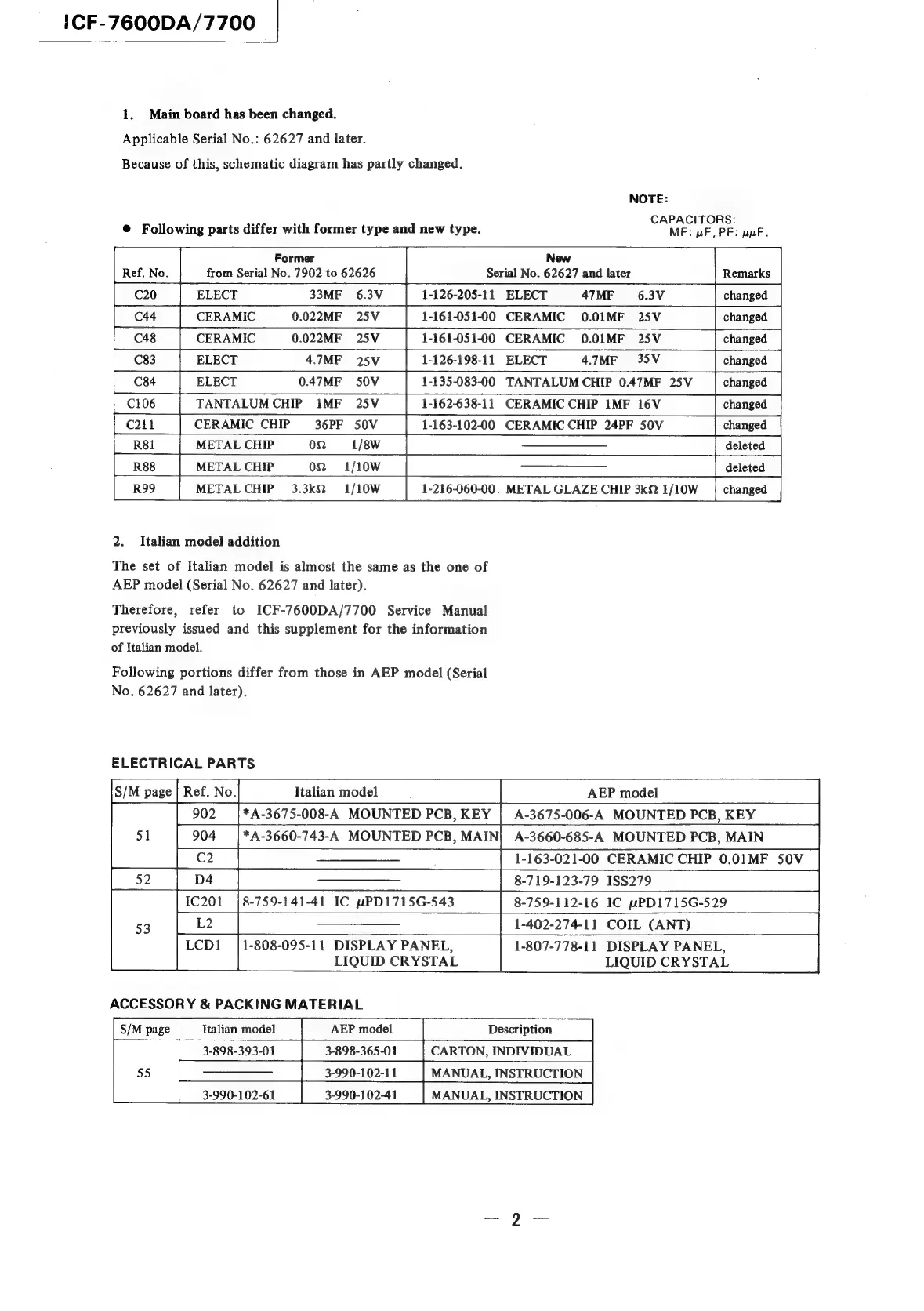

ICF-7600DA/7700
1. Main board has been changed.
Applicable Serial No.: 62627 and later.
Because of this, schematic diagram has partly changed.
NOTE:
i i : CAPACITORS:
@ Following parts differ with former type and new type. ME: uF, PE: gue.
—
Former New
Ref. No. from Serial No. 7902 to 62626 Serial No. 62627 and later Remarks
C20 ELECT 33MF 6.3V 1-126-205-11 ELECT 47MF changed
CERAMIC 0.022MF 1-161-051-00 CERAMIC 0.01MF changed
CERAMIC 0.022MF 1-161-051-00 CERAMIC 0.01MF changed
ELECT 4.7MF 1-126-198-11 ELECT 4.7MF changed
0.47MF 50V 1-135-083-00 TANTALUM CHIP 0.47MF 25V changed
TANTALUM CHIP iMF 25V 1-162-638-11 CERAMIC CHIP 1MF 16V changed
CERAMIC CHIP 36PF SOV 1-163-102-00 CERAMIC CHIP 24PF S0V changed
METAL CHIP 02 1/8W —————- deleted
METAL CHIP 02 = 1/10W oe ee deleted
R99 METAL CHIP 3.3k2 1/10W 1-216-060-00. METAL GLAZE CHIP 3k. 1/10W changed
2. Italian model addition
The set of Italian model is almost the same as the one of
AEP model (Serial No. 62627 and later).
Therefore, refer to ICF-7600DA/7700 Service Manual
previously issued and this supplement for the information
of Italian model.
Following portions differ from those in AEP model (Serial
No. 62627 and later).
ELECTRICAL PARTS
S/M page | Ref. No. Italian model : AEP model
*A-3675-008-A MOUNTED PCB, KEY | A-3675-006-A MOUNTED PCB, KEY
*A-3660-743-A MOUNTED PCB, MAIN! A-3660-685-A MOUNTED PCB, MAIN
1-163-021-00 CERAMIC CHIP 0.01MF 50V
8-719-123-79 ISS279
8-759-141-41 IC pwPD1715G-543 8-759-112-16 IC pPD1715G-529
1-402-274-11 COIL (ANT)
1-808-095-11 DISPLAY PANEL, 1-807-778-11 DISPLAY PANEL,
LIQUID CRYSTAL LIQUID CRYSTAL
AEP model
3-898-365-01
3-990-102-11
3-990-102-41
Description
CARTON, INDIVIDUAL
MANUAL, INSTRUCTION
MANUAL, INSTRUCTION
| S/M page | Italian model
3-898-393-01
3-990-102-61
