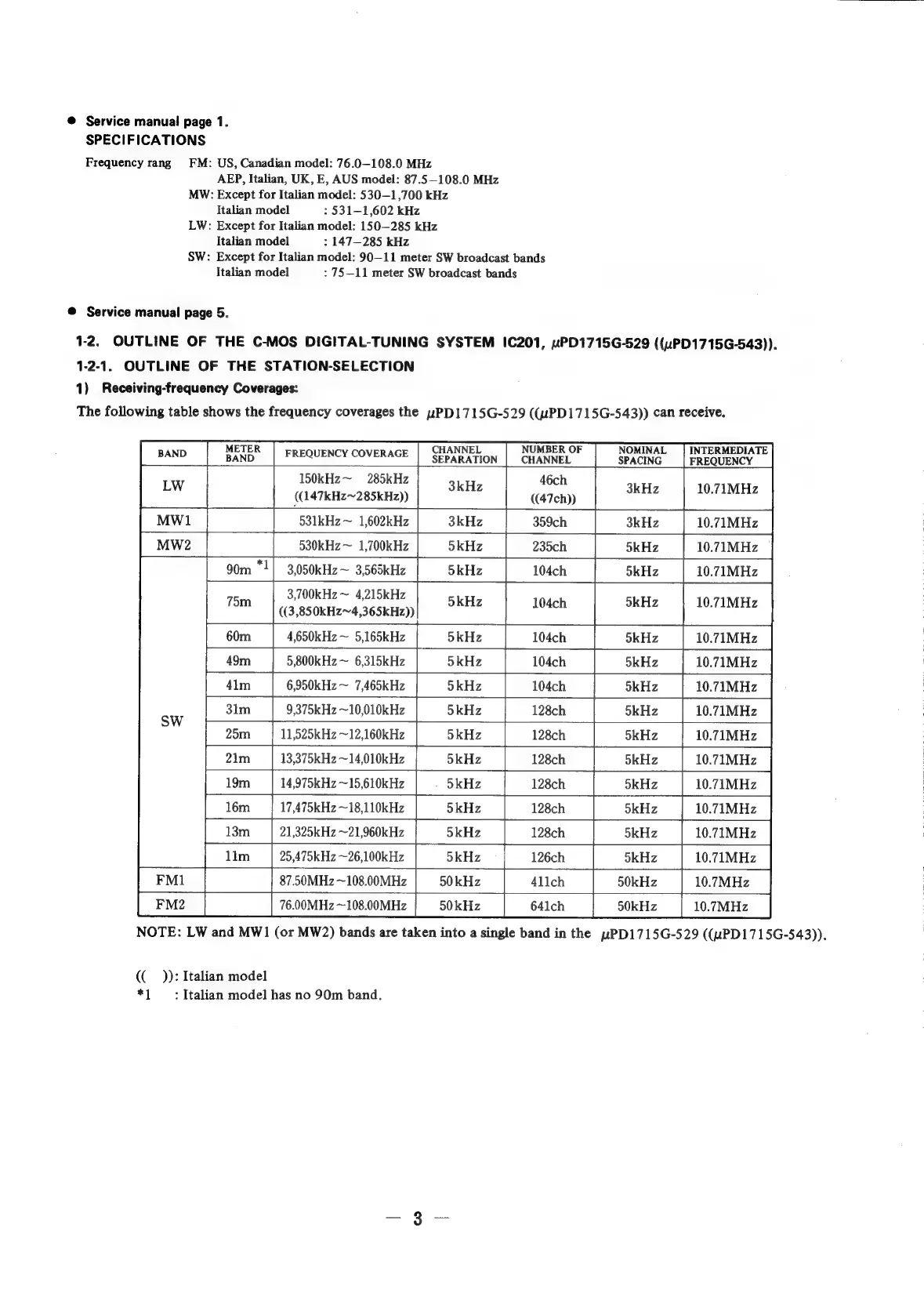

@ Service manual page 1.
SPECIFICATIONS
Frequency rang FM: US, Canadian model: 76.0—108.0 MHz
AEP, Italian, UK, E, AUS model: 87.5—108.0 MHz
MW: Except for Italian model: 530—1,700 kHz
Italian model : $31-1,602 kHz
LW: Except for Italian model: 150-285 kHz
Italian model : 147—285 kHz
SW: Except for Italian model: 90—11 meter SW broadcast bands
Italian model : 75-11 meter SW broadcast bands
@ Service manual page 5.
1-2. OUTLINE OF THE C-MOS DIGITAL-TUNING SYSTEM 1C201, uPD1715G-529 ((uPD1715G-543)).
1-2-1. OUTLINE OF THE STATION-SELECTION
1) Receiving-frequency Coverages:
The following table shows the frequency coverages the uPD1715G-529 ((uPD1715G-543)) can receive.
CHANNEL NUMBER OF NOMINAL | INTERMEDIATE
FREQUENCY COVERAGE | SepaRATION | CHANNEL SPACING | FREQUENCY
150kHz~ 285kHz
| ((147kHz~285kHz))
S31kH2~ 1,602kHz | 3kHz 359ch 10.71MHz
530kHz~ 1,700kHz | 5kHz 235ch 5kHz | 10.71MHz
90m *!) 3,050kHz~ 3,565kHz 104ch 5kHz | _10.71MHz
Tom | T00KHe 215K | Sti 10-71Me
60m | 4,650kKHz~ 5,165kHz 104ch 5kHz | 10.71MHz
49m | 5800kHz~ 6,315kHz 10.71MHz
4Im | 6,950kHz~ 7,465kHz 104ch 5kHz 10.71MHz
31m | 9,375kHz~10,010kHz 128ch 5kHz 10.71MHz
25m | 11,525kHz ~12,160kHz 128ch 5kHz 10.71MHz
21m 13,375kHz ~14,010kHz 10.71MHz
secu (eee
19m | 14,975kHz~15,610kHz 10.71MHz
16m | 17,475kHz~18,110kHz 10.71MHz
13m_—_| 21,325kHz~21,960kHz 10.71MHz
lim | 25,475kHz~26,100kHz 10.71MHz
87.50MHz~108.00MHz 10.7MHz
peas
76.00MHz ~108.00MHz 10.7MHz
NOTE:
LW
and
MW1
(or
MW2)
bands
are
taken
into
a
single
band
in
the
yPD1715G-529
((uPD1715G-543)).
3kHz 10.71MHz
((__)): Italian model
*] : Italian model has no 90m band.
