F-7800
|

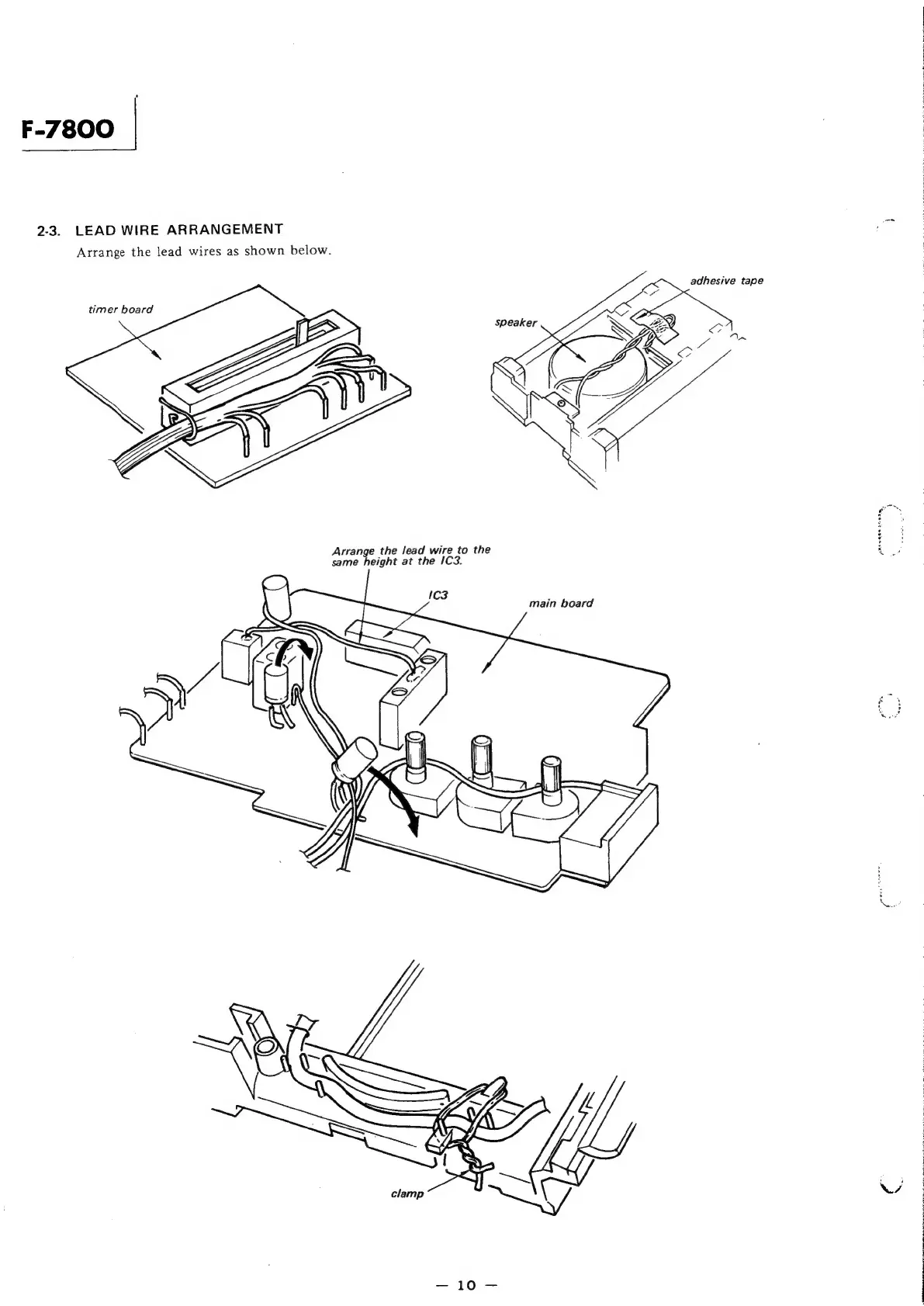

2-3.
LEAD
WIRE
ARRANGEMENT
Arrange
the
lead
wires
as
shown
below.
adhesive
tape
aranie
the
lead wire
to
the
same
height
at
the
IC3.
main
board
w/
