Sony ICF-990L - Section 5 Exploded Views; Cabinet Section

ICF-880L

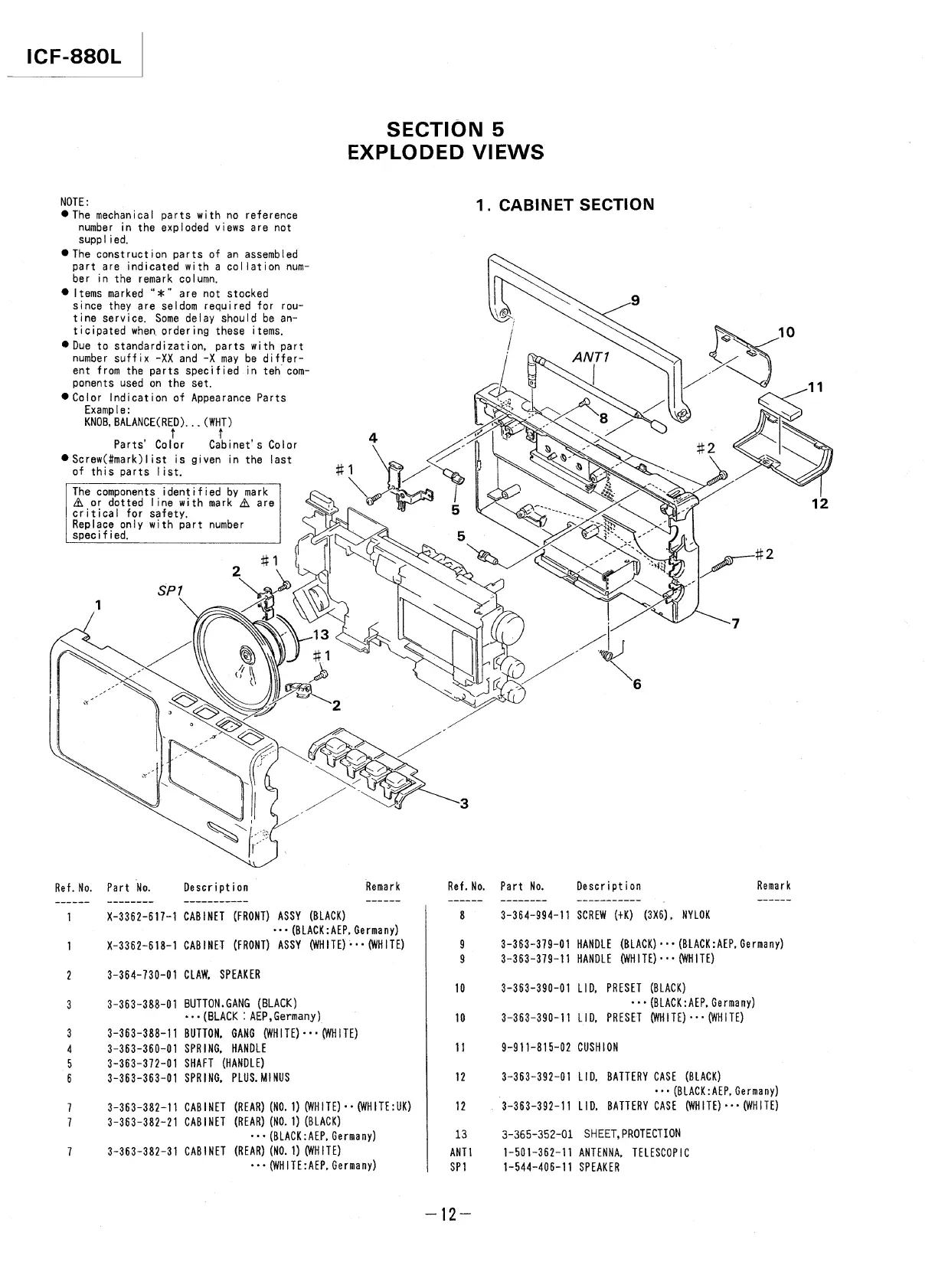

SECTION 5
EXPLODED VIEWS
NOTE:
1.
CABINET
SECTION
@® The mechanical parts with no reference
number in the exploded views are not
supp! ied
@ The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
® Items marked “*” are not stocked
since they are seldom required for rou-
tine service. Some delay should be an-
ticipated when ordering these items.
® Due to standardization, parts with part
number suffix -XX and -X may be differ-
ent from the parts specified.in teh com-
ponents used on the set.
@ Color Indication of Appearance Parts
Example:
KNOB, BALANCE(RED). .. (WHT)
Parts’ Color Cabinet's Color
@ Screw(#mark)list is given in the last
of this parts list.
The components identified by mark
A or dotted line with mark A are
critical for safety.
Replace only with part number
speci fied,
Ref. No. Part No. Remark Ref. No. Part No. Description Remark
1 X-3362-617-1 CABINET (FRONT) ASSY (BLACK) 8 3-364-994-11 SCREW (+K) (3X6), NYLOK
+++ (BLACK: AEP, Germany)
1 X-3362-618-1 CABINET (FRONT) ASSY (WHITE) +++ (WHITE) 9 3-363-379-01 HANDLE (BLACK) «++ (BLACK:AEP, Germany)
g 3-363-379-11 HANDLE (WHITE) --+ (WHITE)
2 3-364-730-01 CLAW, SPEAKER
10 3-363-390-01 LID, PRESET (BLACK)
3 3-363-388-01 BUTTON.GANG (BLACK) +++ (BLACK: AEP, Germany)
++ (BLACK : AEP, Germany) 10 3-363-390-11 LID, PRESET (WHITE) +--+ (WHITE)
3 3-363-388-11 BUTTON, GANG (WHITE) -:+ (WHITE)
4 3-363-360-01 SPRING, HANDLE im 9-911-815-02 CUSHION
5 3-363-372-01 SHAFT (HANDLE)
6 3~363-363-01 SPRING, PLUS. MINUS 12 3-363-392-01 LID, BATTERY CASE (BLACK)
»++ (BLACK :AEP, Germany)
7 3-363-382-11 CABINET (REAR) (NO. 1) (WHITE) - > (WHITE: UK) 12 _ 3-363-392-11 LID, BATTERY CASE (WHITE) +--+ (WHITE)
7 3-363-382-21 CABINET (REAR) (NO. 1) (BLACK)
-++ (BLACK: AEP, Germany) 13 3-365-352-01 SHEET, PROTECTION
7 3-363-382-31 CABINET (REAR) (NO. 1) (WHITE) ANTI 1-501-362-11 ANTENNA, TELESCOPIC
+++ (WHITE:AEP, Germany) SP 1-544-406-11 SPEAKER
