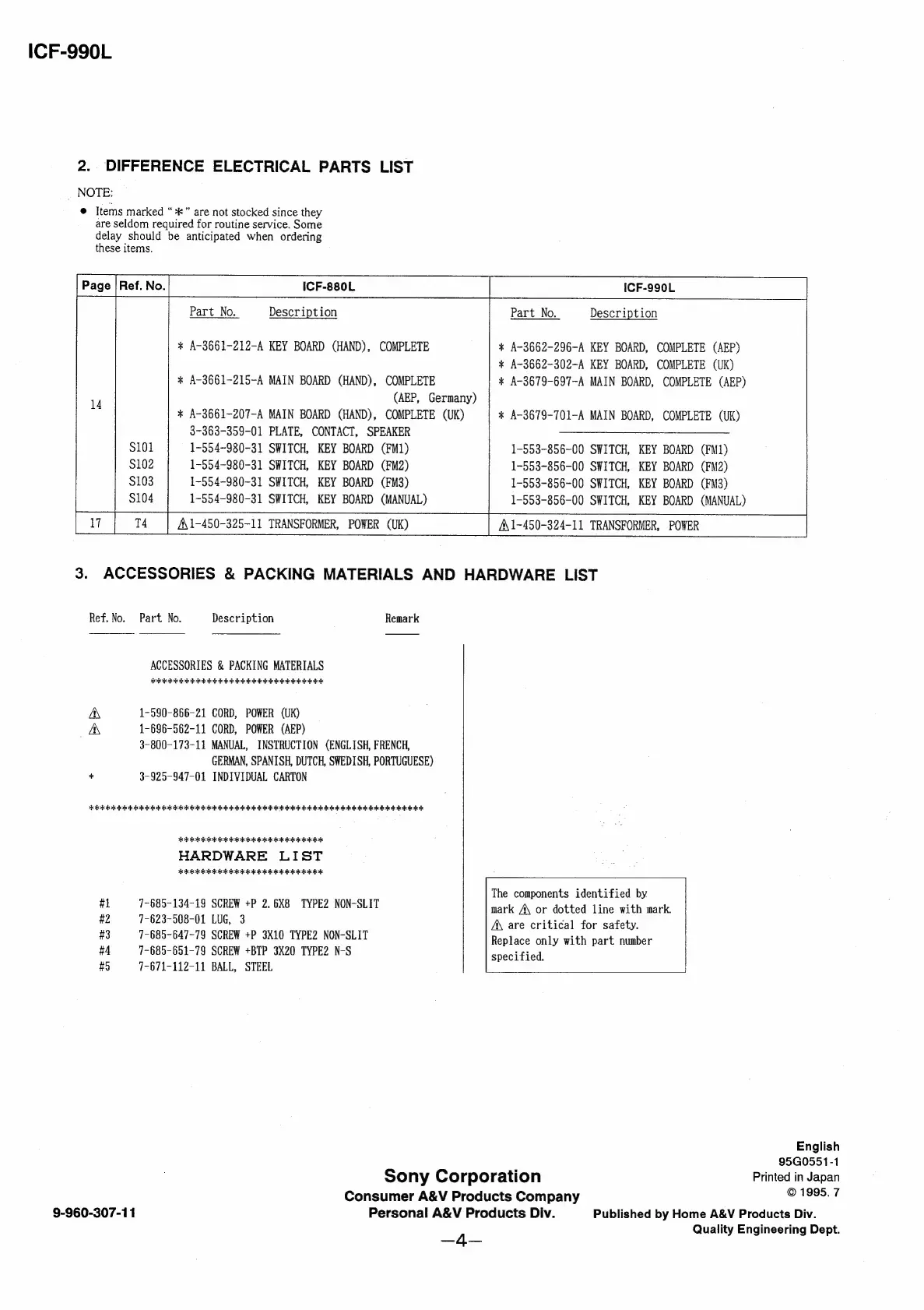

ICF-990L
2. DIFFERENCE ELECTRICAL PARTS LIST
_ NOTE:
@ Items marked “**” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
ICF-880L
Part No. Description
Part No. Description
* A-3661-212-A KEY BOARD (HAND), COMPLETE
* A-3661-215-A MAIN BOARD (HAND), COMPLETE
(AEP, Germany)
* A-3661-207-A MAIN BOARD (HAND), COMPLETE (UK)
3-363-359-01 PLATE, CONTACT, SPEAKER
1-554-980-31 SWITCH, KEY BOARD (FM1)
1-554-980-31 SWITCH, KEY BOARD (FM2)
1-554-980-31 SWITCH, KEY BOARD (FM3)
1-554-980-31 SWITCH, KEY BOARD (MANUAL)
A\1-450-325-11 TRANSFORMER, POWER (UK)
3. ACCESSORIES & PACKING MATERIALS AND HARDWARE LIST
S101
Ref. No. Part No. Description Remark
ACCESSORIES & PACKING MATERIALS
A oe iooiok dtotitok tok kkk tck dokok
AN 1-590-866-21 CORD, POWER (UK)
A 1-696-562-11 CORD, POWER (AEP)
3-800-173-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
GERMAN, SPANISH, DUTCH, SWEDISH, PORTUGUESE)
* 3-925-947-01 INDIVIDUAL CARTON
BAR AR AO EAE EAA AA EA EERE EAE NARA RTARTA ITA RARE ARIE
FO OR ok kok fo ake ok ook ek ge tok yooh
HARDWARE LIST
Se eo eo eto bok tok top
ICF-990L
* A-3662-296-A KEY BOARD, COMPLETE (AEP)
* A-3662-302-A KEY BOARD, COMPLETE (UK)
* A-3679-697-A MAIN BOARD, COMPLETE (AEP)
* A-3679-701-A MAIN BOARD, COMPLETE (UK)
1-553-856-00 SWITCH, KEY BOARD (FM1)
1-553-856-00 SWITCH, KEY BOARD (FM2)
1-553-856-00 SWITCH, KEY BOARD (FM3)
1-553-856-00 SWITCH, KEY BOARD (MANUAL)
A\1-450-324-11 TRANSFORMER, POWER
The components identified by
#1 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
#2 7-623-508-01 LUG, 3
#3 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
#4 7-685-651-79 SCREW +BIP 3X20 TYPE2 N-S
#5 7-671-112-11 BALL, STEEL
A\ are critical for safety.
Replace only with part number
specified.
mark A\ or dotted line with mark.
English
95G0551-1
Sony Corporation Printed in Japan
Consumer A&V Products Company © 1995. 7
9-960-307-11 Personal A&V Products Div. Published by Home A&V Products Div.
